Three-phase motor 11Kw/15CV 1500 rpm Flange B5 - IE2 - IE3 - Siemens
Three-phase motor 11Kw/15CV 1500 rpm Flange B5 - IE2 - IE3 - Siemens

Three-phase motor 11Kw-15HP 1500 rpm Flange B5 IE3 - INNOMOTICS

Shipping time: 2-3 days
€2,079.70 Tax included

1733.08 tax excl.

E10031DB24FA4

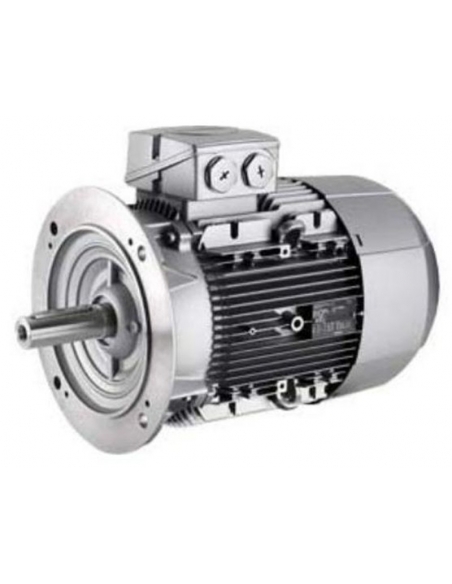

Three-phase electric motor 11kW (15CV) asynchronous 400/690Vac. 4 Pole 1500 rpm B5 flange. Energy rating IE3.

Manufactured by INNOMOTICS, SIMOTICS GP series in aluminum.

Ref: 1LE1003-1DB2-4FA4 .

INNOMOTICS

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Three-phase electric motor 11kW (15CV) asynchronous 400/690Vac 1500 rpm B5 flange, aluminum housing.

Manufactured by INNOMOTICS, SIMOTICS GP aluminum series.

fEATURES:

  • Manufacturer: INNOMOTICS.
  • Series: SIMOTICS GP.
  • Part number: 1LE1003-1DB2-4FA4.
  • Motor type: squirrel cage asynchronous.
  • Voltage: 400/690Vac V.III 50/60Hz.
  • Power: 11 Kw (15 HP).
  • Current: 21/36,37A.
  • number of poles: 4.
  • Rpm: 1500(1400).
  • Energy rating: IE3.
  • Degree of protection: IP55.
  • Type of fastening: B5 flange.
  • shaft diameter: Ø42mm
  • Diameter of flange: Ø350mm
  • Case size: 160.
  • Color: Gray.
  • Housing materialaluminum.
  • Weight: 71 Kg.
  • Marked CE.

Material for professional use, install in compliance with current regulations at the place of installation.
