Three-phase to single-phase transformer 6 KVA 400/230Vac with case

Special manufacturing material
€634.39 Tax included

528.66 tax excl.

TRTM6

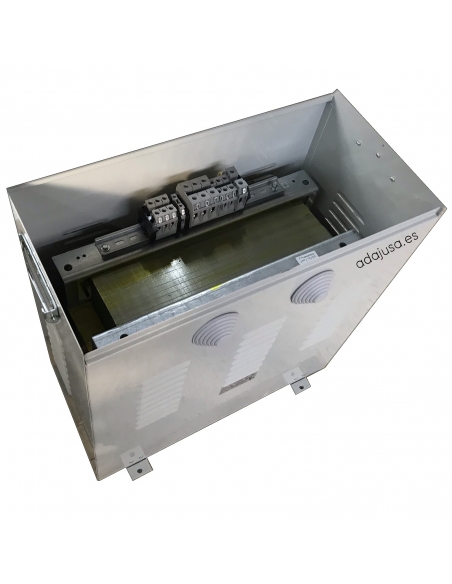

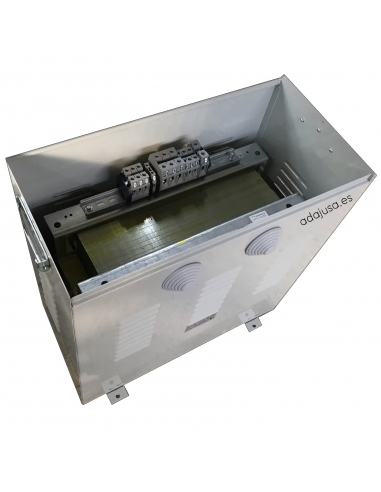

Three-phase to single-phase 6.3kVAtransformer with IP23 metal enclosure, allows the adaptation of three-phase to single-phase lines and 400Vac to 230Vac voltages. It provides galvanic isolation.

This type of transformers are not reversible, i.e. they cannot transform a single-phase line to three-phase.

Reference: TRTM6,3

Esquema_Transformador_trifasico_monofasico

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

1 question about the product
Privacy
Shipments
Returns


Transformer adapter for three-phase 400Vac to single-phase 230Vac lines, galvanic isolation, dry type.

Phase distribution of 50%-25%-25% load. They are supplied in a metal box that provides an IP-23 insulation degree, connection by means of terminals. No overload protection circuit is incorporated.

Manufactured with low-loss magnetic sheet and with wire windings of copper, providing high performance.

Attention: This type of transformers are not reversible, i.e., they cannot transform a single-phase line into a three-phase line.

Technical characteristics:


  • Reference: TRTM6,3
  • Primary voltage: three-phase 400Vac.
  • Secondary voltage: Single-phase 230Vac.
  • Power: 6,3KVA.
  • Frequency: 50/60Hz.
  • Windings: Thermal class N 200ºC.
  • Test voltage: 5KV between windings and 3KV between windings and ground.
  • Insulators: Thermal class F 155ºC and H 180ºC.
  • Protection: IP-23 (Metal enclosure).
  • Ambient temperature: TA=25ºC.
  • Cooling: ANAN (Natural air).
  • Certification: UNE-EN 61558, UNE-EN 60076.

Dimensiones_transformador_trifasico_monofasico

The transformer is supplied without any type of overload protection, it is mandatory to install them to avoid overloading the transformer. The power and current indicated are apparent, the active current provided by the transformer will depend on the power factor of the connected load.
Material for professional use, install in compliance with the regulations in force at the place of installation.

Questions

Question
La corrente in uscita del trasfomatore che è priva di neutro fornito dalla rete elettrica può alimentare una caldaia ,una pompa di calore ,un qualsiasi carico dove è ben distinto FASE e NEUTRO ? grazie
Answer

Bonjour,

Portant un piquet de terre indépendant du reste de l'installation, cette borne peut être considérée comme neutre.

Mais il est important qu'avant de procéder à l'installation, vérifiez la réglementation en vigueur dans votre pays,

Salutations

ADAJUSA

Ronco Roberto on 10/04/2022 17:19:58
