Three-phase to single-phase transformer 40 KVA 400/230Vac with enclosure

Special manufacturing material, shipping 2-5 days
€2,307.06 Tax included

€1,906.66 tax excl.

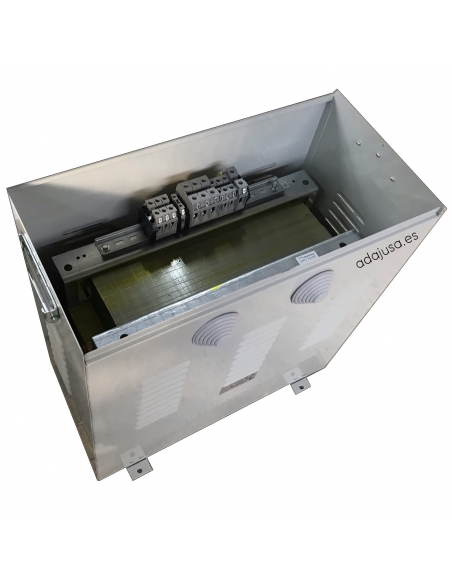

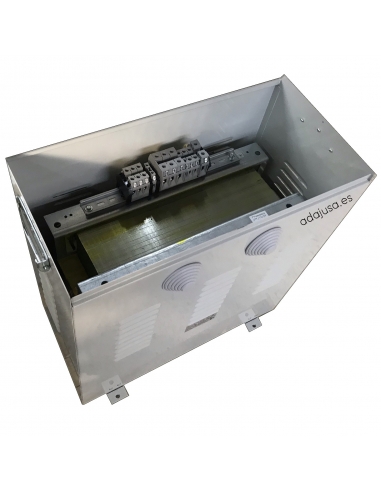

Three-phase to single-phase 40kVAtransformer with IP23 metal enclosure, allows the adaptation of three-phase to single-phase lines and voltages 400Vac to 230Vac. It provides galvanic separation.

This type of transformers are not reversible, i.e. they cannot transform a single-phase line to three-phase.

Reference: TRTM40

Esquema_Transformador_trifasico_monofasico

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!


Transformer adapter for three-phase 400Vac to single-phase 230Vac lines, galvanic isolation, dry type.

Phase distribution of 50%-25%-25% load. They are supplied in a metal box that provides an IP-23 insulation degree, connection by means of terminals. No overload protection circuit is incorporated.

Manufactured with low loss magnetic sheet and with wire windings of copper, providing high performance.

Attention: This type of transformers are not reversible, i.e. they cannot transform a single-phase line into a three-phase line.

Technical characteristics:


  • Reference: TRTM40
  • Windings: Thermal class N 200ºC.
  • Primary voltage: three-phase 400Vac.
  • Secondary voltage: Single-phase 230Vac.
  • Power: 40KVA.
  • Frequency: 50/60Hz.
  • Test voltage: 5KV between windings and 3KV between windings and ground.
  • Insulation: Thermal class F 155ºC and H 180ºC.
  • Protection: IP-23 (Metal enclosure).
  • Ambient temperature: TA=25ºC.
  • Cooling: ANAN (Natural air).
  • Certification: UNE-EN 61558, UNE-EN 60076

Dimensiones_transformador_trifasico_monofasico

The transformer is supplied without any type of overload protection, it is mandatory to install them to avoid overloading the transformer. The power and current indicated are apparent, the active current provided by the transformer will depend on the power factor of the connected load.
Material for professional use, install in compliance with the regulations in force at the place of installation.
