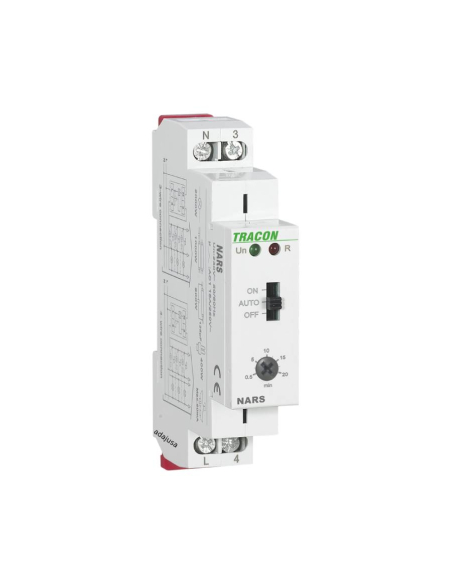

Staircase minute Timer
Staircase minute Timer

Staircase minute Timer

€24.38 Tax included

€20.15 tax excl.

Staircase Timer with adjustable time from 30 seconds to 20 minutes. Operation in automatic mode as a timer or in manual mode for permanent on/off. Operating voltage 230Vac. DIN rail mounting.

Valid for 3 and 4 wire connections.


Reference: NARS


Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

No queries yet, leave the first!


Staircase minute Timer with selectable time setting between 30 seconds and 20 minutes. Its main application is to control the lighting turn-on time in hallways, entrances, stairs, rooms or fan timers in bathrooms; Its operating mode is based on turning on the lighting after receiving an external pulse and then turning it off once the previously pre-established time has elapsed.

It also allows, using a switch located on the front, to select the lighting operating mode: permanent on or permanent off. These functions are useful when continuous power on for a long period of time is required, for example for maintenance work, or for permanent or prolonged power off.





This timer allows the connection of a maximum of 50 pushbuttons, and includes light status indicators. Valid for both 3 and 4 wire installations.




Technical characteristics:

  • Manufacturer/Supplier: Tracon
  • Reference: NARS
  • Supply voltage: 220 - 240Vac
  • Rated insulation voltage (Ui): 500V
  • Resistive load contact capacity (cosϕ = 1): 16 A
  • Inductive load contact capacity (cosϕ =0.6): 1.7 A
  • Maximum load with incandescent lamp: 2000W
  • Maximum load with fluorescent lamp: 400 VA
  • Maximum LED load: 400W
  • Timing range: 0.5 - 20min (0.5 / 5 / 10 / 15 / 20 minutes)
  • Maximum number of buttons: 50
  • Circuit push button length: Max. 250m
  • Installation: 3 wires / 4 wires
  • LED status indicator
  • Operating temperature: -10ºC to +55ºC
  • Mounting: DIN Rail
  • Protection grade: IP20
  • Regulations: EN 60669-2, EN 60730




Dimensions:

NARSDIMENSIONS



NARSESCHEMATYPICAL


Material for professional use, install in compliance with the regulations in force at the installation site.
