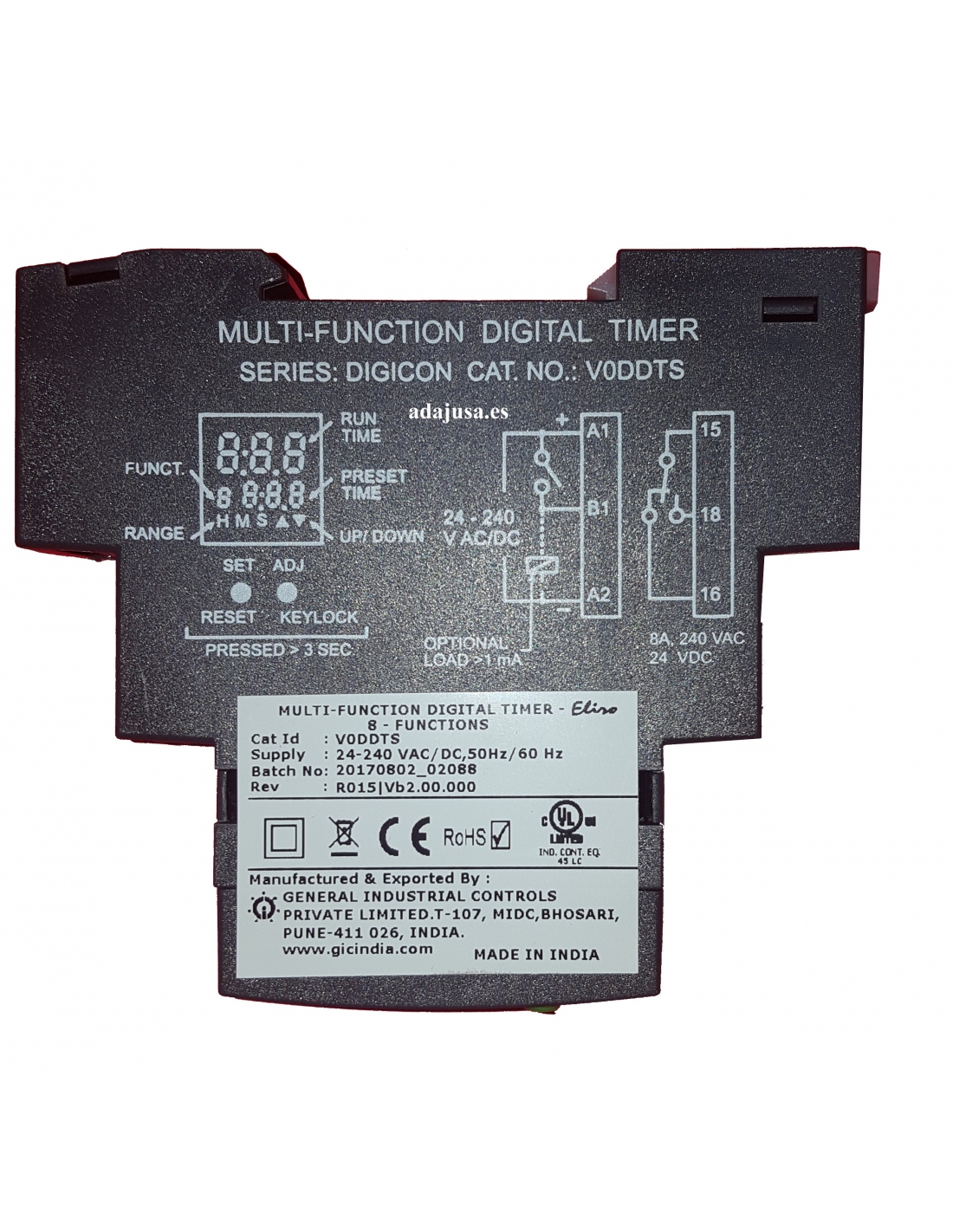

Digital multifunction timer Rail DIN

Name: Digital multifunction timer Rail DIN
Brand: Generico-VMC
SKU: V0DDTS
Price: 60.9477 EUR
Availability: InStock

€60.95 Tax included

€50.37 tax excl.

Multifunction timer (Multivoltage, multi-fast and multimode), with digital adjustment and DIN rail mounting. 17.5mm width.

3-digit LCD programming screen.

Manufacturer: GIC.

Ref: V0DDTS

Simbolo electrico rele conmutado

Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

No queries yet, leave the first!

Privacy

Shipments

Returns

Digital multifunction timer, narrow profile (17.5mm) and DIN rail mounting. With a switched output contact. As a main feature we can point out the wide supply voltage range, regulation time range and operating modes. It has a luminous status indication.

Supply voltage range:

AC or continuous current: 24V to 240V.

Time Range:

0.1s to 999h

Technical details:

Manufacturer: GIC.
Model: V0DDTS.
Working voltage: Multivoltage in continuous and alternating current.
Operating modes: 8.
Time regulation range: 0.1s to 999 h.
Output contact type: 1 switched (NA/NC).
Output contacts capacity: 8A (250Vac, cos-1).
Nominal current (Ie): 1.5A.
3-digit LCD display (preset time and running time).
Option to select up/down counter.
Tamper-proof with key lock function.
Status indication: Red LED.
Mounting: DIN rail.
Width: 1 module (17.5mm).
Degree of protection:

Enclosure: IP30.
Terminals: IP20.

Regulations: IEC/EN 60947-5-1; 61000-3-2.

Connection Scheme:

Diagrama conexionado V0DDTS

Time diagram, operating mode:

To the connection (to work).
Ciclico OFF/ON.
Cycle ON/OFF.
ON/OFF signal.
To disconnection (at rest).
Intevalo.
OFF/ON signal.
Momentary output pulse.

Diagrama de tiempos V0DDTS

Diagrama de tiempos temporizador GIC

Dimensions:

Dimensiones del temporizador V0DDTS

Material for professional use, install in compliance with the regulations in force at the installation site.

Instructions V0DDTS

V0DDTS timer instructions

Download (919.64KB)
