2 3/2-way T-valve with pneumatic rotary actuator - Metal Work

€831.64 Tax included

€693.03 tax excl.

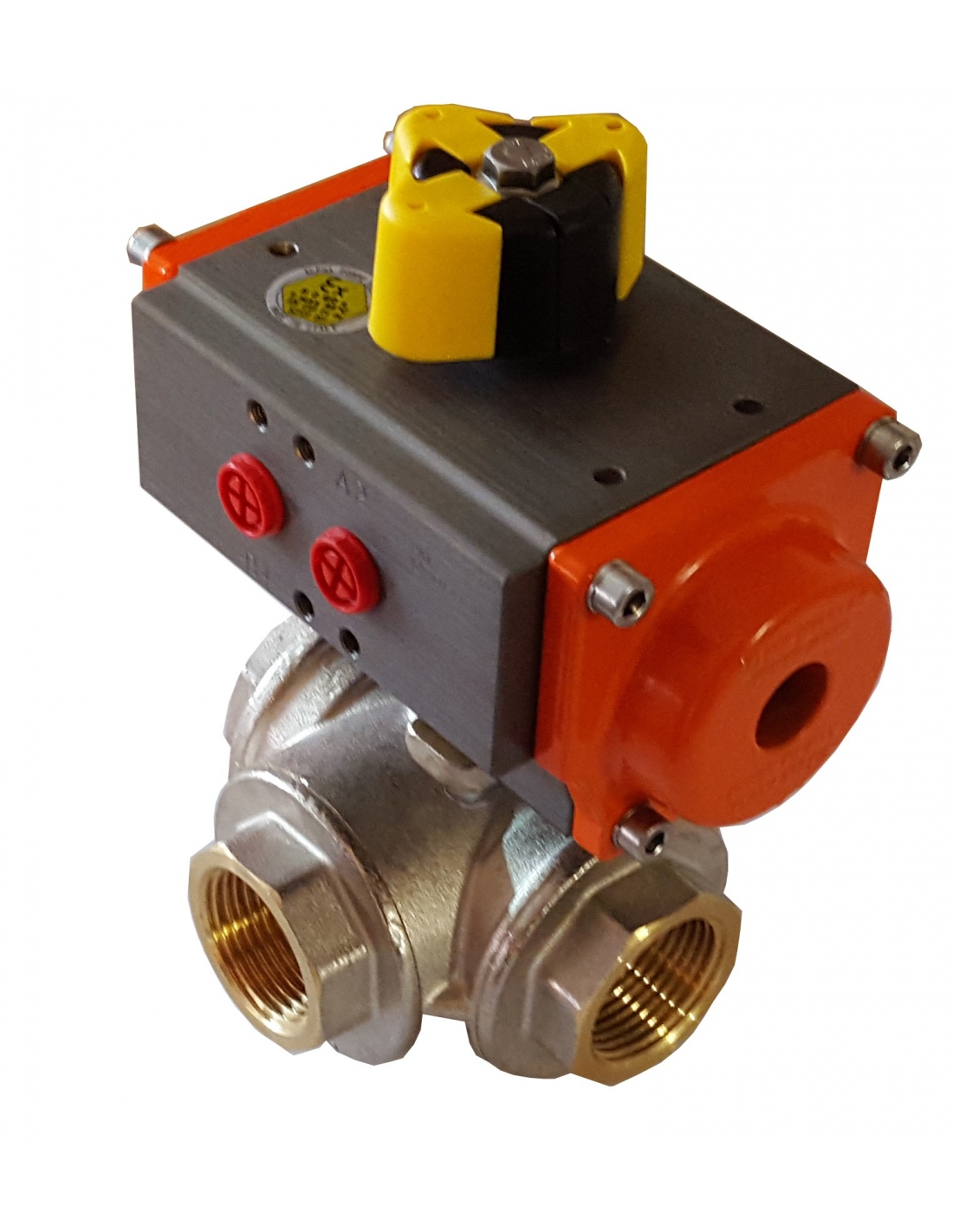

2" dial valve, 3-way 2-position, 3/2, with "T" configuration, with double-acting pneumatic rotary actuator. For control of air, gases or non-corrosive and non-flammable fluids. Valve body in nickel-plated brass.

The valve has a manual activation control.

Valves with ATEX certification.

Reference: VB3T2LB050063D / W0900300138

Simbolo neumatico actuador con valvula doble efectoPictograma ATEX

Logotipo metal work

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


2" dial valve, 3 ways 2 positions, 3/2, with "T" valve configuration, with double-acting pneumatic rotary actuator. For control of air, gases or non-corrosive and non-flammable fluids.

On the pneumatic actuator there is a control to be able to act the valve manually.

The configuration of the valve is in "T", in one position, the valve allows the passage from 1 to 2 or 1 to 1 remaining the 3 closed; in the other position, the passage is allowed between all the tracks.

Valves with ATEX certification.

Diagrama válvula en T de 3 Vías

Specifications:

  • Assembly manufacturer: Metal Work.
  • Manufacturer reference: VB3T2LB050063D / W0900300138
  • Actuator type: Ø63 double pneumatic effect.
  • Valve type: 3 ways 2 positions (3/2).
  • Valve configuration: in "T".
  • Thread type: G 2" female.
  • Valve body: nickel-plated OT58 brass.
  • Dial: Chrome OT58 brass.
  • Joints: PTFE.
  • Nominal pressure PN: 16 bar
  • Standard: ISO 5211 (direct mounting to the actuator)
  • Temperature: -20ºC to +80ºC

Dimensiones valvulas en T para accionadores rotativos

Dimensiones valvulas con actuador neumático de 3 vías

Esquema montaje válvula 3 vías en L con actuador

Material for professional use, install in compliance with the regulations in force at the place of installation.
