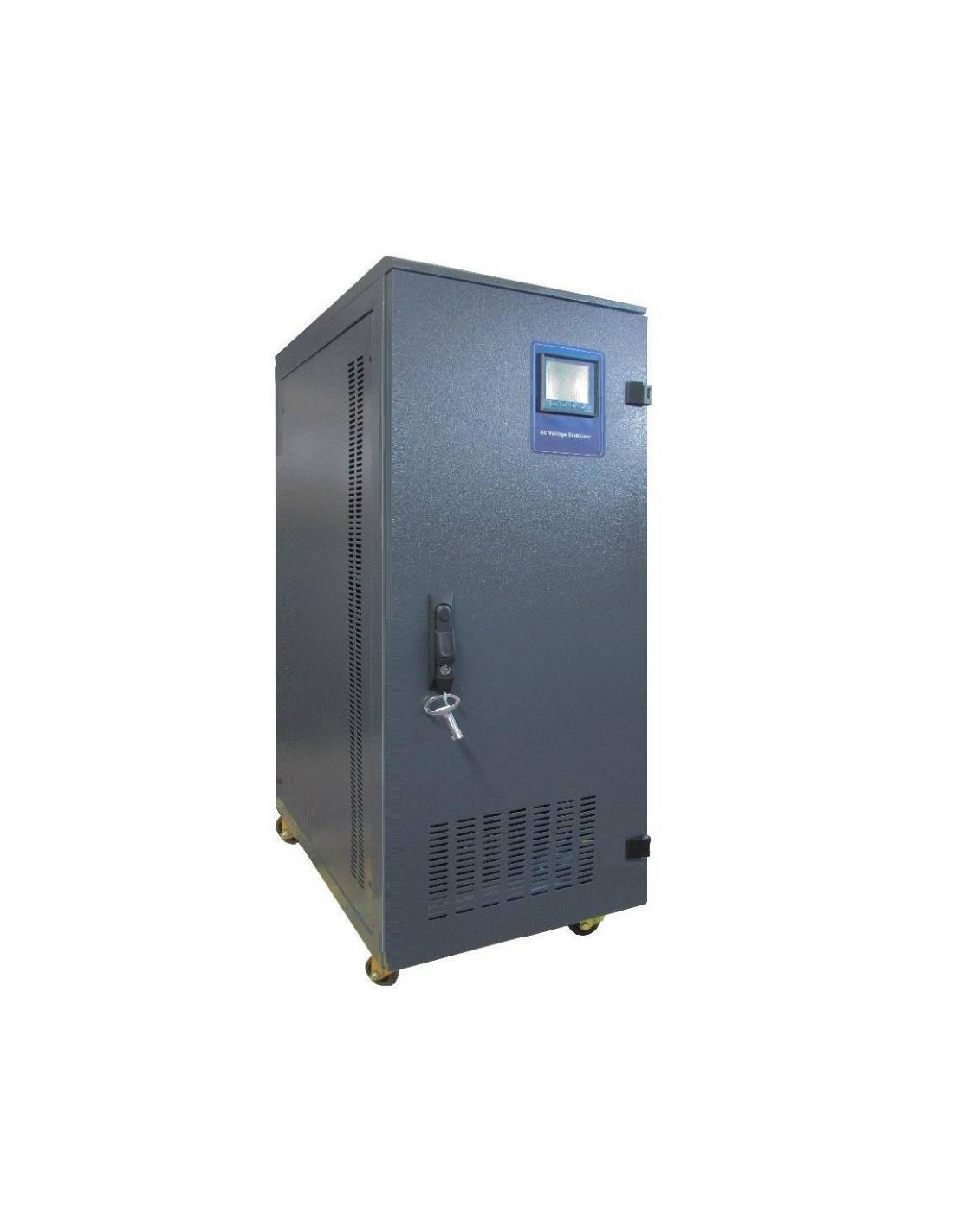

Three-phase stabilizer with servomotor 22.5kVA (18kW)
Three-phase stabilizer with servomotor 22.5kVA (18kW)

Three-phase stabilizer with servomotor 22.5kVA (18kW)

€2,631.75 Tax included

€2,175.00 tax excl.

Three-phase voltage stabilizer of 22.5kVA (18kW) and 400Vac output. Servomotor stabilizer with independent regulation per phase to control the input mains voltage within regulation margins, providing a constant output voltage to supply any load with a clean, stable and safe voltage.

Automatic regulation of the mains input voltage, stabilizes the output voltage within ±1% to supply any critical load with a fully controlled and stabilized voltage by providing a constant voltage. It offers protection against overvoltages and very high voltage peaks from the mains without distorting the output waveform.


Part number: SRV-22,5K

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.
Out of stock

No queries yet, leave the first!

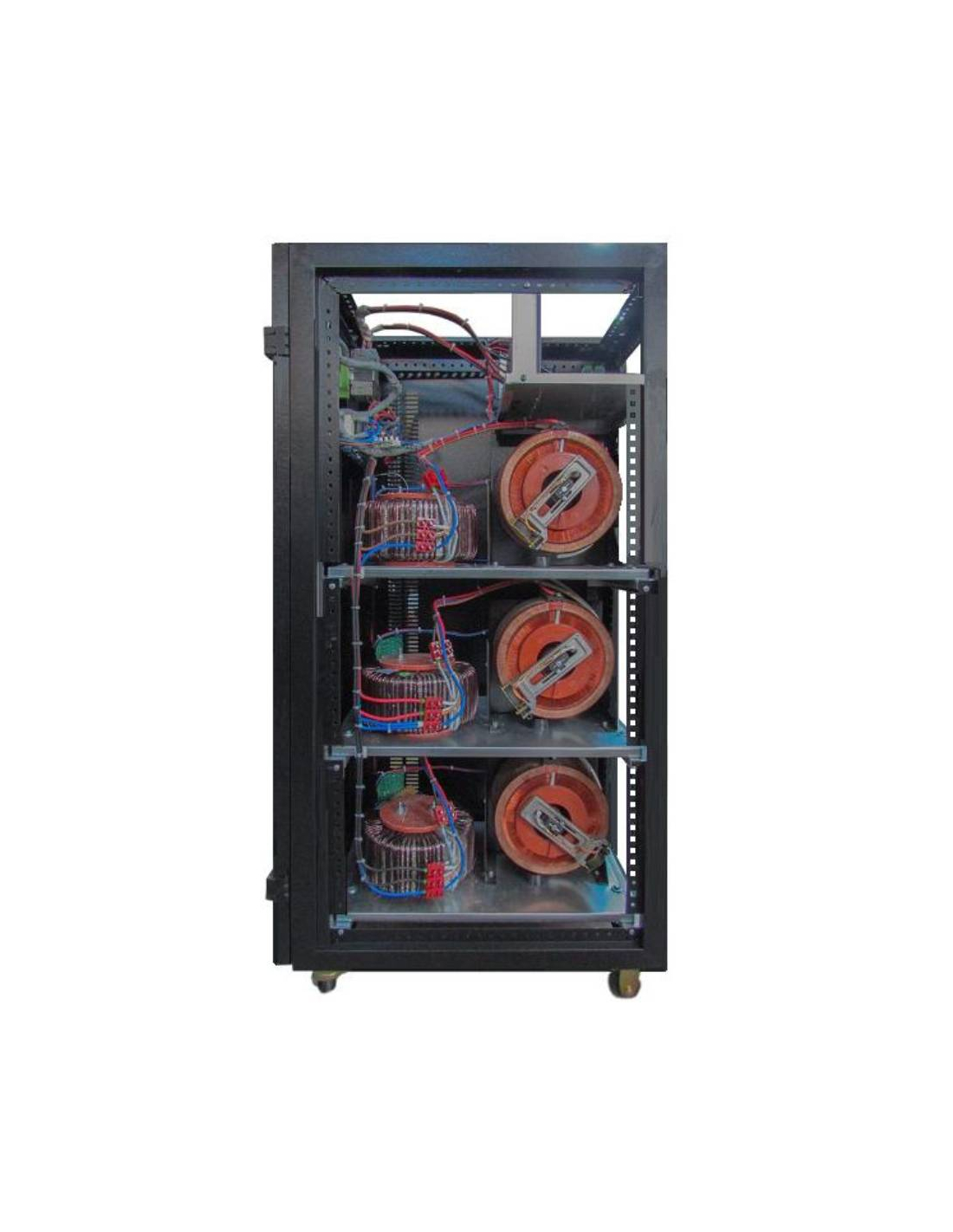

Three-phase voltage stabilizer of 22.5kVA (18kW) and 400Vac output, electromechanical stabilizer driven by servomotor with independent regulation per phase for the control and regulation of voltage drops and rises of the network, providing a constant output voltage.


The equipment stabilizes the input mains voltage within very narrow regulation margins to supply any load at its output with a clean, stable and safe voltage. It does this by continuously monitoring and sampling the input and output voltages to achieve the proper voltage to supply the connected load.

This equipment operates fully automatically for voltage regulation without user intervention, which is achieved by continuously measuring the mains input voltage and automatically performing the necessary step-up/step-down operations to provide the constant voltage required for normal operation. The integrated electronic control circuit measures the input voltage and decides what the stabilized output voltage should be by comparing it with an internal reference sample value and the applied load. That is why the stabilizers are used to power equipment sensitive to voltage variations or to solve problems in installations with large voltage variations due to problems in the supply line.


It incorporates a manual Bypass for maintenance or to continue feeding the loads in case of equipment failure, it does not distort the output sine wave. The Manual Bypass Switch should only be connected in case of equipment failure, and thus obtain unregulated output power directly from the input mains, and for this purpose the other switch must first be disconnected.



Among its main applications we can highlight the computer, audio/video equipment, telecommunication systems, medical and clinical analysis equipment, security systems and surveillance cameras, critical electronic circuits and boards, lighting systems, household appliances, home automation, etc..

Other application sectors are in industry, telecommunications, power supply companies, military applications, stock exchange and banks, hospitals, supermarkets, shopping malls, financial institutions, airports, locomotive industries, trains, railroads, shipping industries, production lines and automatic calculation, textile and paper industries, ... and in general in all those applications that have a very critical load to feed and need to have a stable, clean and safe power supply network.


General characteristics:

  • Independent regulation control per phase
  • Mains voltage regulation within 1%
  • Allows connection of non-linear loads
  • Very wide actuation window in terms of power and voltage
  • Fast response
  • Load transfer to Bypass via a pole switch
  • High reliability due to intelligent microprocessor control
  • High efficiency
  • Overload protection
  • Digital LCD panel with input and output phase voltages (74x74)
  • Display of input and output status and measurements
  • Intelligent fan system



Technical characteristics:

  • Manufacturer/Supplier: Aline
  • Part number: SRV-22,5K
  • Power rating: 22,5kVA (22500VA - 18kW)
  • Input voltage range: Three phase 275V-450V
  • Frequency: 47-65Hz
  • Input protection: Overcurrent / High and low voltage
  • Output voltage range: Three phase at 380V/400V/415V ± 1%
  • Overload: 200% for 10 seconds
  • Correction speed: -90Volts/sec
  • Output protection: Load protection by opening the circuit due to overload or short circuit
  • Power factor: 0.8
  • Working temperature: -10º ~ +50ºC
  • Degree of protection: IP20
  • Dimensions: 405x640x1170mm
  • Weight: 125Kg
  • Standards: CE, TUV AUSTRIA HELLAS (ISO 9001)



Note: The power in Watts has been calculated based on an installation with a power factor of 0.8. For installations with a power factor lower than 0.8 the power in Watts will always be lower than indicated and will have to be recalculated.


Note: It is highly recommended the installation of a circuit breaker at the output to ensure that the consumption demand never exceeds the capacity of the equipment.






For further information, you can download the technical data sheet by clicking on the "Attachments" tab.

Material for professional use, it must be installed by qualified personnel respecting the regulations in force at the place of installation.
