12mm diameter transits fitting Series 55000 -...
12mm diameter transits fitting Series 55000 - Aignep

12mm diameter transits fitting Series 55000 - Aignep

€6.97 Tax included

€5.76 tax excl.

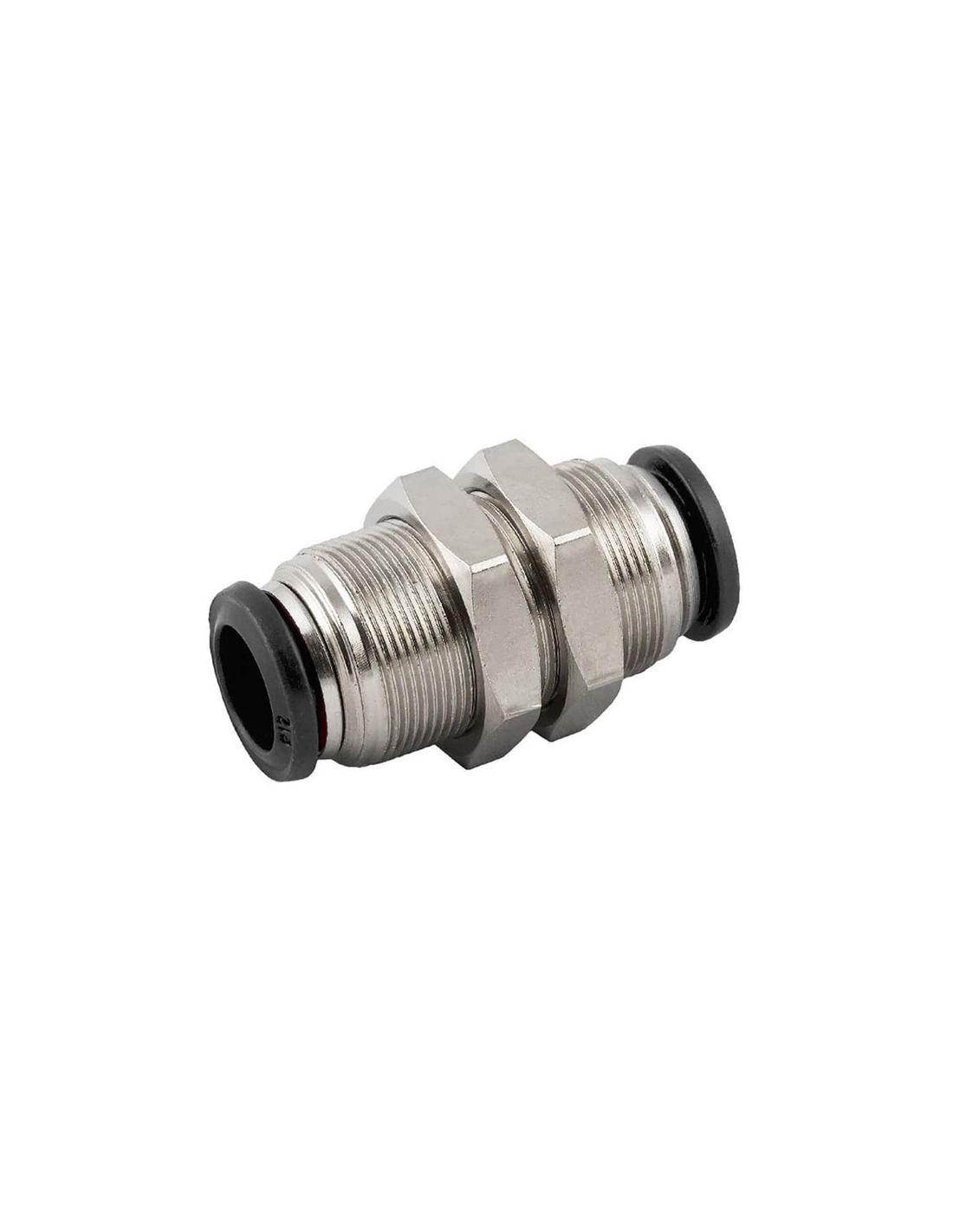

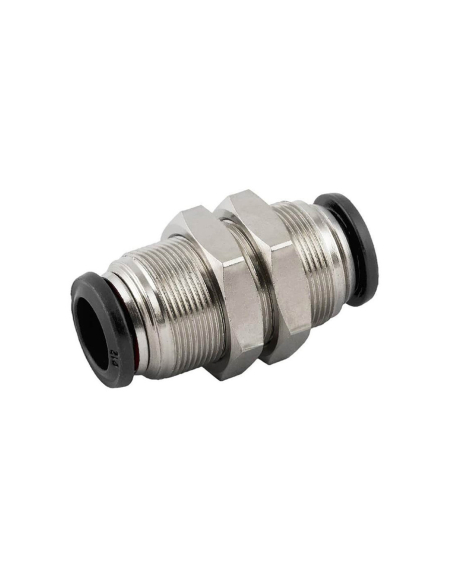

transits fitting for 12mm tube, made of chrome-plated brass and the tube extraction ring is made of acetal resin. Very simple and effective connection that allows reconnection thousands of times without compromising perfect pneumatic and mechanical retention .

Series: 55000
Reference: 50050N 12




aignep
normative


Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

No queries yet, leave the first!


transits fitting for 12mm tube. Threaded body with M22x1 thread with metal nuts included , made of chrome-plated brass and the tube extraction ring in acetal resin. Very simple and effective connection that allows reconnection thousands of times without compromising perfect pneumatic and mechanical retention ; The clamping spring clamps the tube without engraving or deforming it, thus allowing greater simplicity in the operation of connecting or disconnecting the tube fitting.

This fitting is suitable for robotics, automotive, textile industry, packaging, handling, compressed air circuits, industrial water and vacuum.


Technical characteristics:

  • Manufacturer: Aignep .
  • Reference: 50050N 12
  • Thread: M22x1
  • Number of nuts: 2
  • Tube outer diameter: 12mm
  • Fluid: vacuum, compressed air and water
  • Material: Chromed brass
  • Tube extractor ring: acetal resin
  • retention gasket: NBR
  • Clamping spring: stainless steel
  • Pressure: -0.99 bar at 20 bar
  • Working temperature: -20ºC to +80ºC
  • Thread regulations:
    • Conical gas conforming to ISO 7.1, BS 21, DIN 2999
    • Cylindrical gas conforming to ISO 228 Class A
    • ISO R/262 compliant metric

50050NEsq

50050NTab

Material for professional use, install in compliance with the regulations in force at the installation site.
