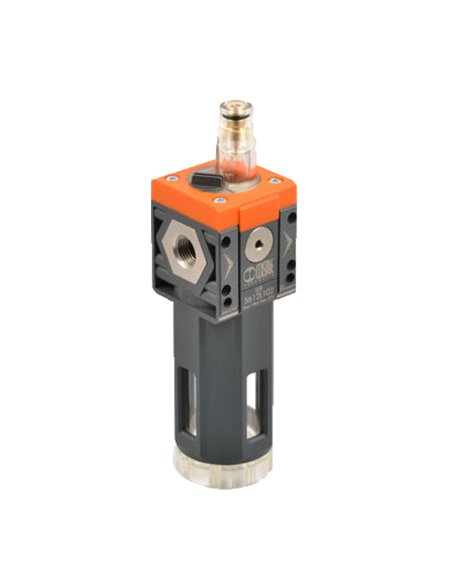

Lubricator 3/4 technopolymer
Lubricator 3/4 technopolymer

Lubricator 3/4 technopolymer Syntesi- Metal Work

€56.22 Tax included

46.85 tax excl.

5625L105

Pneumatic lubricating vessel of 3/4, in technopolymer. Syntesi Group.

Logotipo Metal Work

Reference: 5625L105
Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


3/4" size 2 pneumatic lubricating vessel for coupled to filtration group or stand-alone use. The lubricating vessel is made of high strength technopolymer.

  • - Manufacturer: Metal Work
  • - Manufacturer's reference: 5625L105.
  • - Thread size: 3/4".
  • - Group size: size 2.
  • - Maximum inlet pressure: 13 bar.
  • - Vessel capacity: 130 cm3
  • - Flow rate at 6 bar (Δ P1bar): 6100 Nl/min.
  • - Wall fixing screws: M5.
  • - Mounting position: Vertical.
  • - Working temperature: -10 to +50oC.

For other sizes or references: consult.

Dimensiones lubricador serie syntesi

Questions

Be the first to ask a question about this product!

Question about the product

* Required fields
(read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

You might also like

Filter + Lubricator T2 RMSA Syntesi - Metal Work - ADAJUSA
3/4 FR-L filtering groups

Pneumatic filtration group 3/4 regulation 0-12 bar semi-automatic purge Syntesi series...

Metal Work
5625B26L105
€125.84 (€104.87 tax excl.)
3/4 filter group, 3/4 maintenance unit for pneumatic applications, semi-automatic drain, compact size (SY2) in 2 modules (FR+L) and regulation range 0-12 kg/cm2. These filter groups are made of technopolymer and nickel-plated brass with excellent resistance to corrosion. European manufacturing.Series: SynthesisReference: 5625B26L105 Representative...
Filter-regulator 3/4 technopolymer
3/4 FR-L filtering groups

Pneumatic filter-regulator 3/4 0-12 bar semi-automatic drain Syntesi series - Metal Work

Metal Work
5625B265
€68.40 (€57.00 tax excl.)
Filter with 3/4 pneumatic pressure regulator, 3/4 maintenance unit for pneumatic applications, semi-automatic drain, compact size (SY2) and regulation range 0-12 kg/cm2, filtration degree of 20 μm. These filter groups are made of technopolymer and nickel-plated brass with excellent resistance to corrosion. European manufacturing. Series:...
Pressure gauge 50 1/8 0-12 Kgr plastic box
Gauges and measurement elements

Manometer 50 1/8 0-12 bar back plastic box - Metal Work

Metal Work
MWMP5318012
€5.66 (€4.72 tax excl.)
Pressure gauge Ø50 with plastic case. Pressure gauge to control the pressure of the machine to be used. Black plastic case and rear connection with G thread 1/8". The internal mechanisms are made of brass and bronze. With metal dial, graduation in bar and psi. Steel needle. Reference: Z33MP5318012 Representative image for illustrative purposes, the...
Pressure regulator 1/4 0-12 bar technopolymer - Metal Work
3/4 FR-L filtering groups

Regulator pressure 3/4 0-12 bar size 2 technopolymer Syntesi - Metal Work

Metal Work
5625R165
€60.28 (€50.23 tax excl.)
Pressure regulator of 3/4 regulation 0-12 Kgrs, body in technopolymer extreme reliability. It allows stability of the outlet pressure to the preset pressure. Possibility of fixing by side drills. Locking system by padlock. Syntesi Group Pressure gauge not included (can be ordered separately).Reference: 5625R165 Representative image for illustrative...
Filter 3/4 20 RMSA Size 2 Syntesi Metal Work - ADAJUSA
3/4 FR-L filtering groups

Filter 3/4 20 microns semi-automatic drain size 2 Syntesi series - Metal Work

Metal Work
5625F205
€54.74 (€45.62 tax excl.)
3/4 filter, with a filtration degree of 20μm and semi-automatic discharge, size 2, for retention of solid or liquid impurities from the air compressor. These filter cups are made of technopolymer and nickel-plated brass with excellent resistance to corrosion. European manufacturing.Series: SynthesisReference: 5625F205Representative image for...

16 other products in the same category:

Pneumatic filter 3/4 20 EVO series semi-automatic purge | Aignep | ADAJUSA | price
3/4 FR-L filtering groups

Filter 3/4 20 microns semi-automatic purge size 3 EVO series - Aignep

Aignep
Y010307201000
€55.64 (€46.37 tax excl.)
3/4 filter, with a filtration degree of 20μm and semi-automatic discharge, size 3, for retention solid or liquid impurities from the air compressor. These filter vessels are made of technopolymer and with metal finishes. Made in Italy.Series: FRL EvoReference: Y010307201000 Representative image for illustrative purposes, the item supplied will correspond...
Pressure Regulator 3/4 0-8 bar Aignep FRL Evo series | ADAJUSA | price
3/4 FR-L filtering groups

Pressure Regulator with pressure gauge and lockable 3/4 0-8 bar size 3 FRL EVO series -...

Aignep
Y020307030000
€67.27 (€56.06 tax excl.)
3/4" pressure Regulator with integrated pressure gauge, range 0-8 bar , size 3, technopolymer body and metal finishes . Allows output pressure stability at the preset pressure . Possibility of fixing by means of side drills. Padlock locking system. Made in Italy.Series: FRL EvoReference: Y020307030000 Representative image for illustrative purposes,...
Pressure gauge for 63mm panel with stand - Metal Work - ADAJUSA Pressure gauge for 63mm panel with stand - Metal Work - ADAJUSA 2
  • Pack
Gauges and measurement elements

Pressure gauge with glycerin 0 - 1.6 bar for 63mm panel with stand - Metal Work

Metal Work
PK-MAN6320G4G1.5SOP
€16.45 (€13.71 tax excl.)
Pressure gauge diameter 63mm with stainless steel case filled with glycerin, pressure indication between 0 and 1,6 bar. Pressure gauge to control the pressure of installations, systems or machines. Stainless steel case with rear connection with G 1/4" thread. The internal mechanisms are made of copper alloy. With metal dial, graduation in bar. Steel...
Pressure gauge for 63mm panel with stand - Metal Work - ADAJUSA Pressure gauge for 63mm panel with stand - Metal Work - ADAJUSA 2
  • Pack
Gauges and measurement elements

Pressure gauge with glycerin 0 - 6 bar for 63mm panel with stand - Metal Work

Metal Work
PK-MAN6320G4G6SOP
€15.88 (€13.23 tax excl.)
Pressure gauge diameter 63mm with stainless steel case filled with glycerin, pressure indication between 0 and 6 bar. Pressure gauge to control the pressure of installations, systems or machines. Stainless steel case with rear connection with G 1/4" thread. The internal mechanisms are made of copper alloy. With metal dial, graduation in bar. Steel needle....

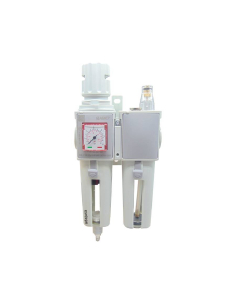

Pneumatic filter group 3/4 FRL EVO Series Aignep | ADAJUSA | price Pneumatic filter group 3/4 FRL EVO Series Aignep | ADAJUSA | price 2
3/4 FR-L filtering groups

Pneumatic filtering unit 3/4 regulation 0-8 bar automatic drain size 3 FRL EVO series -...

Aignep
Y100307232100
€180.79 (€150.66 tax excl.)
3/4" filter unit, 3/4" maintenance unit for pneumatic applications, automatic drain, compact size (T3) in 2 modules (FR+L), and regulation range 0-8 bar , compact pressure gauge. These filter units are made of technopolymer and with metal finishes. Made in Italy.Series: FRL EvoReference: Y100307232100 Representative image for illustrative purposes,...
Filter-regulator 3/4 technopolymer
3/4 FR-L filtering groups

Pneumatic filter-regulator 3/4 0-12 bar semi-automatic drain Syntesi series - Metal Work

Metal Work
5625B265
€68.40 (€57.00 tax excl.)
Filter with 3/4 pneumatic pressure regulator, 3/4 maintenance unit for pneumatic applications, semi-automatic drain, compact size (SY2) and regulation range 0-12 kg/cm2, filtration degree of 20 μm. These filter groups are made of technopolymer and nickel-plated brass with excellent resistance to corrosion. European manufacturing. Series:...
Pressure gauge for 63mm panel with stand - Metal Work - ADAJUSA Pressure gauge for 63mm panel with stand - Metal Work - ADAJUSA 2
  • Pack
Gauges and measurement elements

Pressure gauge with glycerin 0 - 2,5 bar for 63mm panel with stand - Metal Work

Metal Work
PK-MAN6320G4G2.5SOP
€15.88 (€13.23 tax excl.)
Pressure gauge diameter 63mm with stainless steel case filled with glycerin, pressure indication between 0 and 2,5 bar. Pressure gauge to control the pressure of installations, systems or machines. Stainless steel case with rear connection with G 1/4" thread. The internal mechanisms are made of copper alloy. With metal dial, graduation at bar. Steel...

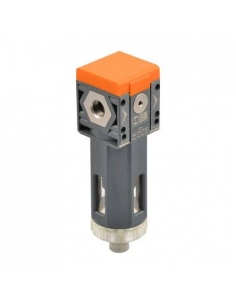

Filter 3/4 20 RA Size 2 Syntesi Metal Work - ADAJUSA
3/4 FR-L filtering groups

Filter 3/4 20 microns automatic drain size 2 Syntesi series - Metal Work

Metal Work
5625F505
€74.60 (€62.17 tax excl.)
3/4 filter, with a filtration degree of 20μm and automatic discharge, size 2, for retention of solid or liquid impurities from the air compressor. These filter cups are made of technopolymer and nickel-plated brass with excellent resistance to corrosion. European manufacturing.Series: SynthesisReference: 5625F505Representative image for illustrative...
Pressure gauge for 63mm panel with stand - Metal Work - ADAJUSA Pressure gauge for 63mm panel with stand - Metal Work - ADAJUSA 2
  • Pack
Gauges and measurement elements

Pressure gauge with glycerin 0 - 10 bar for 63mm panel with stand - Metal Work

Metal Work
PK-MAN6320G4G10SOP
€15.88 (€13.23 tax excl.)
Pressure gauge diameter 63mm with stainless steel case filled with glycerin, pressure indication between 0 and 10 bar. Pressure gauge to control the pressure of installations, systems or machines. Stainless steel case with rear connection with G 1/4" thread. The internal mechanisms are made of copper alloy. With metal dial, graduation in bar. Steel...

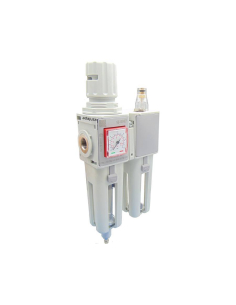

Pneumatic filter group 3/4 FRL EVO Series Aignep | ADAJUSA | price Pneumatic filter group 3/4 FRL EVO Series Aignep | ADAJUSA | price 2
