Non-return valve tube diameter 1/4 - Metal Work - ADAJUSA

Non-return valve tube-tube diameter 1/4 - Metal Work

Name: Non-return valve tube-tube diameter 1/4 - Metal Work
Brand: Metal Work
SKU: 9064016U
Price: 11.132 EUR
Availability: PreOrder

€11.13 Tax included

€9.20 tax excl.

Non-return valve with built-in fittings for tube diameter 1/4, in technopolymer. It allows the passage of the air only in one of the two directions of travel.

Reference: 9064016U

Logotipo Metal Work

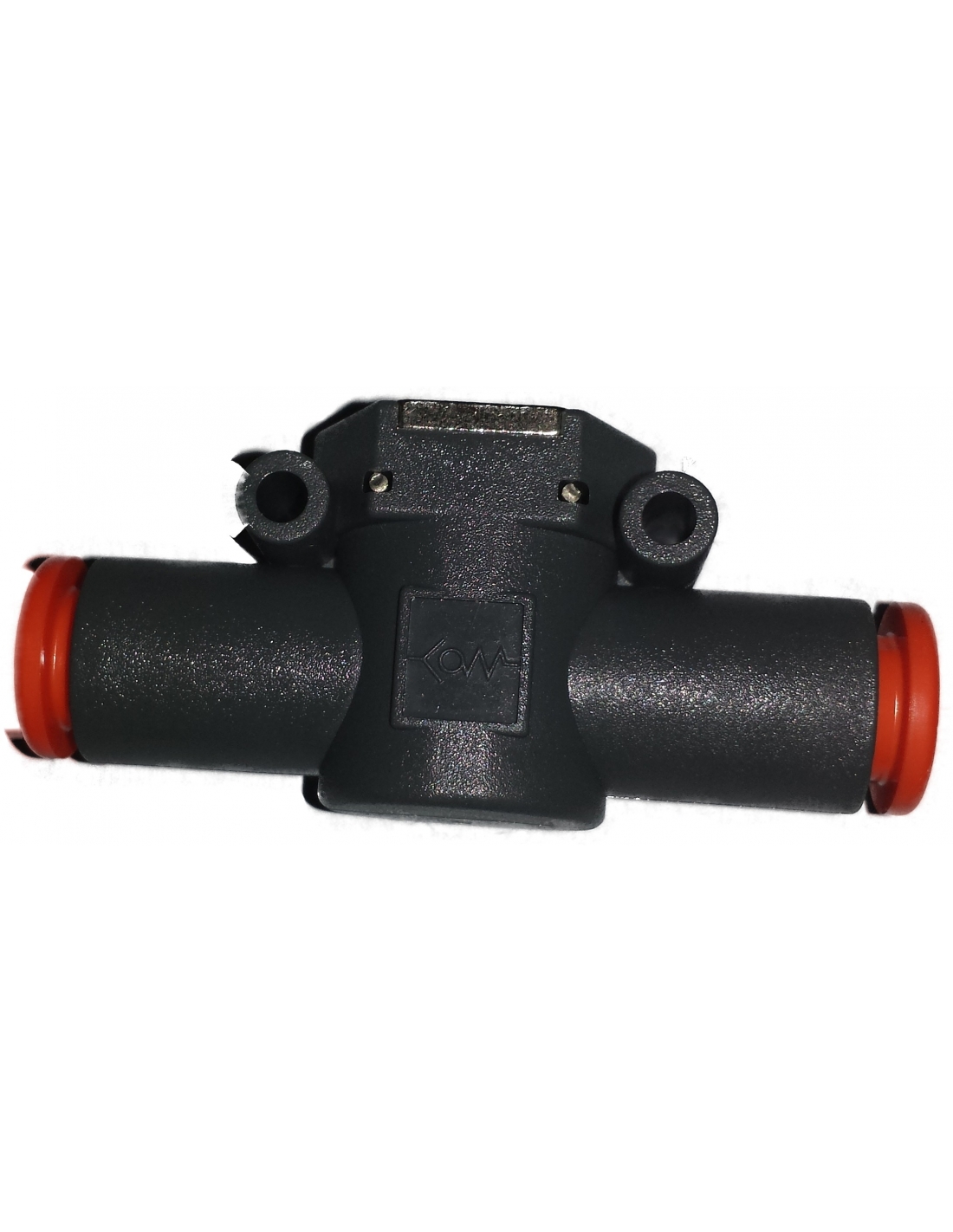

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Privacy

Shipments

Returns

Non-return valve with built-in fittings for 1/4 diameter tube, in technopolymer material, allows the passage of the air only in one of the two directions of travel.

Technical data:

Manufacturer: Metal Work.
Reference: 9064001- VNR L 1/4-1/4
Size: Tube diameter 1/4.
Exercise pressure
- (MPa): 0.05 ÷ 1.2
- (bar): 0.5 ÷ 12
- (psi): 7.2 ÷ 174
Exercise temperature
- (°C): –20 ÷ +60
- (°F): –4 ÷ +140
Flow rate at 6.3 bar ΔP 1 bar (Nl/min): 320
Fluid: Compressed air filtered with or without lubrication; if used, it must be continuous

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab

Non-return valves

Download (171.41KB)
