Button box with push button NYG3-G| ADAJUSA : price
Button box with push button NYG3-G| ADAJUSA : price

Box with full-travel pushbutton - NYG Series

€8.38 Tax included

6.98 tax excl.

PK-NYG3-G

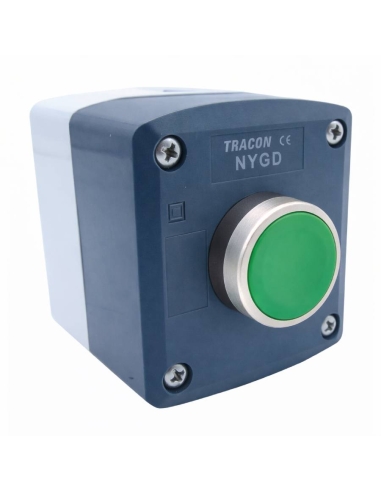

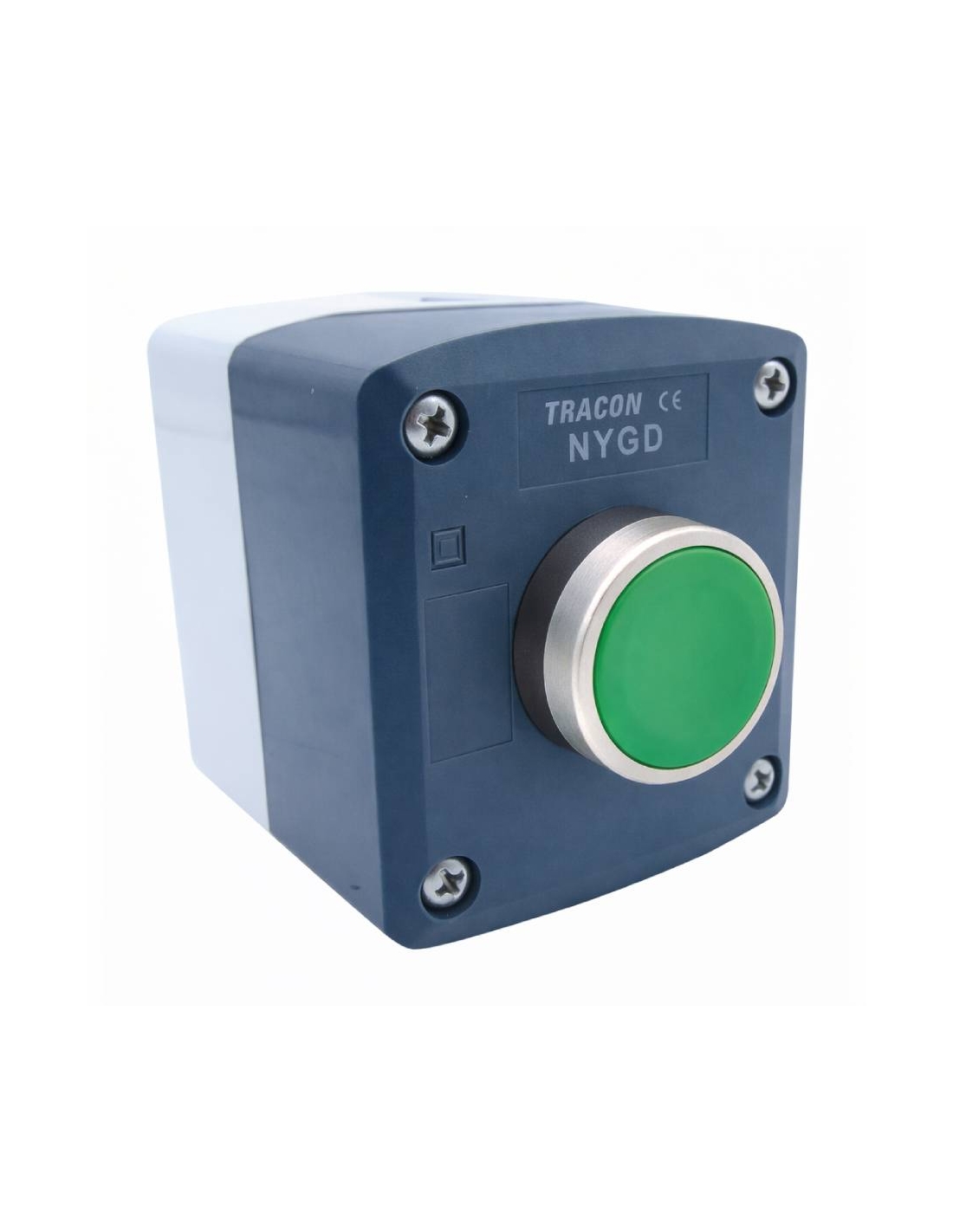

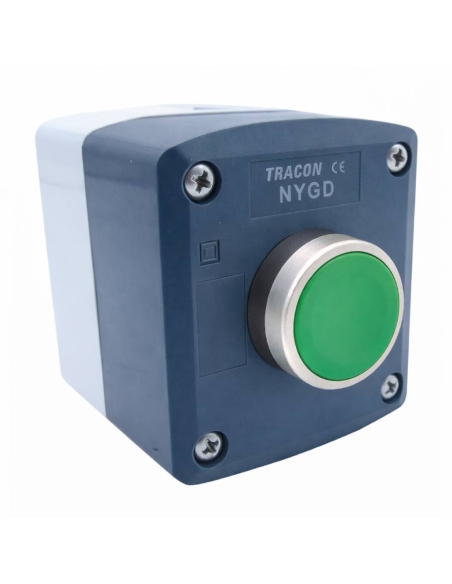

Box with full-travel pushbutton. Green plastic push button with an open contact (1NO) and case made of high resistance plastic in gray color and dark gray front.


Reference: PK-NYG3-G


Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

This pack contains

No queries yet, leave the first!
Privacy
Shipments
Returns


Box with a full-travel pushbutton. Green plastic push button with one open contact (1 NO) and case made of high resistance grey plastic with dark grey front. Degree of protection IP65 from the front side.

The enclosure has space for mounting an additional contact, open or closed, on the push button. The maximum number of contacts per element is 2.

The dimensions of the box are: 73x71x65,5mm



The supply does not include the mounting, the box and the pushbutton are supplied loose.



Characteristics:

  • Manufacturer/Supplier: Tracon
  • Part number: PK-NYG3-G
  • Pushbutton type: Run pushbutton
  • Push button color: Green
  • Inscription: None
  • Contacts1 NO. Possibility to mount additional contacts
  • Box in light grey/dark grey plastic
  • Drill diameter: 22mm
  • Nominal working current (AC 1, 230V): 6A
  • Rated working current (AC 15, 230V): 3A
  • Rated working current (DC 13, 250V): 0.27A
  • Rated insulation voltage: 660V
  • Working temperature: -25ºC to +40ºC
  • Degree of protection: IP65 (from front side)
  • Standards: EN 60947-1; EN 60947-5-1










Material for professional use, install in compliance with the regulations in force at the place of installation.

Questions

Be the first to ask a question about this product!

Question about the product

* Required fields
(read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

16 other products in the same category:

Button box with start button with "I" inscription NYGBA3311ZT| ADAJUSA | price
  • Pack
Button boxes with controls already installed

Box with metal push button with full "I" inscription - Series NYG

TRACON
PK-NYGBA3311ZT
€9.20 (€7.67 tax excl.)
Box with gear push button with complete "I" inscription. Green metal pushbutton with an open contact (1NO) and a box made of high-resistance gray plastic with a dark gray front. IP44 protection grade.Reference: NYGBA3311ZT Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.
Emergency box light and plug GM series - Giovenzana Emergency box light and plug GM series - Giovenzana 2
Button boxes with controls already installed

Light emergency box and GM402 series plug - Giovenzana

Giovenzana Internacional B.V.
GI-GM402ES
€43.87 (€36.56 tax excl.)
Button box mounted for moat and inspection of elevators. It complies with the specific regulations for elevators and machines, it allows to satisfy all safety requirements. The supply includes: box Emergency pushbutton 1 NC 1NA light  pushbutton Schuko European 16a outlet Reference: GM402/EN Representative image for illustrative...
Box control maintenance elevator cab GM751 - Giovenzana Box control maintenance elevator cab GM751 - Giovenzana 2
Button boxes with controls already installed

Box control maintenance elevator cab GM750 - Giovenzana

Giovenzana Internacional B.V.
GI-GM750ES
€102.64 (€85.53 tax excl.)
Assembled pushbutton box for car maintenance and inspection of elevators It complies with the specific regulations for elevators and machines, and meets all safety requirements. The supply includes: Box Emergency push button 1 NC Alarm switch push button 1NA. Push button stop in movement. Normal or maintenance selector. Up push button. Down...
Button box with mushroom stop button Ø60 NYGBR42PT| ADAJUSA | price
  • Pack
Button boxes with controls already installed

Box with metal stop mushroom push button Ø60 complete - NYG Series

TRACON
PK-NYGBR42PT
€10.07 (€8.39 tax excl.)
Box with non- interlocking mushroom stop button, diameter 60mm. Red metal pushbutton with a closed contact (1NC) and a box made of high-resistance gray plastic with a dark gray front. IP44 protection grade.Reference: NYGBR42PT Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.
Button box with yellow push button with rubber cover NYGBP51ST| ADAJUSA | price
  • Pack
Button boxes with controls already installed

Box with yellow metal push button with full rubber cover - NYG Series

TRACON
PK-NYGBP51ST
€9.35 (€7.79 tax excl.)
Yellow push button Box with full rubber cover. Yellow metal pushbutton with an open contact (1NO) and rubber protection, box made of high-resistance gray plastic and dark gray front. IP44 protection grade.Reference: NYGBP51ST Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.
Button box with protruding stop button with "O" inscription NYGBA4322PT| ADAJUSA | price
  • Pack
Button boxes with controls already installed

Box with protruding metal stop pushbutton with full "O" inscription - NYG Series

TRACON
PK-NYGBA4322PT
€8.90 (€7.42 tax excl.)
Box with protruding stop button with "O" inscription. Protruding red metal pushbutton with a closed contact (1NC) and a box made of high-resistance gray plastic with a dark gray front. IP44 protection grade.Reference: NYGBA4322PT Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.
Button box with mushroom push-button stop Ø40 NYG3-ETR| ADAJUSA | price
  • Pack
Button boxes with controls already installed

Box with mushroom pushbutton Ø40 mushroom pushbutton with full twist release - NYG Series

TRACON
PK-NYG3-ETR
€11.84 (€9.87 tax excl.)
Box with mushroom type stop push button with twist release, diameter 40mm. Plastic mushroom push button with one closed contact (1NC) and case made of high resistance plastic in grey color and dark grey front.Reference: PK-NYG3-ETR Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.
Button box with start-stop push button NYG3-D2| ADAJUSA | price
  • Pack
Button boxes with controls already installed

Box with complete ON-OFF push button - NYG Series

TRACON
PK-NYG3-D2
€10.87 (€9.06 tax excl.)
Box with full on-off push button. Double plastic ON-OFF plastic push button with ON-OFF inscription with one open and one closed contact (1NO + NC). Box made of high resistance plastic in grey color and front in dark grey color. Reference: PK-NYG3-D2 Representative image for illustrative purposes, the item supplied will correspond to the...
Button box with stop button with "O" inscription NYGBA4222PT| ADAJUSA | price
  • Pack
Button boxes with controls already installed

Box with metal stop pushbutton with full "O" inscription - NYG Series

TRACON
PK-NYGBA4222PT
€9.20 (€7.67 tax excl.)
Box with stop button with "O" inscription. Red metal pushbutton with a closed contact (1NC) and a box made of high-resistance gray plastic with a dark gray front. IP44 protection grade.Reference: NYGBA4222PT Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

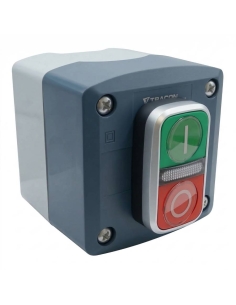

Button box with start-stop push button NYG3-D1| ADAJUSA | price
  • Pack
Button boxes with controls already installed

Box with full On-Off (I-O) push button - NYG Series

TRACON
PK-NYG3-D1
€11.02 (€9.18 tax excl.)
Box with full start-stop push button. Double plastic on-off push button with I-O inscription with one contact open and one contact closed (1NO + NC). Box made of high resistance plastic in grey color and front in dark grey color. Part number: PK-NYG3-D1 Representative image for illustrative purposes, the item supplied will correspond to the...
5-element Ergos HP05 series button. D2 Giovenzana adajusa
Lifting elements - crane bridges - hostas

HP05 emergency button. D2 crane bridge or hosticch - Giovenzana

Giovenzana Internacional B.V.
GI-HP05.D2
€77.41 (€64.51 tax excl.)
Hanging button mounted for bridge crane or hoist, and use in general. It has an emergency stop button Ø30 with interlocking, and pushbuttons for up and down (double speed) and left right. It complies with the specific regulations for this type of elements that satisfy all safety requirements. Made in Europe. The supply includes: Box for 5 elements...
View

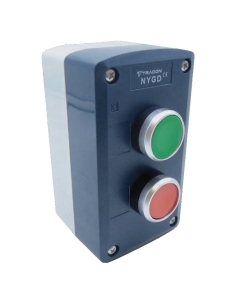

Button box with start-stop push buttons Tracon| ADAJUSA | price
