Box control maintenance elevator cab GM750 - Giovenzana

€96.87 Tax included

€80.06 tax excl.

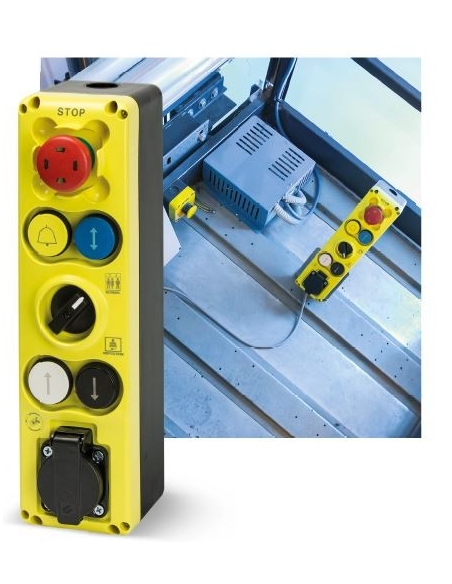

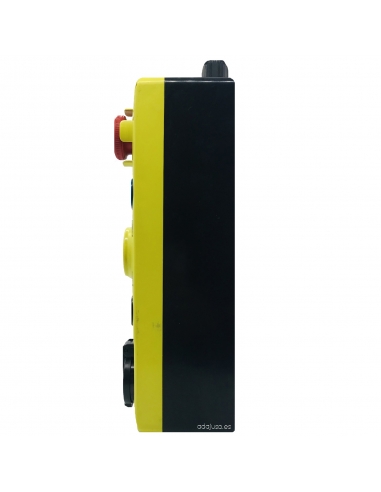

Assembled pushbutton box for car maintenance and inspection of elevators

It complies with the specific regulations for elevators and machines, and meets all safety requirements.

The supply includes:

  • Box
  • Emergency push button 1 NC
  • Alarm switch push button 1NA.
  • Push button stop in movement.
  • Normal or maintenance selector.
  • Up push button.
  • Down push button.
  • European 16A schuko socket

Part number: GM750

logotipo giovenzana adajusa

No queries yet, leave the first!

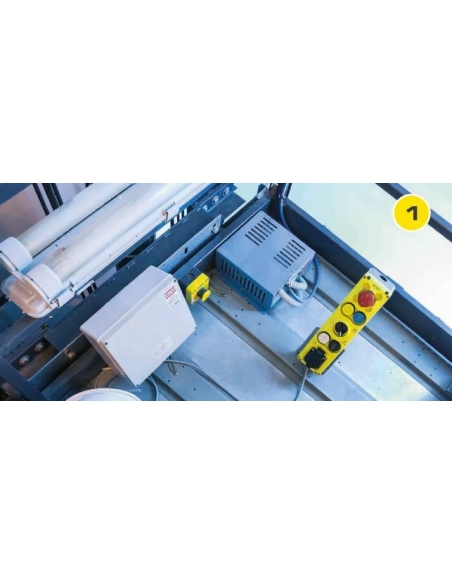

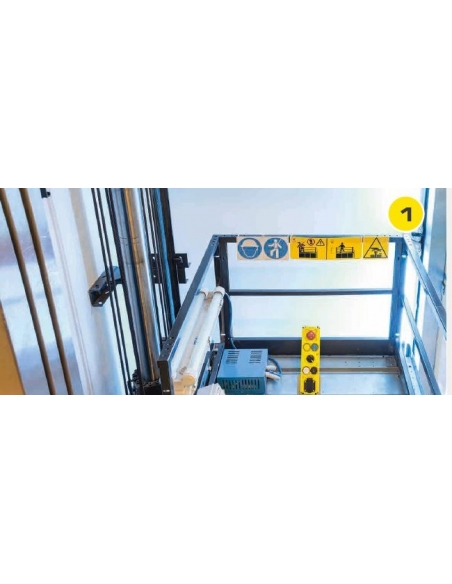

Pushbutton box for maintenance and inspection of elevator cabs. European manufacture, complies with all applicable regulations for this type of installation.

The pushbutton box is supplied fully equipped with the usual elements for this type of installation. It has a design that offers ease of use, easy installation and maintenance. IP54 protection degree.

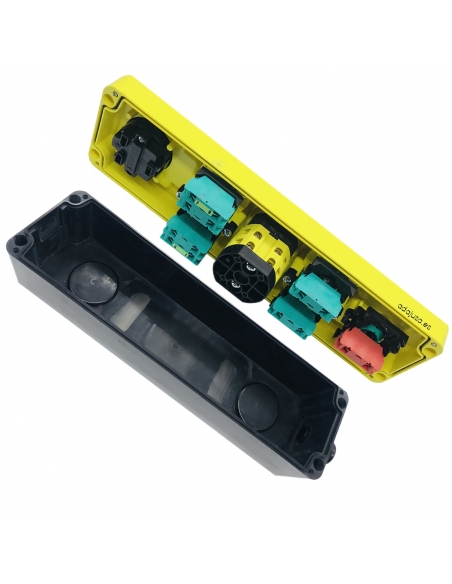

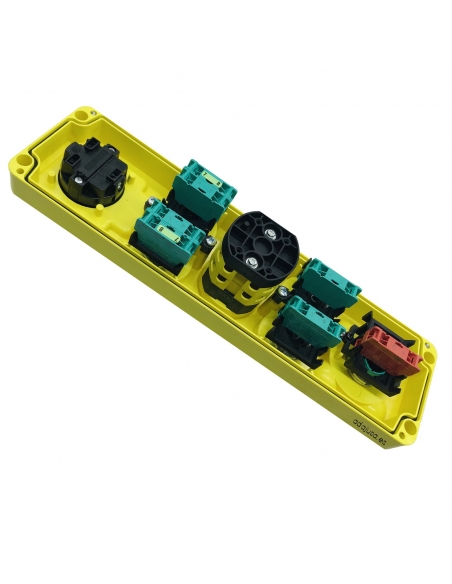

The pushbutton contacts have spring-type terminals for cable connection and are equipped with high capacity contacts (Ith 16A). The emergency push button has status indication and locking (push and pull).

The pushbutton panel complies with all standards for use in elevators in safety and inspection applications in elevator shafts (EN 81.20 - EN 81.50).

To complement the contacts included in the supply, it is possible to add more contact blocks only of Giovenzana brand, the references are:

  • 1 NC closed contact, cable fixing by spring: GIPCW01.
  • 1 open contact NO, cable fixing by spring: GIPCW10.
  • 1 NC closed contact, cable fixing by screw: GIPL004001.
  • 1 open contact NO, cable fixing by screw: GIPL004002.

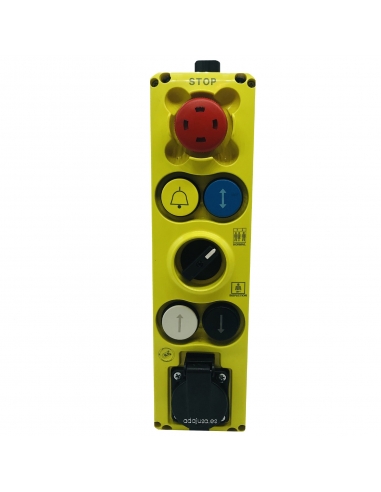

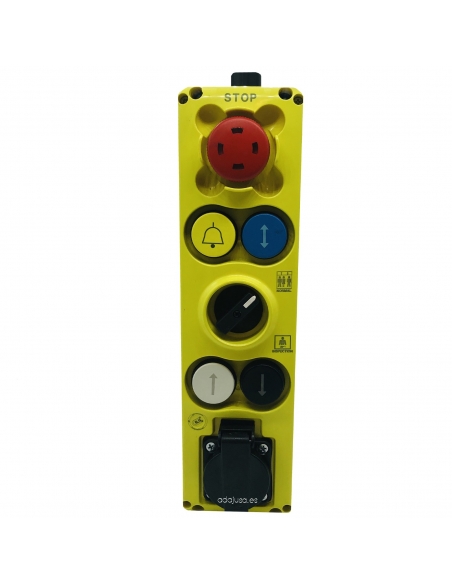

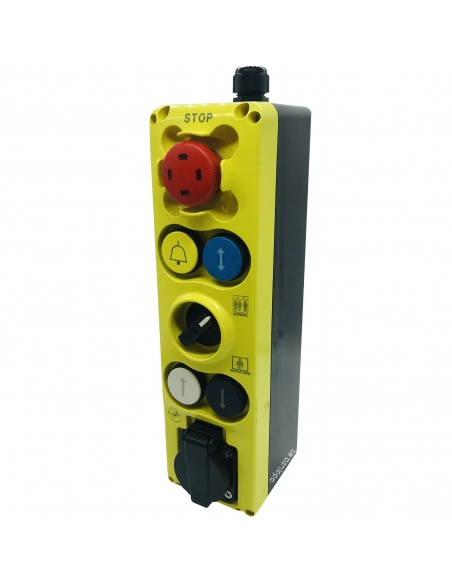

Delivery includes:

  • Box in yellow color
  • Pushbutton mushroom-head of emergency diameter 40, with interlocking and mechanical status indication. It has a positive break (NC) contact
  • Alarm pushbutton, yellow, with 1 open contact (NO).
  • Motion stop pushbutton, blue color, with 1 open contact (NO).
  • Normal or inspection mode selector, 1-2 turns 90º. 4 contacts 20A.
  • Up push button, white, with 2 open contacts (NO).
  • Down push button, black, with 2 open contacts (NO).
  • Power socket, plug base, schuko type 16A

Technical characteristics:

  • Manufacturer: Giovenzana
  • Series: GM
  • Reference: GM750
  • diameter of the mushroom-head: 40mm
  • Operation: Push and pull
  • Case: Made of yellow plastic
  • Maximum voltage of isolation (Ui) : 690Vac
  • Nominal thermal intensity (Ith):
    • Push buttons: 16A.
    • Power socket: 16A.
  • Frequency: 50/60Hz
  • Cable inlet: pre-cut for M20
  • Weight: 500gr
  • Grade of isolation: IP54
  • Standards: IEC/EN 60947-1; IEC/EN 60947-5-1; IEC/EN 60947-5-4; IEC/EN 60947-5-5-5; EN 81.20; EN 81.50

Dimensions

Dimensiones caja GM751 (1)

Dibujo modo conexionado bornas tipo resorte Giovenzana

For further information you can download the data sheet by clicking on the "Attachments" tab.
Material for professional use, install in compliance with the regulations in force at the place of installation
