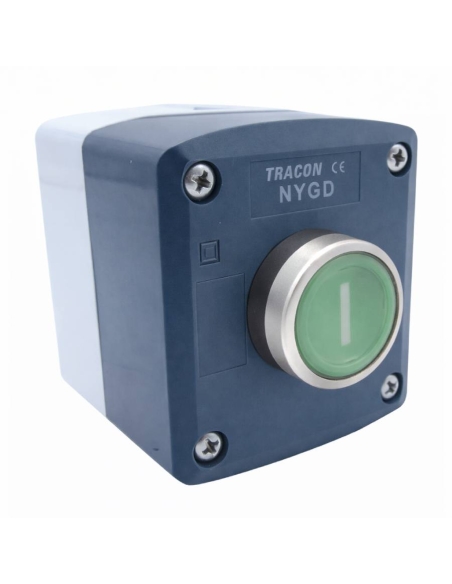

Button box with push button "I" NYG3-P1| ADAJUSA | price
Button box with push button "I" NYG3-P1| ADAJUSA | price

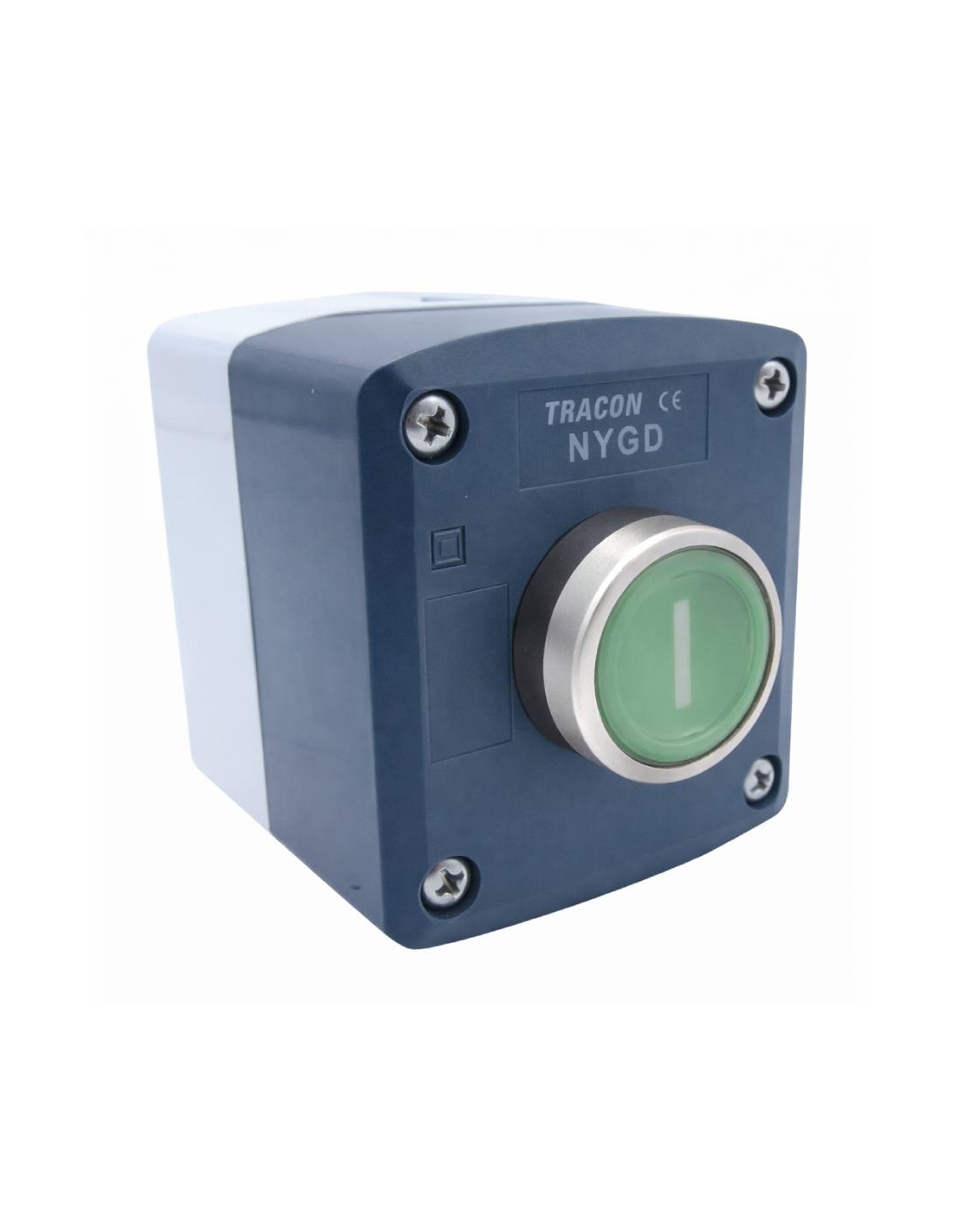

Box with push button with full "I" inscription - Series NYG

€8.78 Tax included

7.32 tax excl.

PK-NYG3-P1

Box with push button with full "I" inscription. Green plastic push button with an open contact (1NO) and case made of high resistance gray plastic with dark gray front.


Reference: PK-NYG3-P1


Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

This pack contains

No queries yet, leave the first!
Privacy
Shipments
Returns


Box with push button with full "I" inscription. Green plastic push button with one open contact (1 NO) and case made of grey high resistance plastic and dark grey front. Degree of protection IP65 from the front side.

The enclosure has space for mounting an additional contact, open or closed, on the push button. The maximum number of contacts per element is 2.

The dimensions of the box are: 73x71x65,5mm



The supply does not include the mounting, the box and the pushbutton are supplied loose.



Characteristics:

  • Manufacturer/Supplier: Tracon
  • Part number: PK-NYG3-P1
  • Pushbutton type: Run pushbutton
  • Push button color: Green
  • Inscription: "I"
  • Contacts1 NO. Possibility to mount additional contacts
  • Box in light grey/dark grey plastic
  • Drill diameter: 22mm
  • Nominal working current (AC 1, 230V): 6A
  • Rated working current (AC 15, 230V): 3A
  • Rated working current (DC 13, 250V): 0.27A
  • Rated insulation voltage: 660V
  • Working temperature: -25ºC to +40ºC
  • Degree of protection: IP65 (from front side)
  • Standards: EN 60947-1; EN 60947-5-1










Material for professional use, install in compliance with the regulations in force at the place of installation.

Questions

Be the first to ask a question about this product!

Question about the product

* Required fields
(read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

16 other products in the same category:

HP07 emergency button. D6 adajusa.is
Lifting elements - crane bridges - hostas

Emergency button HP07 D6 crane bridge or hosticch - Giovenzana

Giovenzana Internacional B.V.
GI-HP07.D6
€109.33 (€91.11 tax excl.)
Hanging button mounted for bridge crane or hoist, and use in general. It has an emergency stop button Ø30 with interlocking, and pushbuttons for up and down (double speed), back and front (double speed) and left right (double speed) It complies with the specific regulations for this type of elements that satisfy all safety requirements. Made in Europe....
View
Box with 2-position selector with long handle return NYBJ41KLOT| ADAJUSA | price
  • Pack
Button boxes with controls already installed

Box with 2-position long metal handle selector with full return - NYG Series

TRACON
PK-NYBJ41KLOT
€9.32 (€7.77 tax excl.)
Box with complete 2-position selector. Long handle metal selector with 2 positions with return (1 fixed position and another keeping it activated) and 1 open contact (NO). Box made of high-resistance gray plastic and dark gray front. IP44 protection grade.Reference: NYBJ41KLOT Representative image for illustrative purposes, the item supplied will...
Button box with start-stop push button NYG3-D| ADAJUSA | price
  • Pack
Button boxes with controls already installed

Box with full start-stop pushbutton - NYG Series

TRACON
PK-NYG3-D
€10.87 (€9.06 tax excl.)
Box with full start-stop push button. Double plastic on-off push button with one contact open and one contact closed (1NO + NC), case made of high resistance plastic in grey color and front in dark grey color. Part number: PK-NYG3-D Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.
Box command maintenance elevator GM412 - Giovenzana Box command maintenance elevator GM412 - Giovenzana 2
Button boxes with controls already installed

Box command maintenance elevator GM412 - Giovenzana

Giovenzana Internacional B.V.
GI-GM412ES
€119.47 (€99.56 tax excl.)
Button box mounted for maintenance and inspection of elevators. It complies with the specific regulations for elevators and machines, it allows to satisfy all safety requirements. The supply includes: box Emergency pushbutton 2 NC 1NA alarm switch pushbutton. Pushbutton stopped in motion 2NA+1NC. Selector normal or in maintenance 3NA+3NC....
Button box with 3-position selector with return NYBD53KSTT| ADAJUSA | price
  • Pack
Button boxes with controls already installed

Box with 3-position metal selector with full return - NYG Series

TRACON
PK-NYBD53KSTT
€10.96 (€9.13 tax excl.)
Box with complete 3-position selector. Short lever metal selector with 3 positions with return (1 fixed position and 2 others keeping it activated) and 2 open contacts (2NO). Box made of high-resistance gray plastic and dark gray front. IP44 protection grade.Reference: NYBD53KSTT Representative image for illustrative purposes, the item supplied will...
Button box with start button with rubber cover NYGBP31ZT| ADAJUSA | price
  • Pack
Button boxes with controls already installed

Box with metal gear push button with full rubber cover - NYG Series

TRACON
PK-NYGBP31ZT
€9.44 (€7.87 tax excl.)
Box with gear push button with complete rubber cover. Green metal pushbutton with an open contact (1NO) and rubber protection, box made of high-resistance gray plastic and dark gray front. IP44 protection grade.Reference: NYGBP31ZT Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.
PLN07 Giovenzana series 7-element adajusa
Lifting elements - crane bridges - hostas

Emergency button PLN07 bridge crane or hoste - Giovenzana

Giovenzana Internacional B.V.
GI-PLN07
€119.60 (€99.67 tax excl.)
Hanging button mounted for bridge crane or hoist, and use in general. It has an emergency stop button Ø30 with interlocking, and pushbuttons for up and down, behind and front and left right. It complies with the specific regulations for this type of elements that satisfy all safety requirements. Made in Europe. The supply includes: Box for 7 elements...

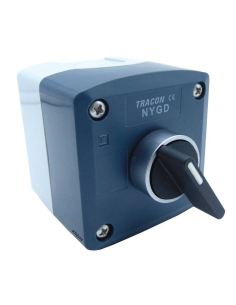

Button box with 3-position long handle selector NYBJ33KLOT| ADAJUSA | price
  • Pack
Button boxes with controls already installed

Box with full metal 3-position long handle selector - NYG Series

TRACON
PK-NYBJ33KLOT
€10.42 (€8.68 tax excl.)
Box with complete 3-position selector. Long handle metal selector with 3 maintained positions and 2 open contacts (2NO), box made of high-resistance gray plastic and dark gray front. IP44 protection grade.Reference: NYBJ33KLOT Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.
Button box with start-stop push button NYG3-D2| ADAJUSA | price
  • Pack
Button boxes with controls already installed

Box with complete ON-OFF push button - NYG Series

TRACON
PK-NYG3-D2
€10.87 (€9.06 tax excl.)
Box with full on-off push button. Double plastic ON-OFF plastic push button with ON-OFF inscription with one open and one closed contact (1NO + NC). Box made of high resistance plastic in grey color and front in dark grey color. Reference: PK-NYG3-D2 Representative image for illustrative purposes, the item supplied will correspond to the...
Button box with protruding stop button with "O" inscription NYGBA4322PT| ADAJUSA | price
  • Pack
Button boxes with controls already installed

Box with protruding metal stop pushbutton with full "O" inscription - NYG Series

TRACON
PK-NYGBA4322PT
€8.90 (€7.42 tax excl.)
Box with protruding stop button with "O" inscription. Protruding red metal pushbutton with a closed contact (1NC) and a box made of high-resistance gray plastic with a dark gray front. IP44 protection grade.Reference: NYGBA4322PT Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

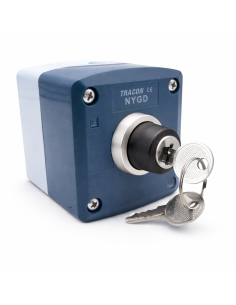

Button box with key selector switch 2 potions NYK3-K21| ADAJUSA | price
