Button box with start-stop push button NYG3-D| ADAJUSA | price
Button box with start-stop push button NYG3-D| ADAJUSA | price

Box with full start-stop pushbutton - NYG Series

€10.87 Tax included

9.06 tax excl.

PK-NYG3-D

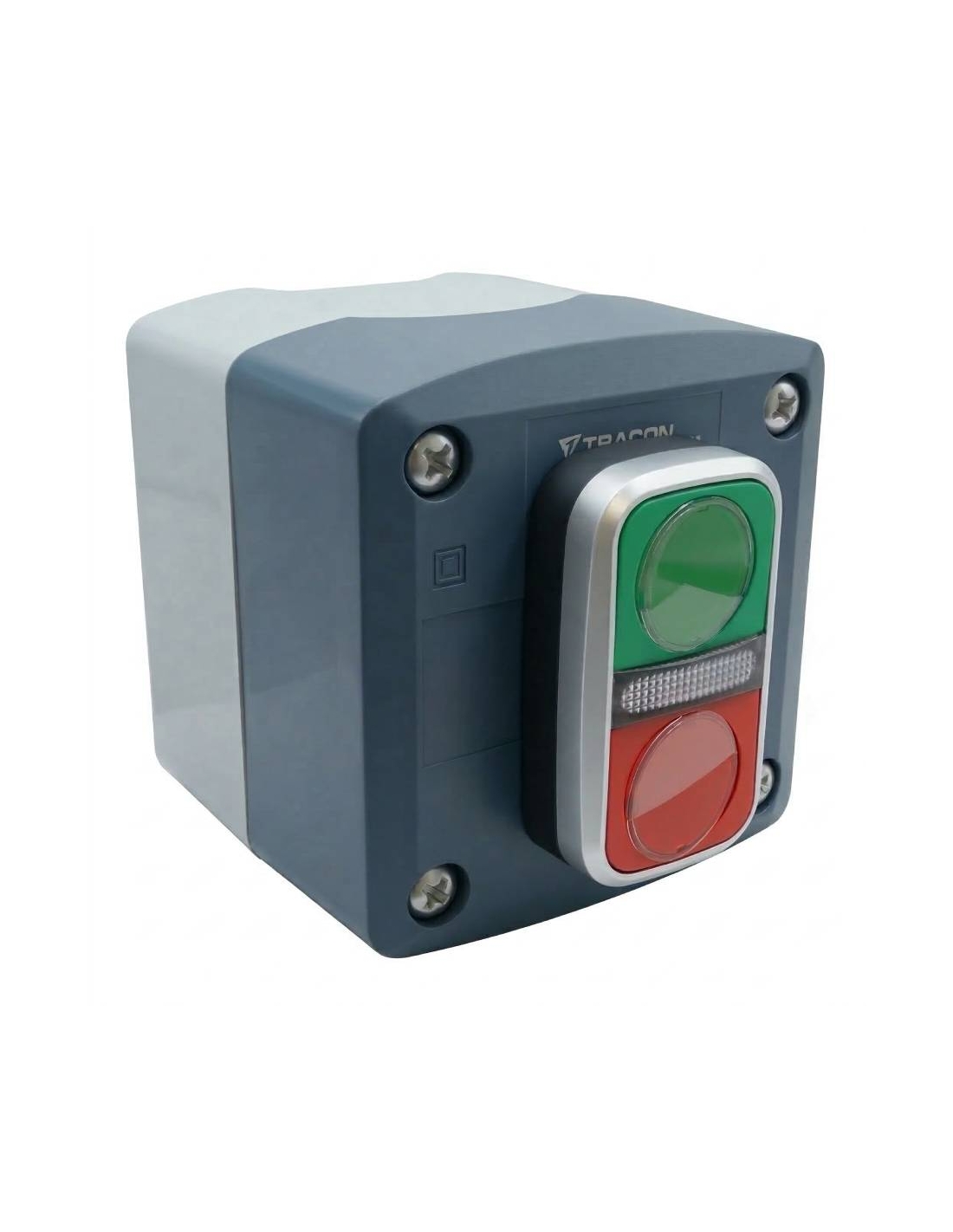

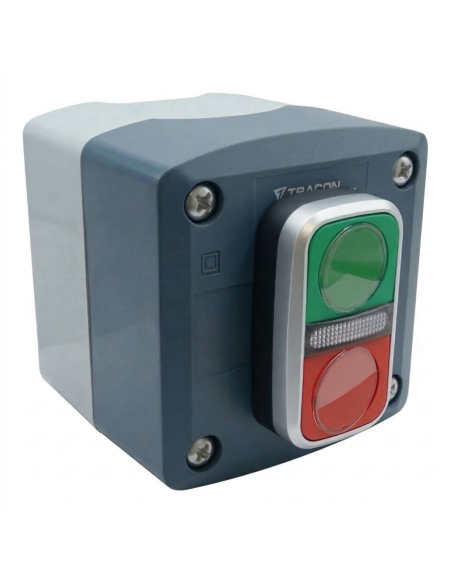

Box with full start-stop push button. Double plastic on-off push button with one contact open and one contact closed (1NO + NC), case made of high resistance plastic in grey color and front in dark grey color.


Part number: PK-NYG3-D


Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

This pack contains

No queries yet, leave the first!
Privacy
Shipments
Returns


Box with double push-button for full start-stop. Plastic on-off push button with one open contact and one closed contact (1 NO + NC) and case made of high resistance plastic in grey color and dark grey front. Degree of protection IP65 from the front side.
.

The dimensions of the box are: 73x71x65,5mm



The supply does not include the mounting, the box and the push button are supplied loose.



Features:

  • Manufacturer/Supplier: Tracon
  • Part number: PK-NYG3-D
  • Pushbutton type: Double run-stop button
  • Push button color: Green-red
  • Inscription: None
  • Contacts1 NO + 1NC
  • Box in light grey/dark grey plastic
  • Drill diameter: 22mm
  • Rated working current (AC 1, 230V): 6A
  • Nominal working current (AC 15, 230V): 3A
  • Rated working current (DC 13, 250V): 0.27A
  • Rated insulation voltage: 660V
  • Working temperature: -25ºC to +40ºC
  • Degree of protection: IP65 (from front side)
  • Standards: EN 60947-1; EN 60947-5-1










Material for professional use, install in compliance with the regulations in force at the place of installation.

Questions

Be the first to ask a question about this product!

Question about the product

* Required fields
(read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

16 other products in the same category:

Pendant control station 2 cuts Harmony XAC SCHNEIDER | ADAJUSA | price Pendant control station 2 cuts Harmony XAC SCHNEIDER | ADAJUSA | price 2
Lifting elements - crane bridges - hostas

Empty pendant push Button box 2 push buttons - SCHNEIDER

Schneider
XACA02
€52.06 (€43.38 tax excl.)
Empty Button box with die-cut for two push-buttons, allows for custom composition by adding the necessary control units for machinery control and general use. Pendant control Box ideal for elevators and crane applications, made of yellow polypropylene with stepped rubber cable entry.Compatible with push buttons, pilot lights, switches and selectors with a...
Box command maintenance elevator GM412 - Giovenzana Box command maintenance elevator GM412 - Giovenzana 2
Button boxes with controls already installed

Box command maintenance elevator GM412 - Giovenzana

Giovenzana Internacional B.V.
GI-GM412ES
€119.47 (€99.56 tax excl.)
Button box mounted for maintenance and inspection of elevators. It complies with the specific regulations for elevators and machines, it allows to satisfy all safety requirements. The supply includes: box Emergency pushbutton 2 NC 1NA alarm switch pushbutton. Pushbutton stopped in motion 2NA+1NC. Selector normal or in maintenance 3NA+3NC....
Button box with start button with rubber cover NYGBP31ZT| ADAJUSA | price
  • Pack
Button boxes with controls already installed

Box with metal gear push button with full rubber cover - NYG Series

TRACON
PK-NYGBP31ZT
€9.44 (€7.87 tax excl.)
Box with gear push button with complete rubber cover. Green metal pushbutton with an open contact (1NO) and rubber protection, box made of high-resistance gray plastic and dark gray front. IP44 protection grade.Reference: NYGBP31ZT Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.
Button box with 3-position selector with return NYBD53KSTT| ADAJUSA | price
  • Pack
Button boxes with controls already installed

Box with 3-position metal selector with full return - NYG Series

TRACON
PK-NYBD53KSTT
€10.96 (€9.13 tax excl.)
Box with complete 3-position selector. Short lever metal selector with 3 positions with return (1 fixed position and 2 others keeping it activated) and 2 open contacts (2NO). Box made of high-resistance gray plastic and dark gray front. IP44 protection grade.Reference: NYBD53KSTT Representative image for illustrative purposes, the item supplied will...

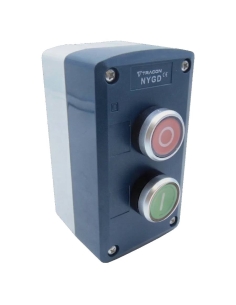

Button box with start-stop push buttons I-O Tracon| ADAJUSA : price
  • Pack
Button boxes with controls already installed

Box with full on-off (I-O) pushbuttons - NYG Series

TRACON
PK-NYG3-P1-P2
€14.80 (€12.33 tax excl.)
Box with full start-stop pushbuttons. Green push button with "I" inscription with an open contact (1NO) and red push button with "O" inscription with a closed contact (1NC). Box made of high resistance plastic in grey color and front in dark grey color. Part number: PK-NYG3-P1-P2 Representative image for illustrative purposes, the item supplied will...
Button 10 elements PLN10 Series Giovenzana adajusa
Lifting elements - crane bridges - hostas

Emergency Button PLN10 Crane Bridge or Hoste - Giovenzana

Giovenzana Internacional B.V.
GI-PLN10
€171.68 (€143.07 tax excl.)
Hanging button mounted for bridge crane or hoist, and use in general. It has an emergency stop button Ø30 with interlocking, a pushbutton with alarm and pushbuttons for up and down, behind and front, behind and front (double speed) and left right. It complies with the specific regulations for this type of elements that satisfy all safety requirements....

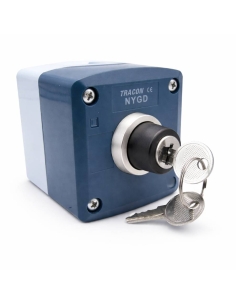

Button box with key selector 3 potions NYK3-K31| ADAJUSA | price
  • Pack
Button boxes with controls already installed

Box with 3-position key selector switch complete - NYG Series

TRACON
PK-NYK3-K31
€11.48 (€9.57 tax excl.)
Box with full 3-position key-operated selector switch. Plastic key-operated three-position selector with one contact open and one contact closed (NO + NC), housing made of high-strength gray plastic and dark gray front. Part number: PK-NYK3-K31 Representative image for illustrative purposes, the item supplied will correspond to the specifications...
Button box with mushroom push-button stop Ø40 NYG3-ETR| ADAJUSA | price
  • Pack
Button boxes with controls already installed

Box with mushroom pushbutton Ø40 mushroom pushbutton with full twist release - NYG Series

TRACON
PK-NYG3-ETR
€11.84 (€9.87 tax excl.)
Box with mushroom type stop push button with twist release, diameter 40mm. Plastic mushroom push button with one closed contact (1NC) and case made of high resistance plastic in grey color and dark grey front.Reference: PK-NYG3-ETR Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

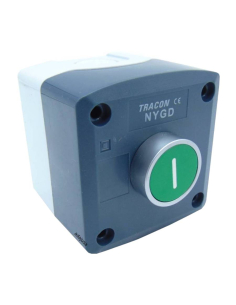

Button box with start button with "I" inscription NYGBA3311ZT| ADAJUSA | price
  • Pack
Button boxes with controls already installed

Box with metal push button with full "I" inscription - Series NYG

TRACON
PK-NYGBA3311ZT
€9.20 (€7.67 tax excl.)
Box with gear push button with complete "I" inscription. Green metal pushbutton with an open contact (1NO) and a box made of high-resistance gray plastic with a dark gray front. IP44 protection grade.Reference: NYGBA3311ZT Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.
Button box with 3-position selector with right return NYK3-S32BK| ADAJUSA : price
  • Pack
Button boxes with controls already installed

Box with 3-position selector with full right return - NYG Series

TRACON
PK-NYK3-S32BK
€10.07 (€8.39 tax excl.)
Box with 3-position selector with full return. Plastic selector of three positions with return in the position of the right side remaining fixed in the left and central position, with two open contacts 2(NO). Box manufactured in high resistance plastic of gray color and front in dark gray color. Ordering Number: PK-NYK3-S32BK Representative image for...

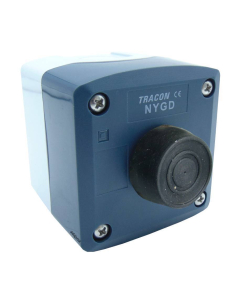

Black push Button box with rubber cover NYGBP21T| ADAJUSA | price
  • Pack
Button boxes with controls already installed

Box with black metal push button with full rubber cover - NYG Series

TRACON
PK-NYGBP21T
€9.37 (€7.81 tax excl.)
Black push button Box with full rubber cover. Black metal pushbutton with an open contact (1NO) and rubber protection, box made of high-resistance gray plastic and dark gray front. IP44 protection grade.Reference: NYGBP21T Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

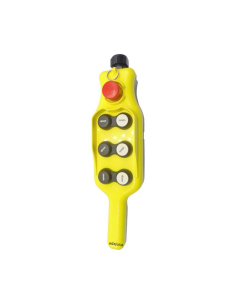

HP07 emergency button. D6 adajusa.is
