€108.75 Tax included

€89.88 tax excl.

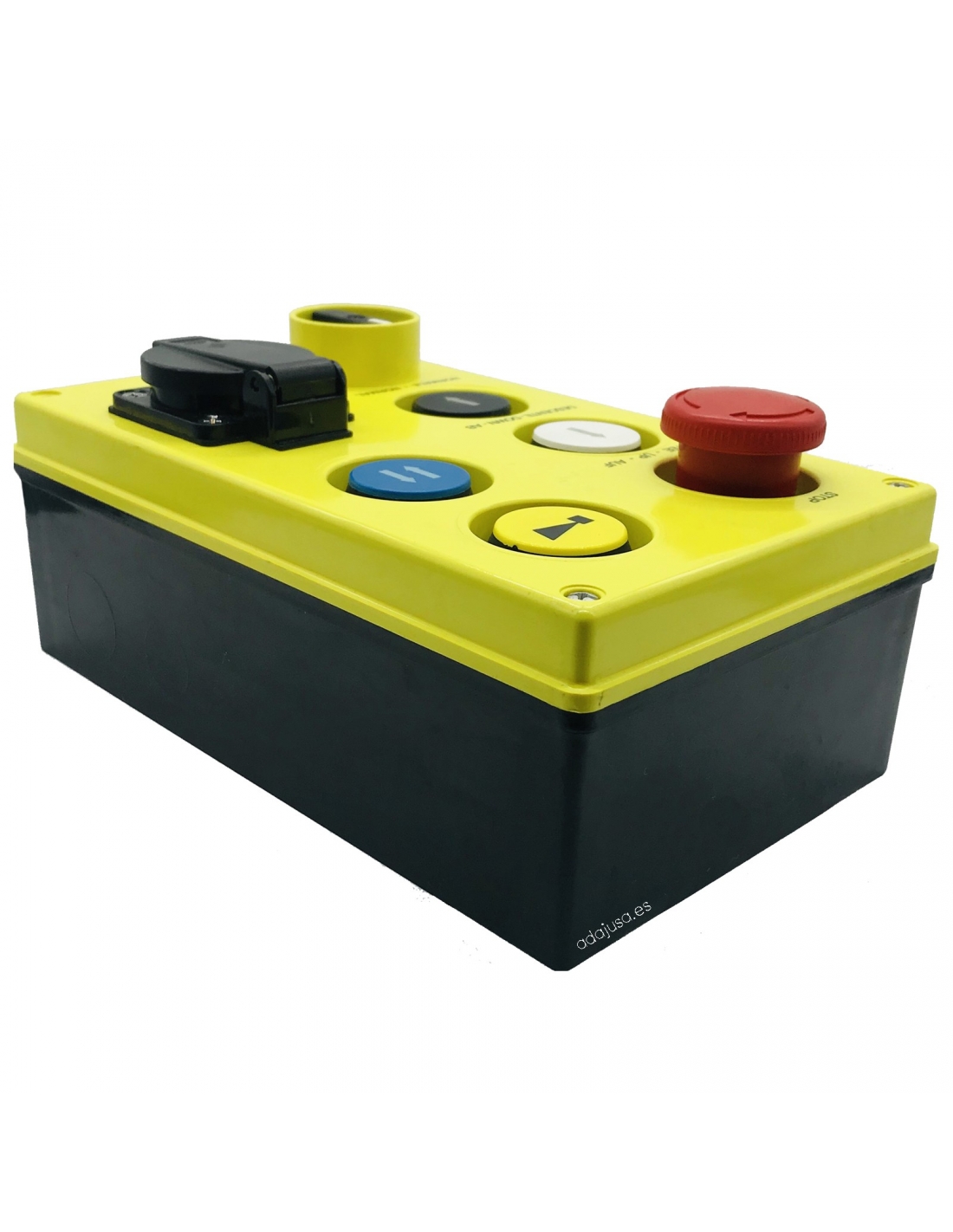

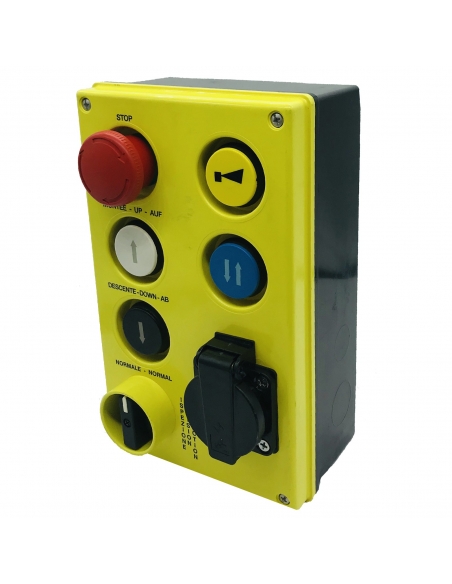

Button box mounted for maintenance and inspection of elevators.

It complies with the specific regulations for elevators and machines, it allows to satisfy all safety requirements.

The supply includes:

  • box
  • Emergency pushbutton 2 NC
  • 1NA alarm switch pushbutton.
  • Pushbutton stopped in motion 2NA+1NC.
  • Selector normal or in maintenance 3NA+3NC.
  • Upstroke 2 NA.
  • Down button 2 NA+1NC.
  • Schuko European 16a outlet

Reference: GM412/EN

logotipo giovenzana adajusa

Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

No queries yet, leave the first!


Pushbutton box for maintenance and inspection of elevators. European manufacture, complies with all applicable regulations for this type of installation.

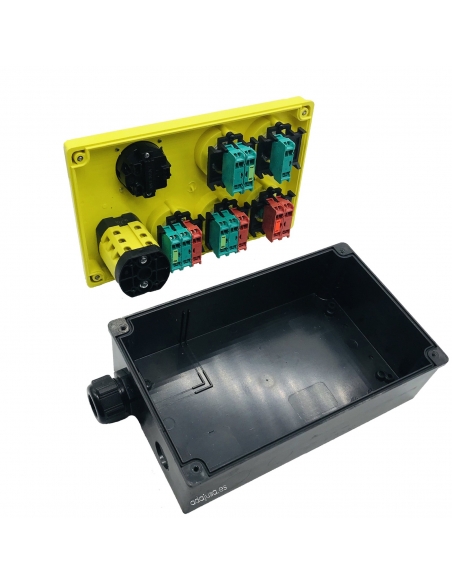

The pushbutton box is supplied fully equipped with the usual elements for this type of installation. It has a design that offers ease of use, easy installation and maintenance. IP54 protection degree.

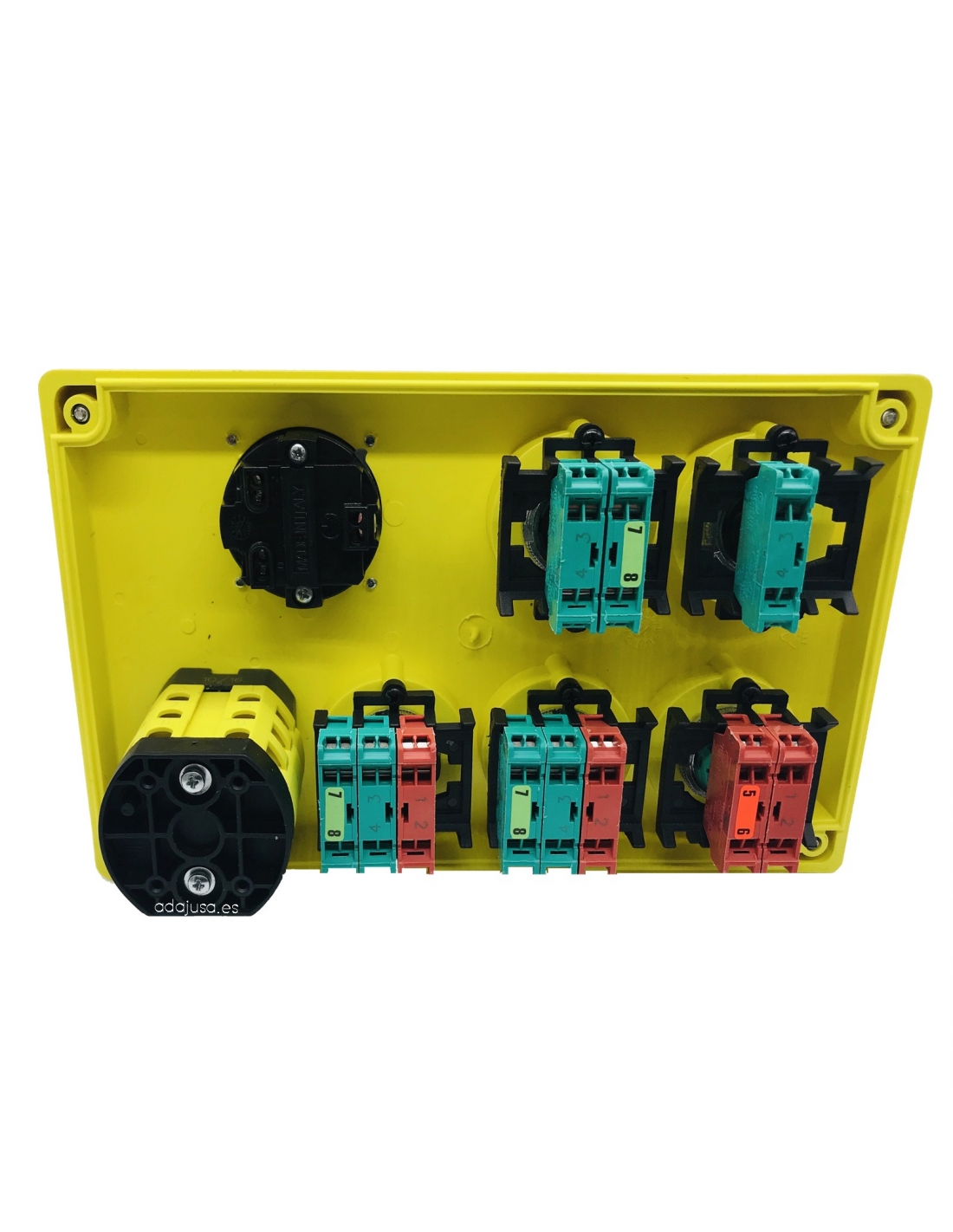

The pushbutton contacts have spring-type terminals for cable connection and are equipped with high capacity contacts (Ith 16A). The emergency push button is equipped with status indication and locking (push and pull).

The pushbutton panel complies with all standards for use in elevators in safety and inspection applications in elevator shafts (EN 81.20 - EN 81.50).

To complement the contacts included in the supply, it is possible to add more contact blocks only of Giovenzana brand, the references are:

  • 1 closed contact (NC), cable fixing by spring: GIPCW01.
  • 1 open contact (NO), cable fixing by spring: GIPCW10.
  • 1 closed contact (NC), cable fixing by screw: GIPL004001.
  • 1 open contact (NO), cable fixing by screw: GIPL004002.

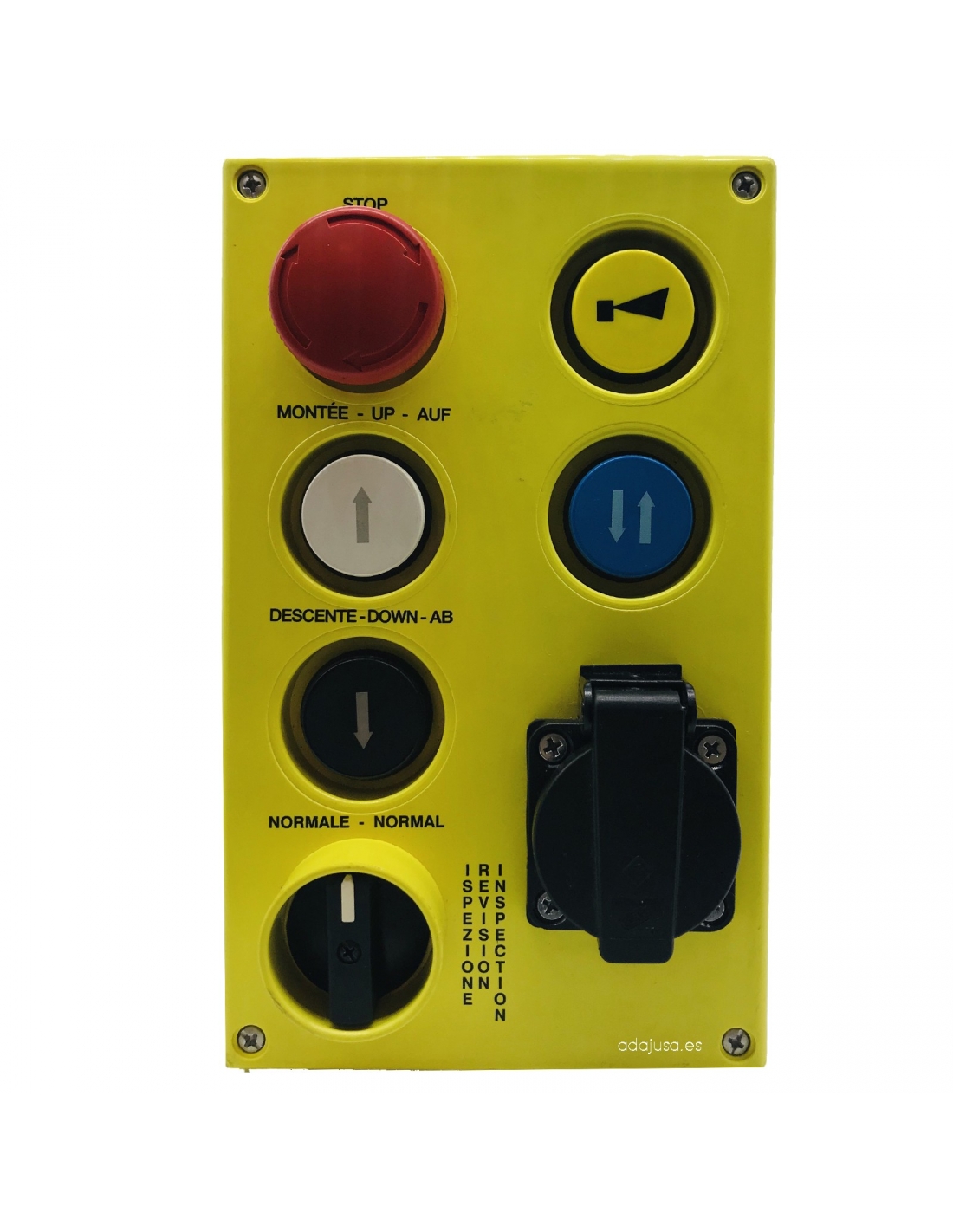

Delivery includes:

  • Box in yellow color
  • Emergency pushbutton mushroom-head diameter 40, with interlocking and mechanical status indication. It has two positive-break closed contacts (NC)
  • Alarm pushbutton, yellow, with 1 open contact (NO).
  • Motion stop push button, blue color, with 1 open contact and 1 closed contact (1 NO+1NC).
  • Normal or inspection mode selector, 1-2 turns 90º. 3 contacts 20A. 3NO+3NC.
  • Up push button, white color, with 2 open contacts and 1 closed contact (2NO+1NC).
  • Down push button, black, with 2 open and 1 closed contacts (2NO+1NC).
  • Power socket, plug base, schuko type of 16A.

Diagrama de contactos GM412

Technical characteristics:

  • Manufacturer: Giovenzana
  • Series: GM
  • Reference: GM412.ES
  • diameter of the mushroom-head: 40mm
  • Operation: Push and pull
  • Case: Made of yellow plastic
  • Maximum voltage from isolation (Ui): 690Vac
  • Nominal thermal intensity (Ith):
    • Push buttons: 16A.
    • Power socket: 16A.
  • Frequency: 50/60Hz
  • Cable inlet: pre-cut for M20
  • Weight
  • Degree of isolation: IP54
  • Standard: IEC/EN 60947-1; IEC/EN 60947-5-1; IEC/EN 60947-5-4; IEC/EN 60947-5-5-5; EN 81.20; EN 81.50

Dibujo modo conexionado bornas tipo resorte Giovenzana

For further information you can download the data sheet by clicking on the "Attachments" tab.
Material for professional use, to be installed in compliance with the regulations in force at the place of installation
