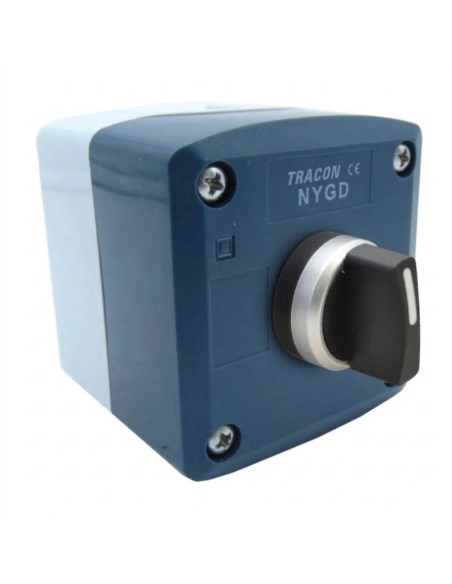

Button box with 3-setting selector NYK3-S31BK| ADAJUSA | price
Button box with 3-setting selector NYK3-S31BK| ADAJUSA | price

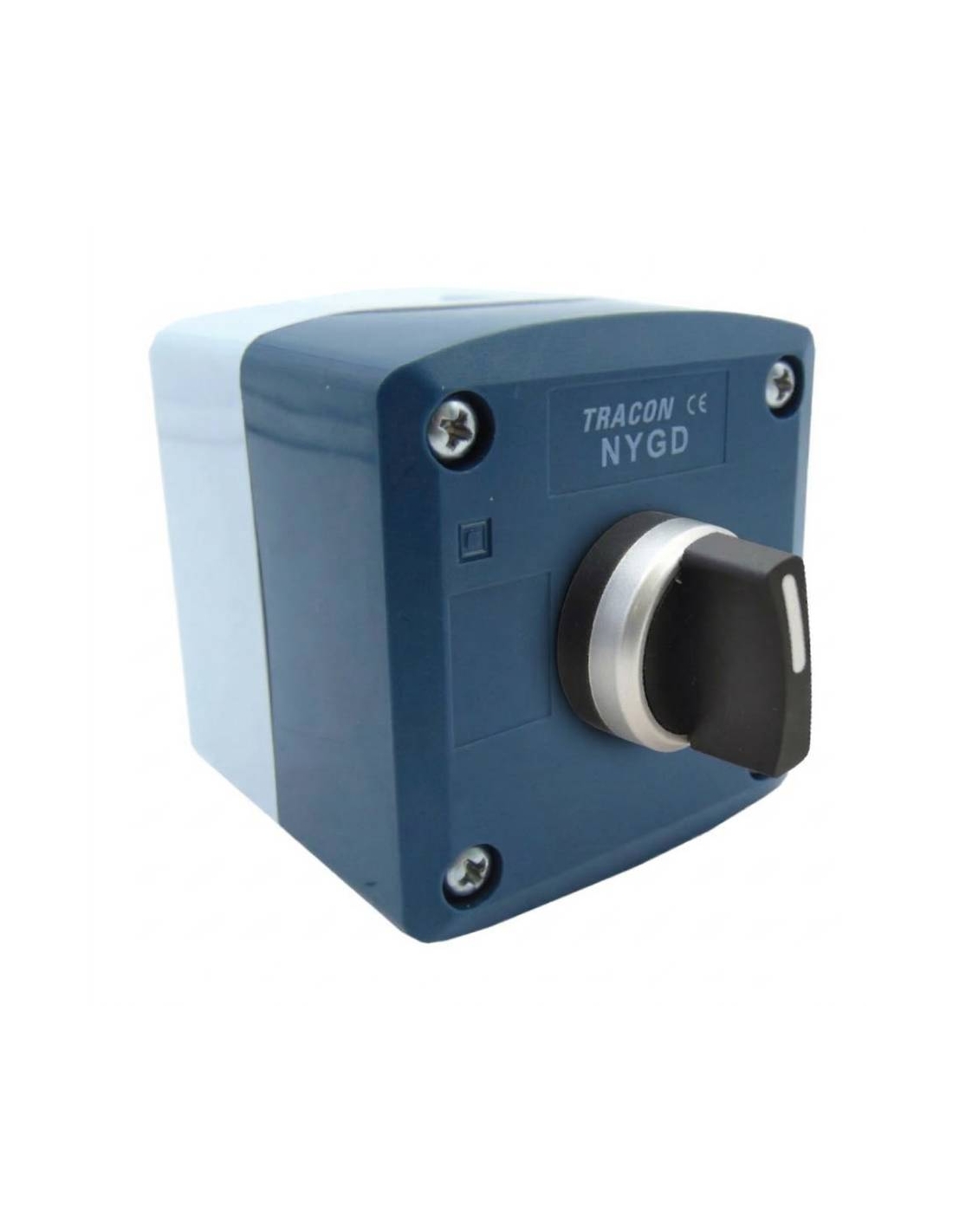

Box with 3-position selector complete - NYG Series

€10.07 Tax included

8.39 tax excl.

PK-NYK3-S31BK

Box with full 3-position selector. Plastic selector of three positions maintained with two open contacts 2(NO), case made of high resistance plastic of grey color and front in dark grey color.


Ordering Number: PK-NYK3-S31BK


Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

This pack contains

No queries yet, leave the first!
Privacy
Shipments
Returns

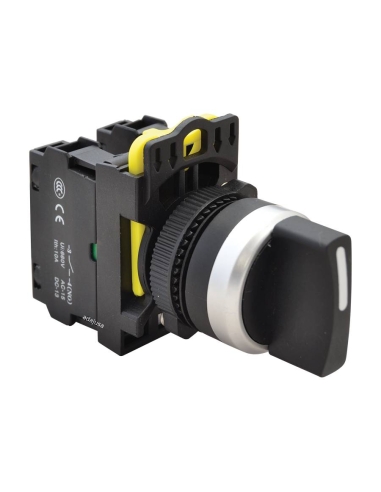

Box with full three-position fixed selector. Plastic selector with short handle with three positions maintained with two open contacts (2NO), case made of high resistance plastic in grey color and front in dark grey color. Degree of protection IP65 from the front side.

The dimensions of the box are: 73x71x65,5mm



The supply does not include the mounting, the box and the push button are supplied loose.



Features:

  • Manufacturer/Supplier: Tracon
  • Part number: PK-NYK3-S31BK
  • Push button type: 3-position selector
  • Push button color: Black
  • Inscription: None
  • Contacts2 open (2NO)
  • Box in light grey/dark grey plastic
  • Drill diameter: 22mm
  • Rated working current (AC 1, 230V): 6A
  • Rated working current (AC 15, 230V): 3A
  • Rated working current (DC 13, 250V): 0.27A
  • Rated insulation voltage: 660V
  • Working temperature: -25ºC to +40ºC
  • Degree of protection: IP65 (from front side)
  • Standards: EN 60947-1; EN 60947-5-1










Material for professional use, install in compliance with the regulations in force at the place of installation.

Questions

Be the first to ask a question about this product!

Question about the product

* Required fields
(read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

16 other products in the same category:

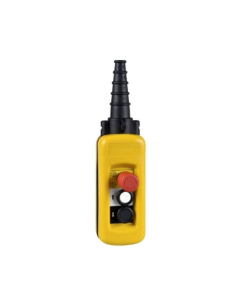

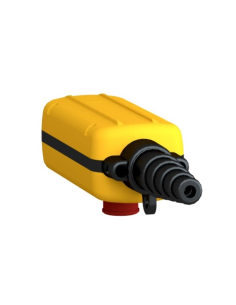

Pendant control station emergency stop and 2 Harmony push buttons XAC SCHNEIDER | ADAJUSA | price Pendant control station emergency stop and 2 Harmony push buttons XAC SCHNEIDER | ADAJUSA | price 2
Lifting elements - crane bridges - hostas

Pendant emergency stop push Button box and 2 push buttons - SCHNEIDER

Schneider
XACA2913
€110.62 (€92.18 tax excl.)
Button box equipped with an emergency stop button and up and down buttons providing 2 speeds (low and high) for each movement. Pendant Box ideal for elevators and crane applications for the control of two-speed motors, made of yellow polypropylene with stepped rubber cable entry.In compliance with the safety requirements of IEC standards. Reference:...
Box command maintenance elevator GM412 - Giovenzana Box command maintenance elevator GM412 - Giovenzana 2
Button boxes with controls already installed

Box command maintenance elevator GM412 - Giovenzana

Giovenzana Internacional B.V.
GI-GM412ES
€119.47 (€99.56 tax excl.)
Button box mounted for maintenance and inspection of elevators. It complies with the specific regulations for elevators and machines, it allows to satisfy all safety requirements. The supply includes: box Emergency pushbutton 2 NC 1NA alarm switch pushbutton. Pushbutton stopped in motion 2NA+1NC. Selector normal or in maintenance 3NA+3NC....

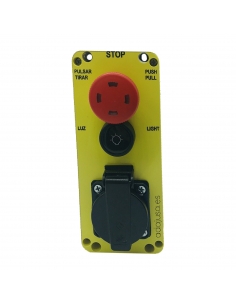

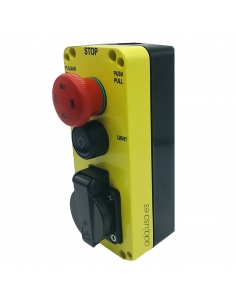

Emergency box light and plug GM series - Giovenzana Emergency box light and plug GM series - Giovenzana 2
Button boxes with controls already installed

Light emergency box and GM402 series plug - Giovenzana

Giovenzana Internacional B.V.
GI-GM402ES
€43.87 (€36.56 tax excl.)
Button box mounted for moat and inspection of elevators. It complies with the specific regulations for elevators and machines, it allows to satisfy all safety requirements. The supply includes: box Emergency pushbutton 1 NC 1NA light  pushbutton Schuko European 16a outlet Reference: GM402/EN Representative image for illustrative...

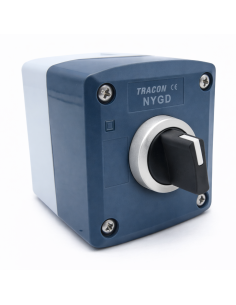

Button box with 3-position selector with right return NYK3-S32BK| ADAJUSA : price
  • Pack
Button boxes with controls already installed

Box with 3-position selector with full right return - NYG Series

TRACON
PK-NYK3-S32BK
€10.07 (€8.39 tax excl.)
Box with 3-position selector with full return. Plastic selector of three positions with return in the position of the right side remaining fixed in the left and central position, with two open contacts 2(NO). Box manufactured in high resistance plastic of gray color and front in dark gray color. Ordering Number: PK-NYK3-S32BK Representative image for...

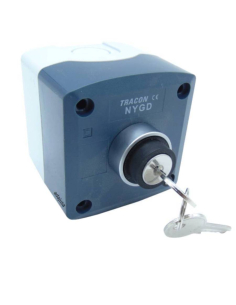

Button box with key selector 2 positions Off with return NYBG61KKT| ADAJUSA | price
  • Pack
Button boxes with controls already installed

Box with metal selector key 2 positions Off with full return - NYG Series

TRACON
PK-NYBG61KKT
€10.87 (€9.06 tax excl.)
Box with 2-position selector activated by a complete key. 2-position metal selector with return (1 fixed position and another keeping it activated) and 1 open contact (NO). Box made of high-resistance gray plastic and dark gray front. IP44 protection grade.The key can be inserted or removed only in the Left "Off" position.Reference: NYBG61KKT...

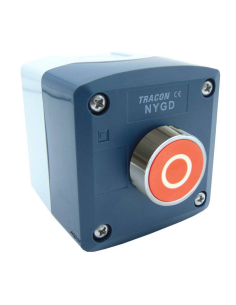

Button box with stop button with "O" inscription NYGBA4222PT| ADAJUSA | price
  • Pack
Button boxes with controls already installed

Box with metal stop pushbutton with full "O" inscription - NYG Series

TRACON
PK-NYGBA4222PT
€9.20 (€7.67 tax excl.)
Box with stop button with "O" inscription. Red metal pushbutton with a closed contact (1NC) and a box made of high-resistance gray plastic with a dark gray front. IP44 protection grade.Reference: NYGBA4222PT Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

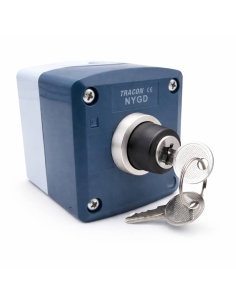

Button box with 3-position key selector switch with return NYK3-K41| ADAJUSA | price
  • Pack
Button boxes with controls already installed

Box with 3-position key selector with full return - NYG Series

TRACON
PK-NYK3-K34
€11.82 (€9.85 tax excl.)
Box with 3-position key-operated selector switch with full return. Three-position plastic selector with key-operated return with one contact open and one contact closed (NO + NC), case made of high resistance plastic in grey color and front in dark grey color. Part number: PK-NYK3-K34 Representative image for illustrative purposes, the item supplied...
Button box with 2-position key selector Off NYBG21KKT| ADAJUSA | price
  • Pack
Button boxes with controls already installed

Box with metal selector key 2 positions Off complete - NYG Series

TRACON
PK-NYBG21KKT
€10.92 (€9.10 tax excl.)
Box with 2-position selector activated by a complete key. Metal selector with 2 maintained position key and 1 open contact (NO), box made of high-resistance gray plastic and dark gray front. IP44 protection grade.The key can be inserted or removed only in the Left "Off" position.Reference: NYBG21KKT Representative image for illustrative purposes, the...
Button box with mushroom push-button stop Ø40 NYG3-ETLR| ADAJUSA | price
  • Pack
Button boxes with controls already installed

Box with mushroom pushbutton Ø40 with full rotation unlocking indication - NYG Series

TRACON
PK-NYG3-ETLR
€13.96 (€11.63 tax excl.)
Box with mushroom type stop push button unlocking by turning, diameter 40mm. Plastic mushroom push button with visual status indication and STOP marking, with a closed contact (1NC) and case made of high resistance plastic in gray color and dark gray front.Reference: PK-NYG3-ETLR Representative image for illustrative purposes, the item supplied will...
Button box with 2-position selector with return NYBD41KSTT| ADAJUSA | price
  • Pack
Button boxes with controls already installed

Box with 2-position metal selector with full return - NYG Series

TRACON
PK-NYBD41KSTT
€9.37 (€7.81 tax excl.)
Box with complete 2-position selector. 2-position short lever metal selector with return (1 fixed position and another keeping it activated) and 1 open contact (NO). Box made of high-resistance gray plastic and dark gray front. IP44 protection grade.Reference: NYBD41KSTT Representative image for illustrative purposes, the item supplied will correspond...

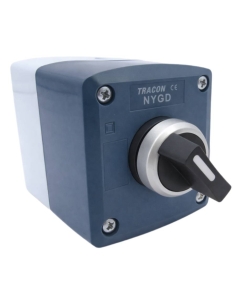

Button box with 2-setting selector NYK3-S21BK| ADAJUSA | price
