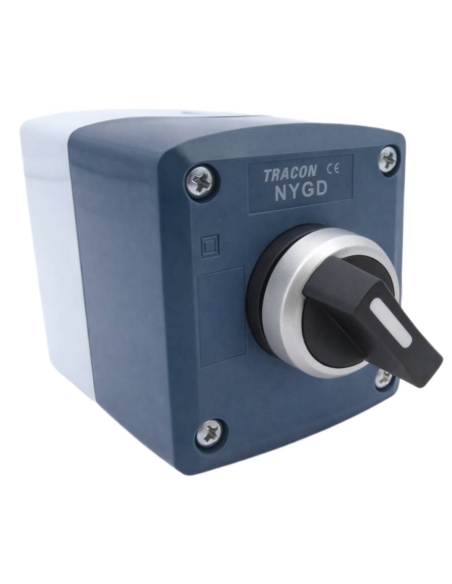

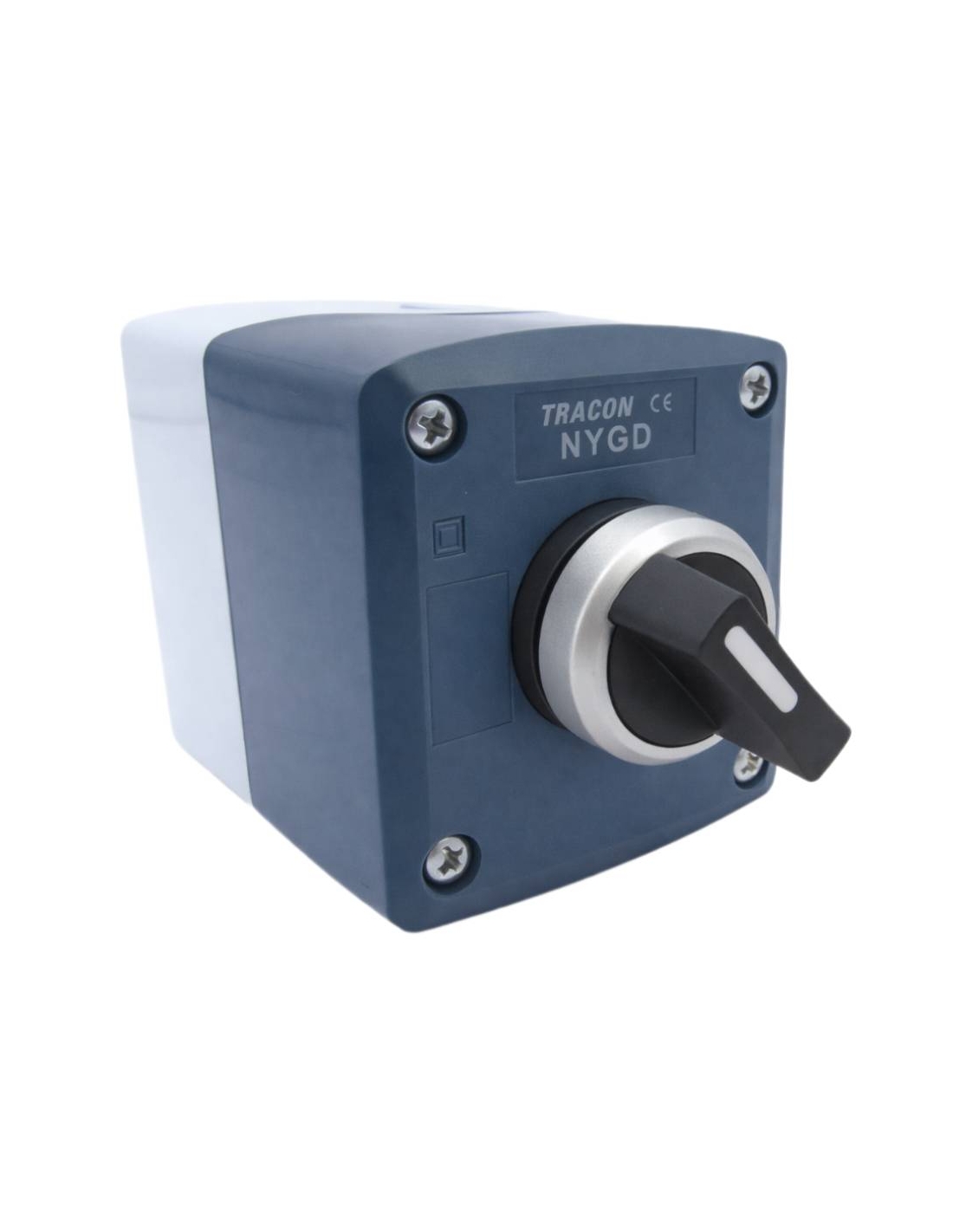

Button box with 2-setting selector NYK3-S21BK| ADAJUSA | price
Button box with 2-setting selector NYK3-S21BK| ADAJUSA | price

Box with 2-position selector complete - NYG Series

€10.07 Tax included

8.39 tax excl.

PK-NYK3-S21BK

Box with full 2 position selector. Plastic selector with two positions maintained with one contact open and one contact closed (NO + NC), case made of high resistance plastic in grey color and front in dark grey color.


Part number: PK-NYK3-S21BK


Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

This pack contains

No queries yet, leave the first!
Privacy
Shipments
Returns


Box with full two-position fixed selector. Plastic selector with short handle with two positions maintained with one contact open and one contact closed (NO + NC), case made of high resistance plastic in grey color and front in dark grey color. Degree of protection IP65 from the front side.

The dimensions of the box are: 73x71x65,5mm



The supply does not include the mounting, the box and the push button are supplied loose.



Features:

  • Manufacturer/Supplier: Tracon
  • Part number: PK-NYK3-S21BK
  • Push button type: 2-position selector
  • Push button color: Black
  • Inscription: None
  • Contacts1 open (NO), 1 closed (1NC)
  • Box in light grey/dark grey plastic
  • Bore diameter: 22mm
  • Rated working current (AC 1, 230V): 6A
  • Rated working current (AC 15, 230V): 3A
  • Rated working current (DC 13, 250V): 0.27A
  • Rated insulation voltage: 660V
  • Working temperature: -25ºC to +40ºC
  • Degree of protection: IP65 (from front side)
  • Standards: EN 60947-1; EN 60947-5-1










Material for professional use, install in compliance with the regulations in force at the place of installation.

Questions

Be the first to ask a question about this product!

Question about the product

* Required fields
(read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

16 other products in the same category:

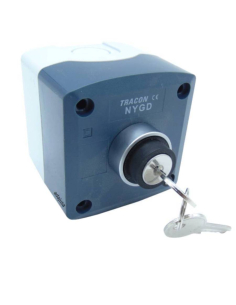

Button box with key selector 3 positions Off with return NYBG73KKT| ADAJUSA | price
  • Pack
Button boxes with controls already installed

Box with metal selector key 3 positions Off with full return - NYG Series

TRACON
PK-NYBG73KKT
€11.75 (€9.79 tax excl.)
Box with 3-position selector activated by a complete key. 3-position metal selector with return (1 fixed position and 2 others keeping it activated) and 2 open contacts (2NO). Box made of high-resistance gray plastic and dark gray front. IP44 protection grade.The key can be inserted or removed only in the center "Off" position.Reference: NYBG73KKT...

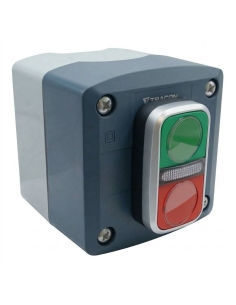

Button box with start-stop push button NYG3-D| ADAJUSA | price
  • Pack
Button boxes with controls already installed

Box with full start-stop pushbutton - NYG Series

TRACON
PK-NYG3-D
€10.87 (€9.06 tax excl.)
Box with full start-stop push button. Double plastic on-off push button with one contact open and one contact closed (1NO + NC), case made of high resistance plastic in grey color and front in dark grey color. Part number: PK-NYG3-D Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

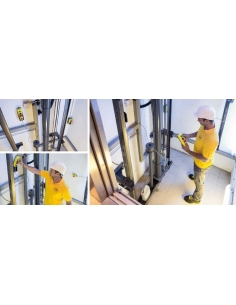

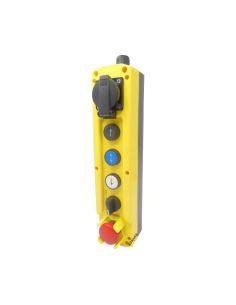

TLP6E1 Giovenzana button - adajusa TLP6E1 Giovenzana button - adajusa 2
Button boxes with controls already installed

TLP6E1 - Giovenzana type button

Giovenzana Internacional B.V.
GI-TLP6E1
€57.55 (€47.96 tax excl.)
Button box mounted for moat and inspection of elevators, with pushbuttons with monoblock contacts, IP-54. It complies with the specific regulations for elevators and machines, it allows to satisfy all safety requirements. The supply includes: Box for 5 elements with socket for plug type schuko. Emergency pushbutton 1 NC (Possibility to mount another...
View

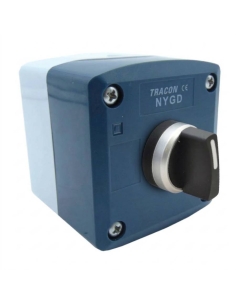

Button box with 3-setting selector NYK3-S31BK| ADAJUSA | price
  • Pack
Button boxes with controls already installed

Box with 3-position selector complete - NYG Series

TRACON
PK-NYK3-S31BK
€10.07 (€8.39 tax excl.)
Box with full 3-position selector. Plastic selector of three positions maintained with two open contacts 2(NO), case made of high resistance plastic of grey color and front in dark grey color. Ordering Number: PK-NYK3-S31BK Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

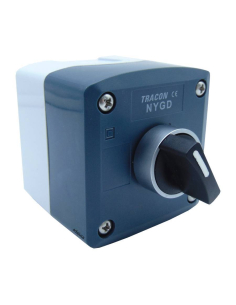

Button box with 3-position selector with return NYBD53KSTT| ADAJUSA | price
  • Pack
Button boxes with controls already installed

Box with 3-position metal selector with full return - NYG Series

TRACON
PK-NYBD53KSTT
€10.96 (€9.13 tax excl.)
Box with complete 3-position selector. Short lever metal selector with 3 positions with return (1 fixed position and 2 others keeping it activated) and 2 open contacts (2NO). Box made of high-resistance gray plastic and dark gray front. IP44 protection grade.Reference: NYBD53KSTT Representative image for illustrative purposes, the item supplied will...

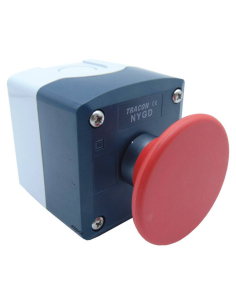

Button box with mushroom stop button Ø60 NYGBR42PT| ADAJUSA | price
  • Pack
Button boxes with controls already installed

Box with metal stop mushroom push button Ø60 complete - NYG Series

TRACON
PK-NYGBR42PT
€10.07 (€8.39 tax excl.)
Box with non- interlocking mushroom stop button, diameter 60mm. Red metal pushbutton with a closed contact (1NC) and a box made of high-resistance gray plastic with a dark gray front. IP44 protection grade.Reference: NYGBR42PT Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.
Button box with 2-position selector with return NYBD41KSTT| ADAJUSA | price
  • Pack
Button boxes with controls already installed

Box with 2-position metal selector with full return - NYG Series

TRACON
PK-NYBD41KSTT
€9.37 (€7.81 tax excl.)
Box with complete 2-position selector. 2-position short lever metal selector with return (1 fixed position and another keeping it activated) and 1 open contact (NO). Box made of high-resistance gray plastic and dark gray front. IP44 protection grade.Reference: NYBD41KSTT Representative image for illustrative purposes, the item supplied will correspond...
Button box with Ø40 mushroom stop button with interlocking NYG542P40T| ADAJUSA | price
  • Pack
Button boxes with controls already installed

Box with metal mushroom stop button with interlocking complete - NYG Series

TRACON
PK-NYG542P40T
€10.01 (€8.34 tax excl.)
Box with 40mm diameter mushroom stop button with complete interlocking . Red metal pushbutton with a closed contact (1NC) and a box made of high-resistance gray plastic with a dark gray front. IP44 protection grade.Reference: NYG542P40T Representative image for illustrative purposes, the item supplied will correspond to the indicated...

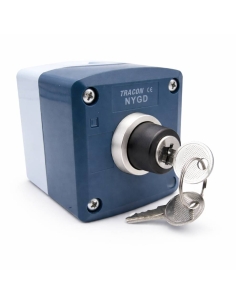

Button box with 2-position key selector switch with return NYK3-K24| ADAJUSA | price
  • Pack
Button boxes with controls already installed

Box with 2-position key selector with full return - NYG Series

TRACON
PK-NYK3-K24
€11.96 (€9.97 tax excl.)
Box with 2-position key-operated selector switch with full return. Two-position plastic selector with key-operated return with one contact open and one contact closed (NO + NC), case made of high resistance plastic in grey color and front in dark grey color. Part number: PK-NYK3-K24 Representative image for illustrative purposes, the item supplied...

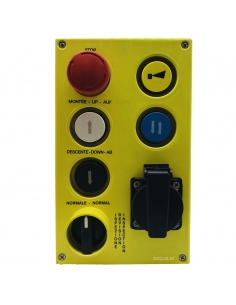

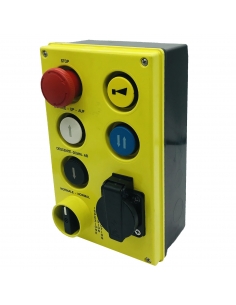

Box command maintenance elevator GM412 - Giovenzana Box command maintenance elevator GM412 - Giovenzana 2
Button boxes with controls already installed

Box command maintenance elevator GM412 - Giovenzana

Giovenzana Internacional B.V.
GI-GM412ES
€119.47 (€99.56 tax excl.)
Button box mounted for maintenance and inspection of elevators. It complies with the specific regulations for elevators and machines, it allows to satisfy all safety requirements. The supply includes: box Emergency pushbutton 2 NC 1NA alarm switch pushbutton. Pushbutton stopped in motion 2NA+1NC. Selector normal or in maintenance 3NA+3NC....

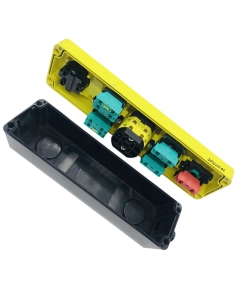

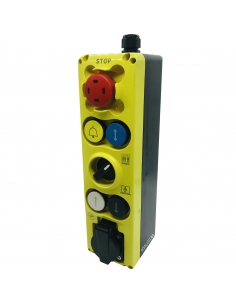

Box control maintenance elevator cab GM751 - Giovenzana Box control maintenance elevator cab GM751 - Giovenzana 2
Button boxes with controls already installed

Box control maintenance elevator cab GM750 - Giovenzana

Giovenzana Internacional B.V.
GI-GM750ES
€102.64 (€85.53 tax excl.)
Assembled pushbutton box for car maintenance and inspection of elevators It complies with the specific regulations for elevators and machines, and meets all safety requirements. The supply includes: Box Emergency push button 1 NC Alarm switch push button 1NA. Push button stop in movement. Normal or maintenance selector. Up push button. Down...

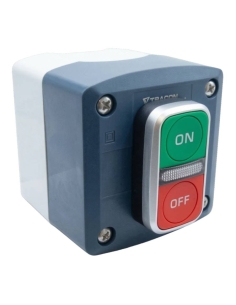

Button box with start-stop push button NYG3-D2| ADAJUSA | price
  • Pack
Button boxes with controls already installed

Box with complete ON-OFF push button - NYG Series

TRACON
PK-NYG3-D2
€10.87 (€9.06 tax excl.)
Box with full on-off push button. Double plastic ON-OFF plastic push button with ON-OFF inscription with one open and one closed contact (1NO + NC). Box made of high resistance plastic in grey color and front in dark grey color. Reference: PK-NYG3-D2 Representative image for illustrative purposes, the item supplied will correspond to the...

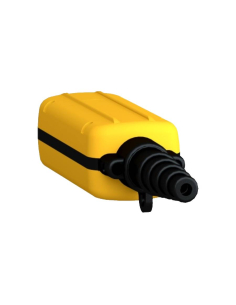

Pendant control station 2 cuts Harmony XAC SCHNEIDER | ADAJUSA | price Pendant control station 2 cuts Harmony XAC SCHNEIDER | ADAJUSA | price 2
Lifting elements - crane bridges - hostas

Empty pendant push Button box 2 push buttons - SCHNEIDER

Schneider
XACA02
€52.06 (€43.38 tax excl.)
Empty Button box with die-cut for two push-buttons, allows for custom composition by adding the necessary control units for machinery control and general use. Pendant control Box ideal for elevators and crane applications, made of yellow polypropylene with stepped rubber cable entry.Compatible with push buttons, pilot lights, switches and selectors with a...

Customers who bought this product also bought:

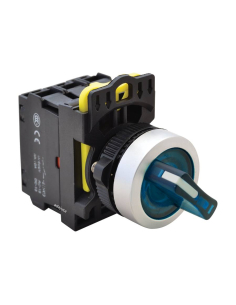

Blue luminous selector switch 2 positions 1NA+1NC 22mm NYK3-SL21B| ADAJUSA | price
