Red mushroom pushbutton closed contact (NC) - NY Series
€2.93
Tax included
€2.44 tax excl.

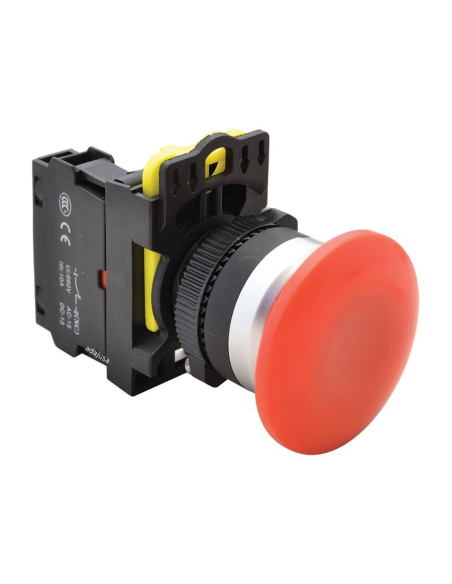

Red mushroom-shaped pushbutton, 40 mm in diameter , with one closed contact (NC) . Non- interlocking plastic mushroom-shaped pushbutton, with a 22 mm mounting hole diameter. Intended for mounting on machinery control panels and control boxes in general. It features high protection on the front side, IP65.
The supply includes the complete pushbutton with one closed contact (1 NC). Cable fixing with a screw. This pushbutton is not an emergency stop.
Reference: NYG3-MR
Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.
Red, 40mm diameter mushroom-shaped pushbutton with one closed (NC) contact. This non interlocking pushbutton is made of high-strength plastic and features a modern design, suitable for mounting on electrical control panels for machinery and electrical control boxes in general. The pushbutton head bracket allows for mounting up to three contacts, both open and closed. This electric pushbutton is typically used as a stop button for machinery, motors, and electrical equipment. The mounting hole diameter is 22mm.
Designed for intensive applications requiring high operational reliability and ease of assembly. The pushbutton can be installed on panels, electrical control cabinets, and control boxes for machinery, air conditioning, industrial, and general applications. It features high protection on the front side, IP65.
The supply includes the complete pushbutton with a closed contact. Additional contacts can be added.
NOTE: This push button is not an emergency stop button.
Characteristics:
- Manufacturer: TRACON
- Reference: NYG3-MR
- Head color: Red
- Head inscription: None
- Mushroom diameter: 40mm
- Mounting hole: 22mm
- Material: Plastic
- Contact : 1 closed (NC). Possibility of mounting additional contacts
- Nominal working current Ie (AC 1, 230V): 6A
- Nominal working current Ie (AC 15, 230V): 3A
- Nominal working current Ie (DC 13, 250V): 0.27A
- Nominal insulation voltage Ui: 660V
- Mechanical durability: 50,000 cycles
- Operating temperature: -25 to +40ºC
- Protection class: IP65 (from the front side)
- Regulation: EN 60947-1, EN 60947-5-1
Professional use material, install in compliance with the regulations in force at the place of installation.
