Electric pedal

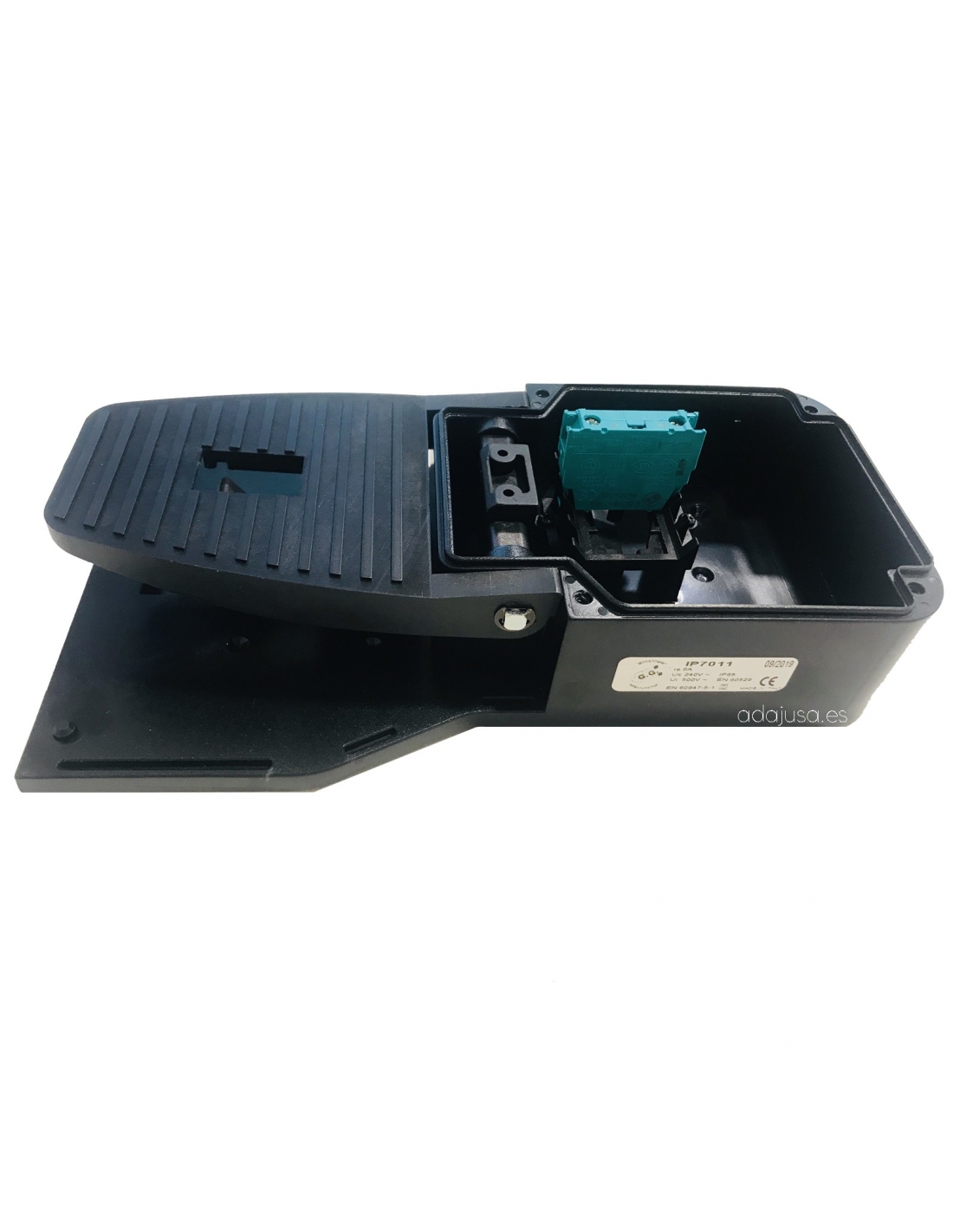

Electric pedal with interlock - Giovenzana
Electric pedal with interlock - Giovenzana
Electric pedal
Electric pedal with interlock - Giovenzana
Electric pedal with interlock - Giovenzana

Electric pedal with interlock - Giovenzana

€52.85 Tax included

€43.68 tax excl.

Electric pedal with interlocking device (Bistable), made of thermoplastic with protective cover.

Pedal switches are used as control switches for machines and equipment when the operator needs to have a free hand.

Color: yellow

Reference: IP7011

simbolo contacto abierto

Out of stock

No queries yet, leave the first!


Electric pedal with mechanical interlocking device, manufactured in high strength thermoplastic material with protective cover for industrial and general applications. The electric pedal incorporates a slow-breaking open electric contact (NA).

Pedal switches are used as machine and equipment control switches when the operator needs to have their hands free to perform other functions and for the pedal to remain activated once the foot is removed. It will permeate in this position until it declaves with the front of the foot.

The pedals have a protective cover against accidental fall actuation of objects or accidental pulsations. It also has rubber stops at the base to prevent slipping.

The degree of protection of the electric pedal is IP-65.

In addition, 3 contact beds can be added, open or closed. The maximum number of contacts per pedal is 4.

Feature Summary:

  • Manufacturer: Giovenzana.
  • Reference: IP7011.
  • Material: Thermoplastic.
  • Color: Yellow (pantone 102C).
  • Contact type: NA.
  • Break type: Slow.
  • Maximum insulation voltage (Ui): 690V.
  • Nominal thermal current (Ith): 10A.
  • Nominal operating current (In) in AC-15 AC current category:
    • 24Vac: 16A.
    • 48Vac: 12A.
    • 120Vac: 8A.
    • 240Vac: 6A.
    • 400Vac: 4.5A.
    • 440Vac: 3.5A.
    • 500Vac: 1A.
    • 690Vac: 1A.
  • Nominal operating current (In) in category DC-15 DC current:
    • 24Vdc: 2A.
    • 48Vdc: 1.2A.
    • 110Vdc: 0.4A.
    • 220Vdc: 0.25A.
  • Contact resistance:
  • Positivity: Positive opening NC contact.
  • Degree of protection: IP65.
  • Cable input: 16.5mm.
  • Operating ambient temperature: -25o.. +70oC.
  • Compliance: IEC/EN60947-5-4.

Dimensions:

Dimensiones pedal electrico Giovenzana

Only Giovenzana contact blocks can be added. 2 more contacts can be added to the pedal.

Additional contact references that can be added are:

  • Open contact screw connection: GI-PL004002
  • Closed contact screw connection: GI-PL004001
  • Open spring connection contact: GI-PCW10
  • Closed spring connection contact: GI-PCW01
