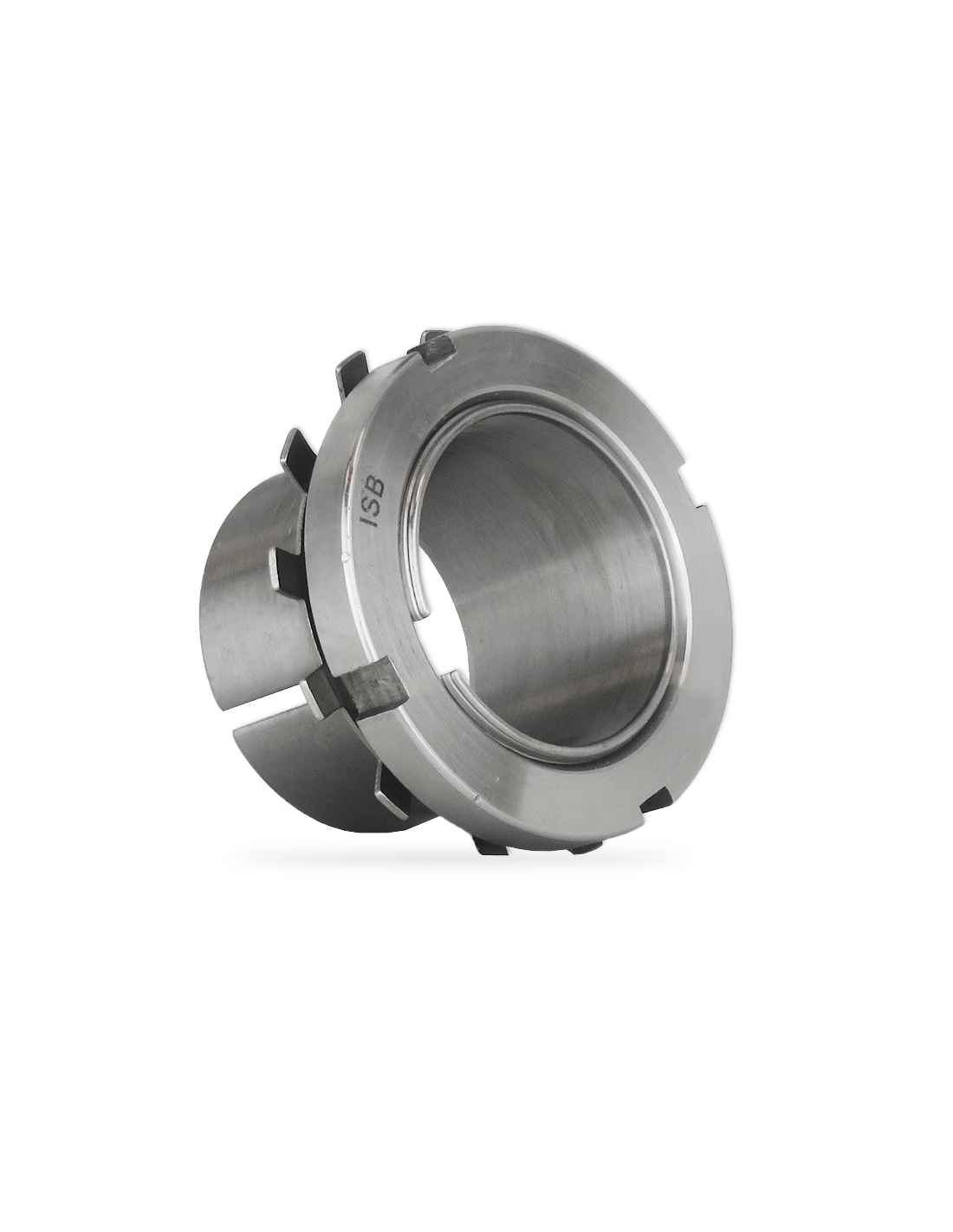

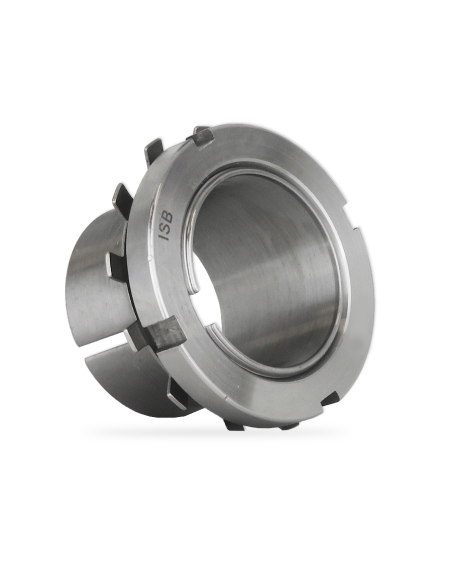

Sleeves for bearings 17x32x24 mm Series H - ISB

€2.90 Tax included

€2.40 tax excl.

Fixing sleeves with nut and lock washer measuring 17x32x24 mm complete. Used to lock the bearings, facilitating the fixing, assembly and disassembly of the bearings.

Reference: H 204






Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

No queries yet, leave the first!

Fixing sleeves are useful for locking bearings with a tapered hole on cylindrical shafts.

Manufactured in a conical shape and cut longitudinally to best adapt to the dimensions of the bearing hole.
Delivery includes one locking nut KM 4 and one lock washer MB 4

Features of the sleeves:
  • Manufacturer: ISB
  • Reference: H 204
  • Internal diameter (d1): 17mm
  • Outer diameter (d): 20mm
  • Outer diameter of lock nut (d3): 32mm
  • Sleeve width (B1): 24mm
  • Width of nut with washer (B2): 7 mm
  • Nut Metric (G): M20x1
  • Weight: 0.036kg
  • Lock nut: KM 4
  • Lock washer: MB 4


cuff dimensions table
sleeves2 dimension table

Material for professional use, install in compliance with the regulations in force at the installation site.
