Sleeves for bearings 30x52x35 mm Series H - ISB

€4.49 Tax included

€3.71 tax excl.

Fixing sleeves with nut and lock washer measuring 30x52x35 mm complete. Used to lock the bearings, facilitating the fixing, assembly and disassembly of the bearings.

Reference: H 307

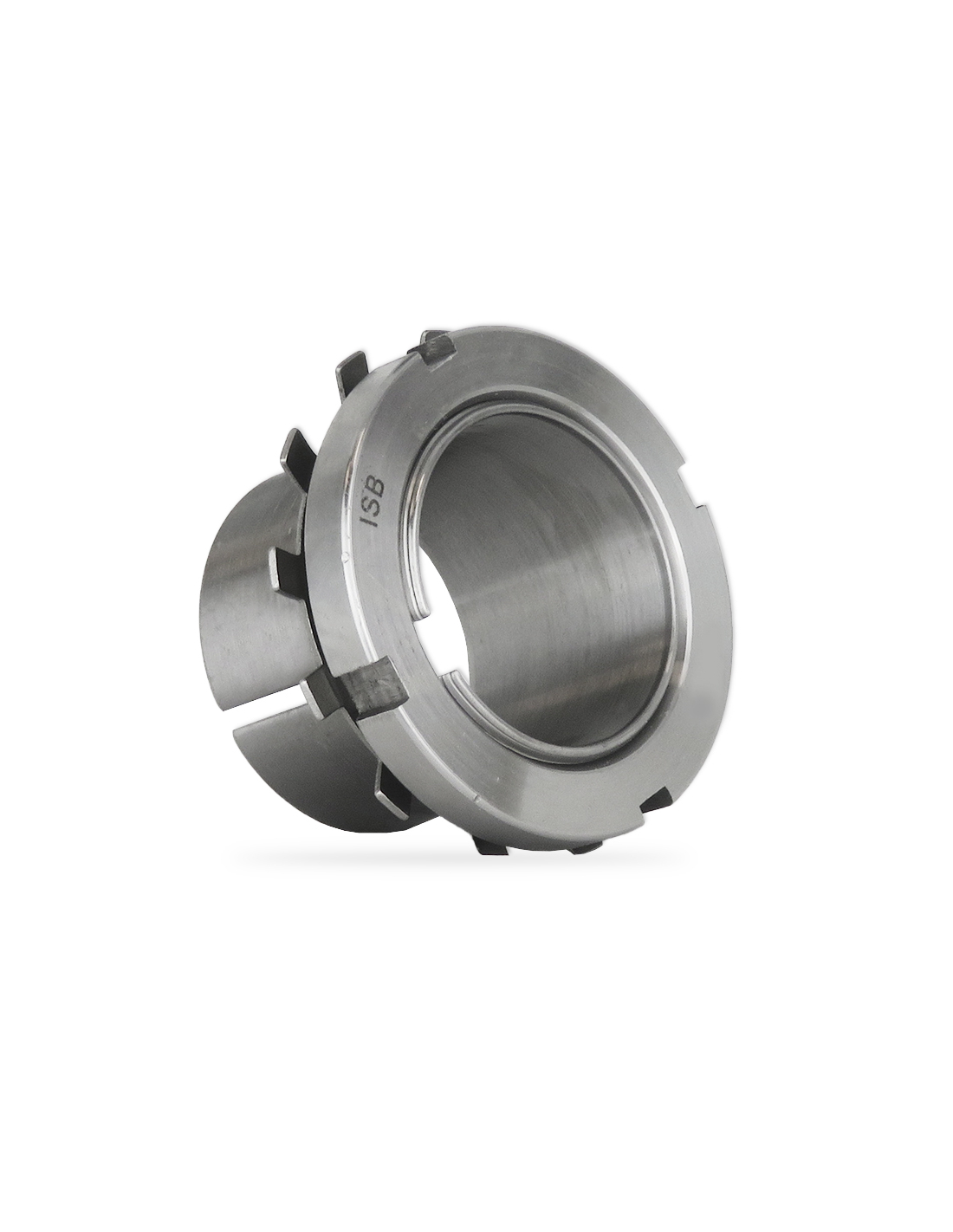

Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

No queries yet, leave the first!

Fixing sleeves are useful for locking bearings with a tapered hole on cylindrical shafts.

Manufactured in a conical shape and cut longitudinally to best adapt to the dimensions of the bearing hole.
Delivery includes one locking nut KM 7 and one lock washer MB 7

Features of the sleeves:
  • Manufacturer: ISB
  • Reference: H 307
  • Internal diameter (d1): 30mm
  • Outer diameter (d): 35mm
  • Outer diameter of lock nut (d3): 52mm
  • Sleeve width (B1): 35mm
  • Width of nut with washer (B2): 10 mm
  • Nut Metric (G): M35x1.5
  • Weight: 0.14kg
  • Lock nut: KM 7
  • Lock washer: MB 7


cuff dimensions table
sleeves2 dimension table

Material for professional use, install in compliance with the regulations in force at the installation site.
