Sleeves for bearings 35x58x36 mm Series H - ISB

€5.19 Tax included

€4.29 tax excl.

Fixing sleeves with nut and lock washer measuring 35x58x36 mm complete. Used to lock the bearings, facilitating the fixing, assembly and disassembly of the bearings.

Reference: H 308

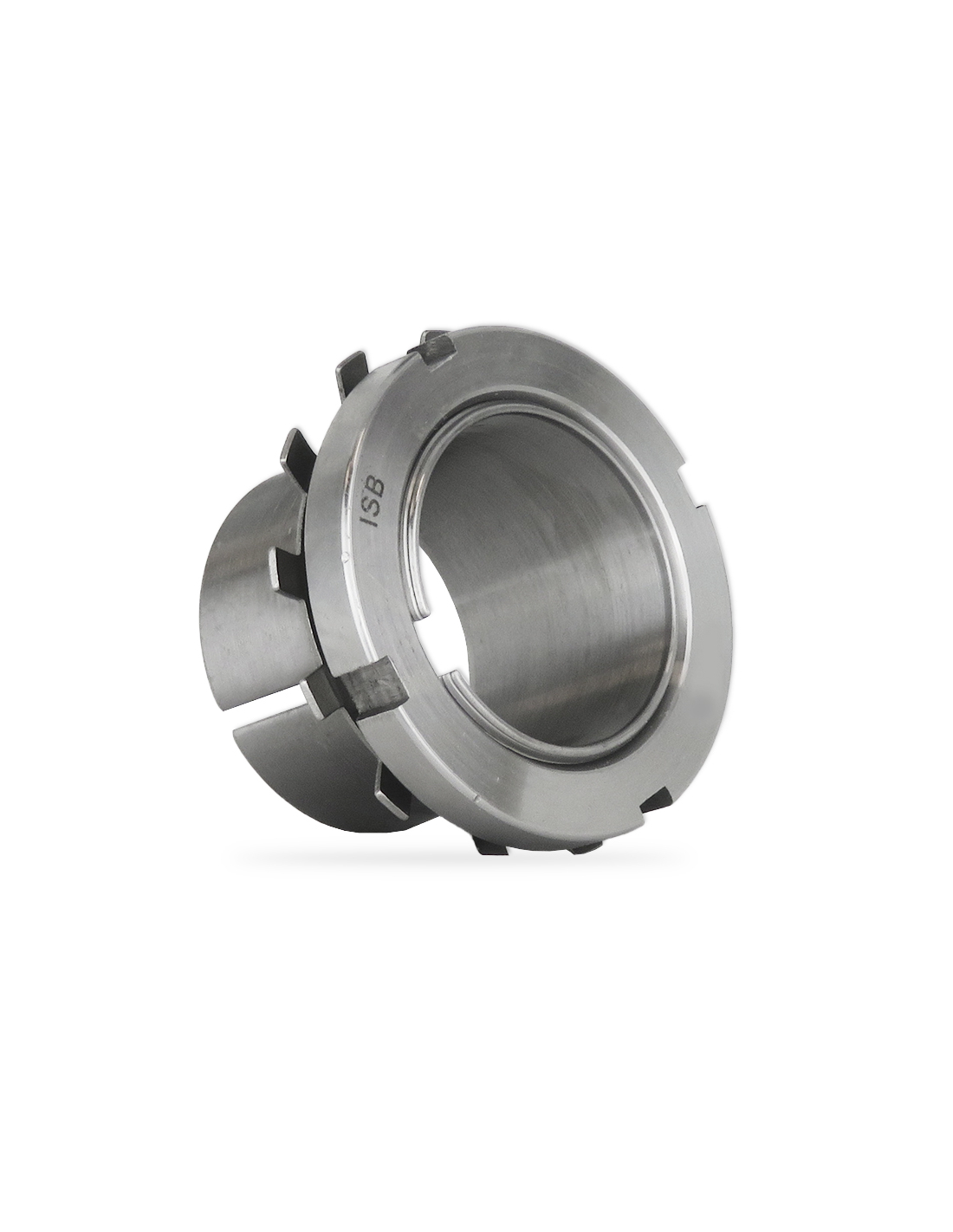

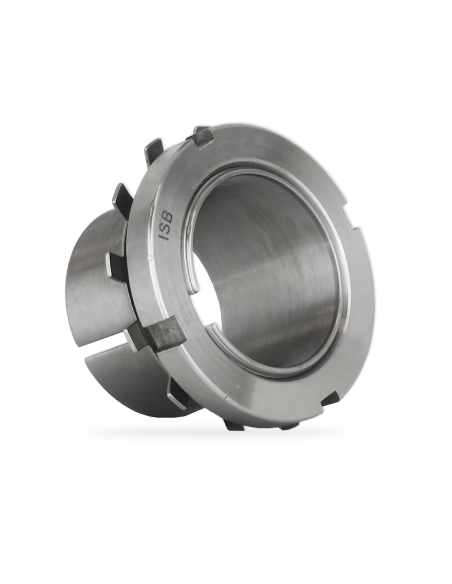

Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

No queries yet, leave the first!

Fixing sleeves are useful for locking bearings with a tapered hole on cylindrical shafts.

Manufactured in a conical shape and cut longitudinally to best adapt to the dimensions of the bearing hole.
Delivery includes one locking nut KM 8 and one lock washer MB 8

Features of the sleeves:
  • Manufacturer: ISB
  • Reference: H 308
  • Internal diameter (d1): 35mm
  • Outer diameter (d): 40mm
  • Outer diameter of lock nut (d3): 58mm
  • Cuff width (B1): 36mm
  • Width of nut with washer (B2): 11 mm
  • Nut Metric (G): M40x1.5
  • Weight: 0.17kg
  • Lock nut: KM 8
  • Lock washer: MB 8


cuff dimensions table
sleeves2 dimension table

Material for professional use, install in compliance with the regulations in force at the installation site.
