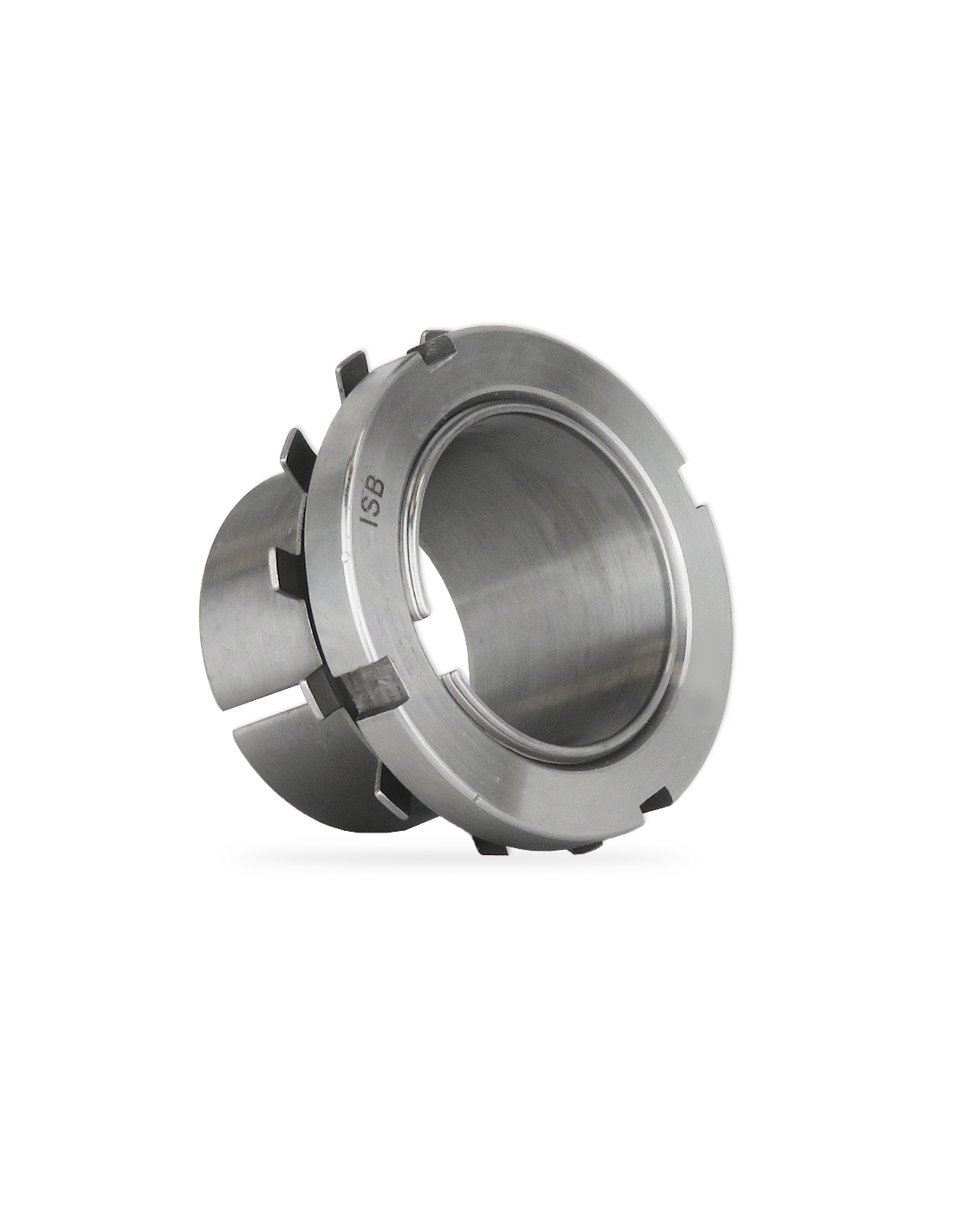

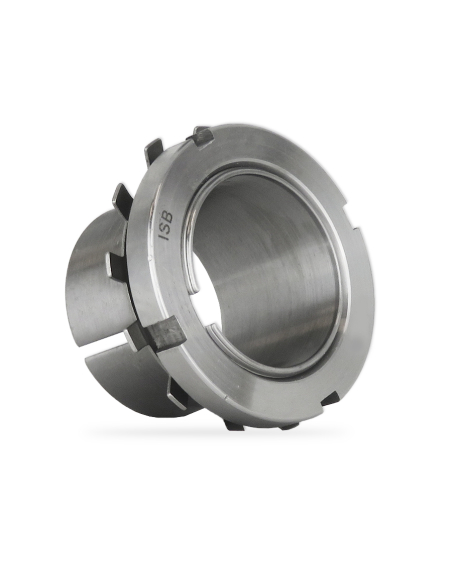

Sleeves for bearings 100x145x105 mm Series H - ISB

€59.53 Tax included

€49.20 tax excl.

Fixing sleeves with nut and lock washer measuring 100x145x105 mm complete. Used to lock the bearings, facilitating the fixing, assembly and disassembly of the bearings.

Reference: H 2322






Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

No queries yet, leave the first!

Fixing sleeves are useful for locking bearings with a tapered hole on cylindrical shafts.

Manufactured in a conical shape and cut longitudinally to best adapt to the dimensions of the bearing hole.
Delivery includes one locking nut KM 22 and one lock washer MB 22

Features of the sleeves:
  • Manufacturer: ISB
  • Reference: H 2322
  • Internal diameter (d1): 100mm
  • Outer diameter (d): 110mm
  • Outer diameter of lock nut (d3): 145mm
  • Sleeve width (B1): 105mm
  • Width of nut with washer (B2): 21 mm
  • Nut Metric (G): M110x2
  • Weight: 2.75kg
  • Lock nut: KM 22
  • Lock washer: MB 22


cuff dimensions table
sleeves2 dimension table

Material for professional use, install in compliance with the regulations in force at the installation site.
