Manual lever valve 1/2 5/2 bistable return spring lever 90 degrees - Metal Work

€172.57 Tax included

€143.81 tax excl.

7030000400

Valve of 1/2 manual actuation by angle lever to 90º bistable. 5 ways 2 fixed positions, metal body. For control of double cylinders

Reference: 7030000400

Logotipo Metal Work

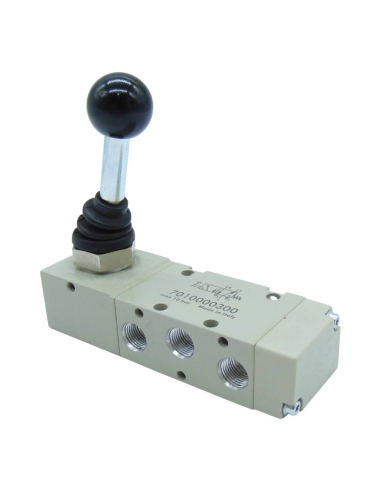

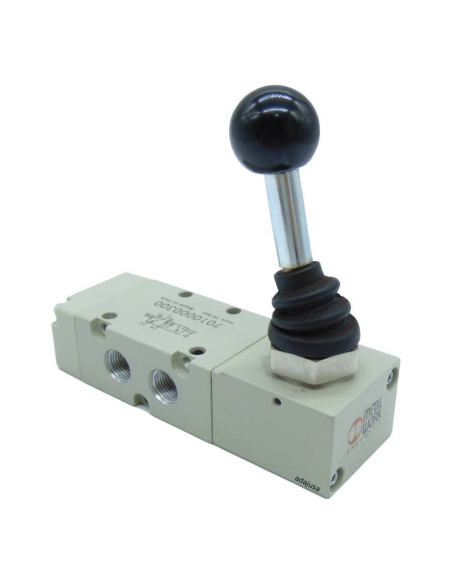

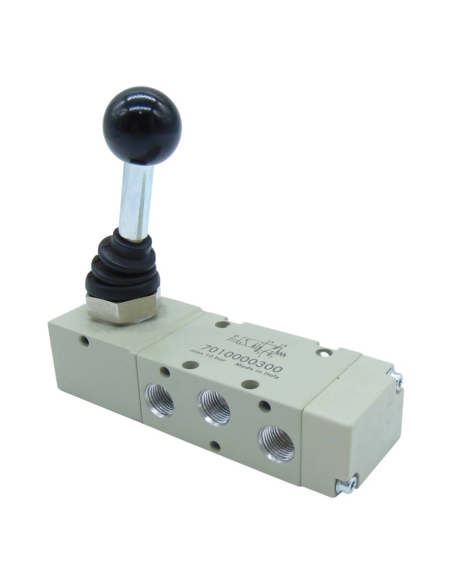

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Valve of 1/2 manual drive by bistable lever of 2 fixed positions, 5 ways 2 fixed positions, which allow to control double effect cylinders. In one position the cylinder is collected, in another position the cylinder advances. it can also be used as a passage valve or pneumatic circuit cut-off.

Specifications:

  • Manufacturer: Metal Work.
  • Reference: MAV 45 OO. Code: 7030000400.
  • Fluid: Pressurized or vacuum air, with or without lubrication.
  • Valve Body: aluminum.
  • Sliding material: Nickel-plated aluminum.
  • Joints: NBR.
  • number of tracks:
  • Size: 1/2".
  • Positions: 2 return per spring.
  • Control: By lever.
  • Working pressure: Vacuum÷10 bar.
  • Temperature: -10÷60ºC.
  • Nominal diameter: 15
  • Conductance C (N/min.bar): 971.43
  • Flow rate at 6bar ΔP 0.5bar: 3200Nl/min.
  • Flow rate at 6bar ΔP 1bar: 4600Nl/min.
  • Installation: in any position.

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab
