Pneumatic valve 1/2 4-way 2 position lever MVHC-402-4H-15A | ADAJUSA
Pneumatic valve 1/2 4-way 2 position lever MVHC-402-4H-15A | ADAJUSA
Pneumatic valve 1/2 4-way 2 position lever MVHC-402-4H-15A | ADAJUSA
Pneumatic valve 1/2 4-way 2 position lever MVHC-402-4H-15A | ADAJUSA

Valve 1/2 4-way 2 rotary lever positions Size 3 - Mindman

€50.90 Tax included

42.42 tax excl.

MVHC4024H15A

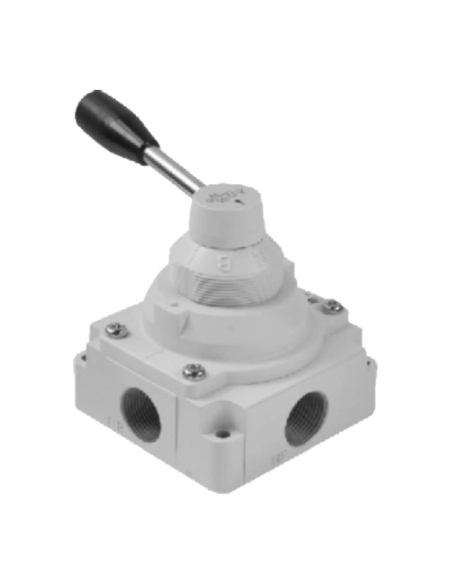

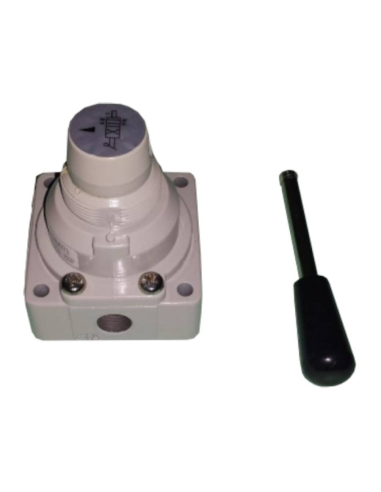

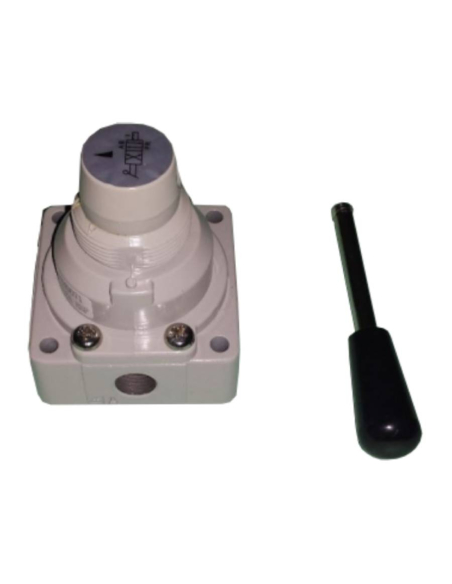

Valve of 1/2 manual drive by rotary lever. 4 ways 2 positions, metal body. For control of single and double effect cylinders.

Reference: 281MVHC4024H15A


https://rodavigo.net/datos/logos-marcas-png/th_mindman.pngRepresentative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

1 question about the product
Privacy
Shipments
Returns


1/2 manual drive valve by 2 fixed position rotary lever, 4-way 2 positions that allow to control single and double effect cylinders. In one position the cylinder is collected, in another position the cylinder advances. It can also be used as a pass valve or pneumatic circuit cut-off.

Fastening by through screws or transpanel mounting with front nut fastening. Mounting accessories not included in the supply.

Technical characteristics:

  • Manufacturer: Mindman.
  • Reference: MVHC-402-4H-15A.
  • Configuration: 4 ways 2 fixed positions.
  • Thread type: G 1/2".
  • Effective surface: 64mm2.
  • Fluid type: Air under pressure, with or without lubrication.
  • Working pressure: 0 to 10 Kgr.
  • Working temperature: -5o to +60o (Non-condensing).
  • Screw fastening: 4 through holes 7mm.
  • Nut fixing: M50x1.5mm nut (Not included).
  • Valve body material: Metal.
  • Weight: 1250 g.

For other models consult. You can download the catalog by clicking on the DOWNLOADS tab.
