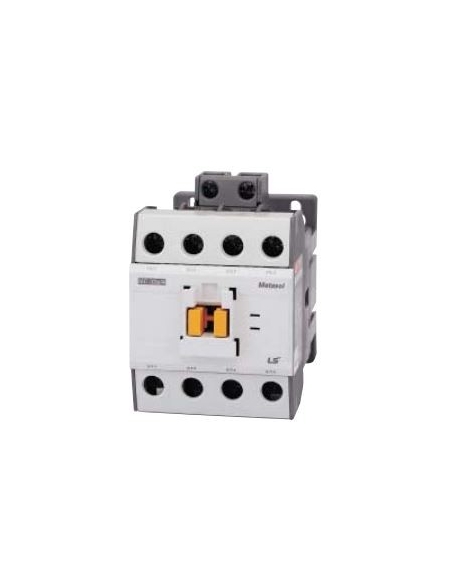

Tetrapolar contactor 50A coil 230Vac - LS
Tetrapolar contactor 50A coil 230Vac - LS

Four-pole contactor 50A coil 230Vac - LS

€63.84 Tax included

€52.76 tax excl.

Four-pole contactor equipped with high-capacity contacts for controlling electrical systems, generating sets, or general uses, 4-pole with a current capacity of 50A in AC1 or 32A in AC3, with 230Vac coil.

Maximum power AC1 (400Vac): 35kW.

Reference: MC-32a/4 AC230V 50/60HZ

4-pole contactor electrical diagram

Logo LS LG industrial Systems

Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

No queries yet, leave the first!
Privacy
Shipments
Returns


Four-pole contactor (4 poles) of 50A in category AC1 or 32A in category AC3, the contactor is equipped with highly robust main contacts, suitable for demanding applications for controlling electrical systems, generating sets and general use. The contactor can be fixed using screws or by DIN rail.

Technical characteristics:

  • Manufacturer: LS (LG).
  • Contactor reference: MC-32a/4 AC230V 50/60Hz.
  • Maximum operating voltage: 690Vac.
  • Coil voltage: 230Vac.
  • number of contactor poles: 4.
  • Rated current for contactor in AC3: 32A.
  • Rated current for contactor in AC1: 50A.
  • Maximum power (kW) 380-400Vac: 35kW.
  • Maximum power (kW) 220-230Vac: 18kW.
  • Maximum peak voltage (Uimp): 6kV.
  • Maximum number of operations per hour: 1800.
  • Mechanical durability: 15.000.000 cycles.
  • Electrical durability: 1.000.000 cycles.
  • Weight: 0.6 kg.
  • Dimensions: 59x83.5x94.5 mm.
Material for professional use, install in compliance with the regulations in force at the installation site.
