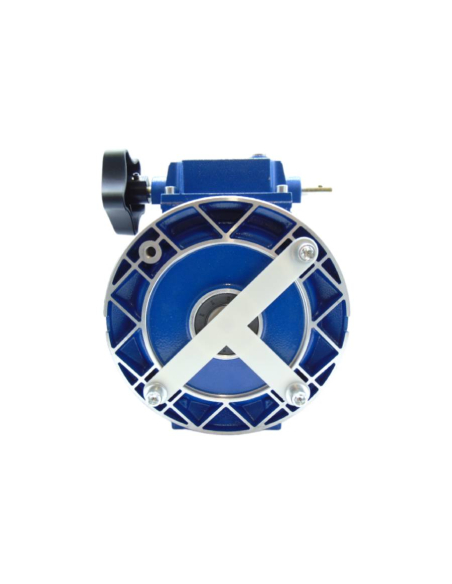

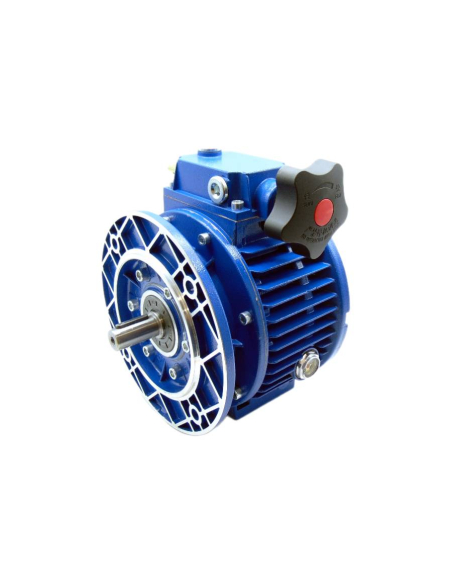

Mechanical speed drive size 100 (3HP)

€536.79 Tax included

€443.63 tax excl.

Mechanical speed inverter with which you can vary the speed of the turn by means of the side manoeuvre steering wheel, to be coupled to motors with flange size B5 size 100. Drive output shaft 28 and flange of 250mm.

  • Regular engines (not included) 3HP 1400rpm
  • Vel. maximum output: 1000 rpm
  • Vel. minimum output: 190 rpm

No queries yet, leave the first!


Mechanical speed reducer inverter,planetary discs, manually operated by manoeuvre steering wheel, to be coupled to motors with flange type B5 and size 100.

Mechanical motorvariators,manufactured with special advanced technology, which makes them specially adapted for work in the maintenance industry, ceramics, packaging, chemical, textile, food, boiling machine, automatic production and assembly lines, and in general, those where speed regulation is required.

Its main features are as follows:

  • Continuous adjustment field 1:5,3 made in the entire range with respect to the input speed.
  • Speed constant ±0.5% at maximum speed and ±1% at minimum.
  • Sense of non-existent rotation with concordant input and output.
  • Silent and uniform operation.
  • Good sizing to ensure long life even with continuous service and at full load.
  • Torque increase, up to twice the nominal at the minimum speed.
  • High starting torque.
  • High performance, approximately 84% at maximum speed.

Technical details:

  • Reducer size: 100.
  • Output shaft: 28mm.
  • Saida flange: 250mm
  • Input shaft: 28mm.
  • Input flange: 250mm.

Recommended engines:

Pot rev. entry rev. salt. Maxims rev. salt. Minimum
2CV 900 660 122
3CV 1400 950 190
4CV 1400 1000 190

Dimension Summary:

Dimensiones variadores mecánicos

  • To:
  • E:
  • D: 28mm.
  • N: 250mm.
  • Or:

To download all other dimensions and features click on the "Downloads" tab.
