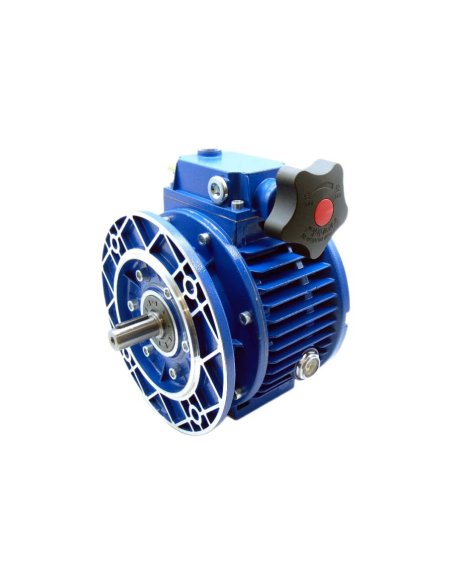

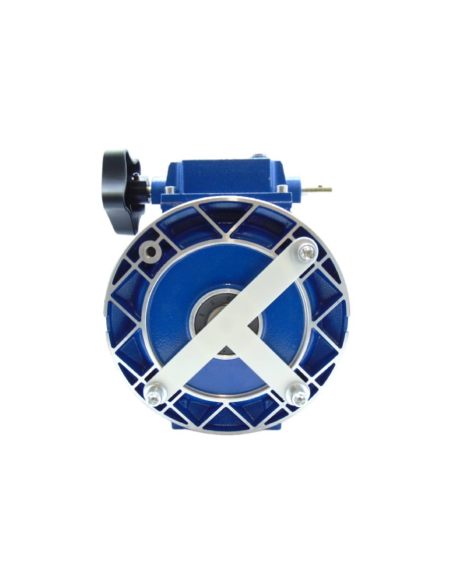

Mechanical speed variator size 63 (0.25 HP)
€169.85
Tax included
€140.37 tax excl.
Mechanical speed variator with which the speed of rotation can be varied by means of the lateral steering wheel, to be coupled to motors with size B5 size 63 flange . Output shaft of the variator Ø11 and flange Ø140mm.
- Standard engine (not included) 0.25HP 1400rpm
- Maximum output speed: 950 rpm
- Minimum output speed: 190 rpm
Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.
Mechanical speed reducer variator , with planetary discs, manually operated by means of a steering wheel, to be coupled to motors with a type B5 flange and size 63.
Mechanical gear reducers-variators , manufactured with special advanced technology, which makes them especially adapted for work in the handling, ceramic, packaging, chemical, textile, food, machine tool, automatic production and assembly lines industries, and in general, in those where speed regulation is required.
Its main characteristics are the following:
- Continuous regulation field 1:5.3 carried out throughout the range with respect to the input speed.
- Speed constant ±0.5% at maximum speed and ±1% at minimum speed.
- Indistinct direction of rotation with matching entry and exit.
- Quiet and smooth operation.
- Good sizing to ensure long life even with continuous service and full load.
- Torque increase, up to two times the nominal at minimum speed.
- High starting torque.
- High performance, approximately 84% at maximum speed.
Technical characteristics:
- Reducer size: 63.
- Maximum output torque: 4Nm.
- Minimum output torque: 2Nm.
- Output shaft diameter: 11mm.
- Outlet flange diameter: 140mm
- Input shaft diameter: 11mm.
- Inlet flange diameter: 140mm.
Recommended engines:
| Pot | rev. entry | rev. sal. Maxims | rev. sal. Minimum |
| 0.16HP | 900 | 620 | 125 |
| 0.25HP | 1400 | 950 | 190 |
Summary of dimensions:
- A: 82.5mm.
- E: 23mm.
- diameterD: 11mm.
- diameterN: 140mm.
- O: 9mm.
It is important to note that this type of mechanical variator requires maintenance, the amount of lubricating oil must be checked and that they cannot be regulated when stopped. If an attempt is made to regulate the variator when stopped, the planetary gear system will become misaligned, it is not possible to work under these conditions, the regulator will overheat and, if this situation continues over time, it will cause a serious breakdown. Please note that this type of incident is not covered by the warranty.
For further information you can download the technical sheet by clicking on the "Attached Files" tab.
Professional use material, install in compliance with the regulations in force at the installation site
