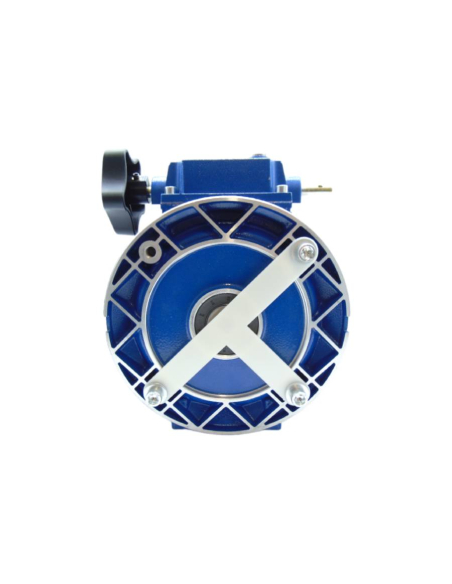

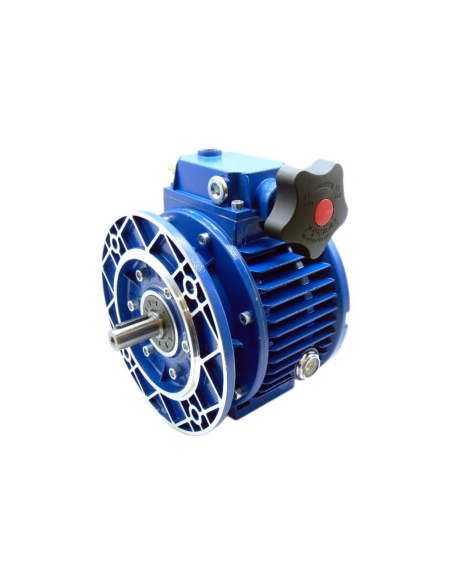

Mechanical speed variator size 112 (4-5.5 HP)
€847.80
Tax included
€700.66 tax excl.
Mechanical speed variator with which the speed of rotation can be varied by means of the lateral steering wheel, to be coupled to motors with size B5 size 112 flange . Variable speed drive output shaft Ø28 and flange Ø250mm.
- Standard engines (not included) 4-5.5HP 1400rpm
- Maximum output speed: 1000 rpm
- Minimum output speed: 190 rpm
Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.
Mechanical speed reducer variator , with planetary discs, manually operated by means of a steering wheel, to be coupled to motors with a type B5 flange and size 112.
Mechanical gear reducers-variators , manufactured with special advanced technology, which makes them especially adapted for work in the handling, ceramic, packaging, chemical, textile, food, machine tool, automatic production and assembly lines industries, and in general, in those where speed regulation is required.
Its main characteristics are the following:
- Continuous regulation field 1:5.3 carried out throughout the range with respect to the input speed.
- Speed constant ±0.5% at maximum speed and ±1% at minimum speed.
- Indistinct direction of rotation with matching entry and exit.
- Quiet and smooth operation.
- Good sizing to ensure long life even with continuous service and full load.
- Torque increase, up to two times the nominal at minimum speed.
- High starting torque.
- High performance, approximately 84% at maximum speed.
Technical characteristics:
- Reducer size: 112.
- Output shaft diameter: 28mm.
- Outlet flange diameter: 250mm
- Input shaft diameter: 28mm.
- Inlet flange diameter: 250mm.
Recommended engines:
| Pot | rev. entry | rev. sal. Maxims | rev. sal. Minimum |
| 3CV | 900 | 660 | 122 |
| 5.5HP | 1400 | 950 | 190 |
Summary of dimensions:
- TO:
- AND:
- diameterD: 28mm.
- diameterN: 250mm.
- EITHER:
It is important to note that this type of mechanical variator requires maintenance, the amount of lubricating oil must be checked and that they cannot be regulated when stopped. If an attempt is made to regulate the variator when stopped, the planetary gear system will become misaligned, it is not possible to work under these conditions, the regulator will overheat and, if this situation continues over time, it will cause a serious breakdown. Please note that this type of incident is not covered by the warranty.
For further information you can download the technical sheet by clicking on the "Attached Files" tab.
Professional use material, install in compliance with the regulations in force at the installation site
Questions
Be the first to ask a question about this product!
Question about the product
* Required fields
Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)
6 other products in the same category:
Mechanical speed drives
Mechanical speed variator size 132 (7.5-10 HP)
€1,869.83
(€1,545.31 tax excl.)
Customers who bought this product also bought:
Disconnectors SE series - Giovenzana
Disconnector switch 4-pole 100A SE series background cabinet - Giovenzana
€49.91
(€41.25 tax excl.)
Three-phase electric motors 1500 rpm flange B5 aluminum housing IE1, IE2, IE3

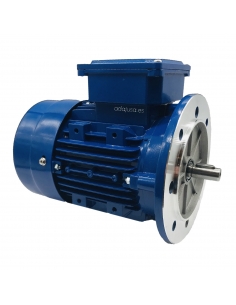

Three-phase motor 4Kw 5.5CV 230/400V 1500 rpm IE1 Flange B5
€307.32
(€253.98 tax excl.)
Endless crown reducers
Endless reducer crown Size 90 Flange PAM 250/28 - Motor housing 100 B5
€258.65
(€213.76 tax excl.)
Three-phase electric motors 1500 rpm flange B5 aluminum housing IE1, IE2, IE3

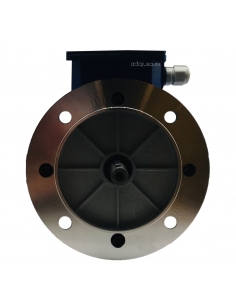

Three-phase motor 4Kw 5,5HP 400/690V 1500 rpm IE2 Flange B5
