Valve 3/8 5-way bi-stable - Metal Work

€84.85 Tax included

€70.12 tax excl.

Pneumatic valve 3/8 5 ways bistable.

Reference: 7040011200

Logotipo metal work

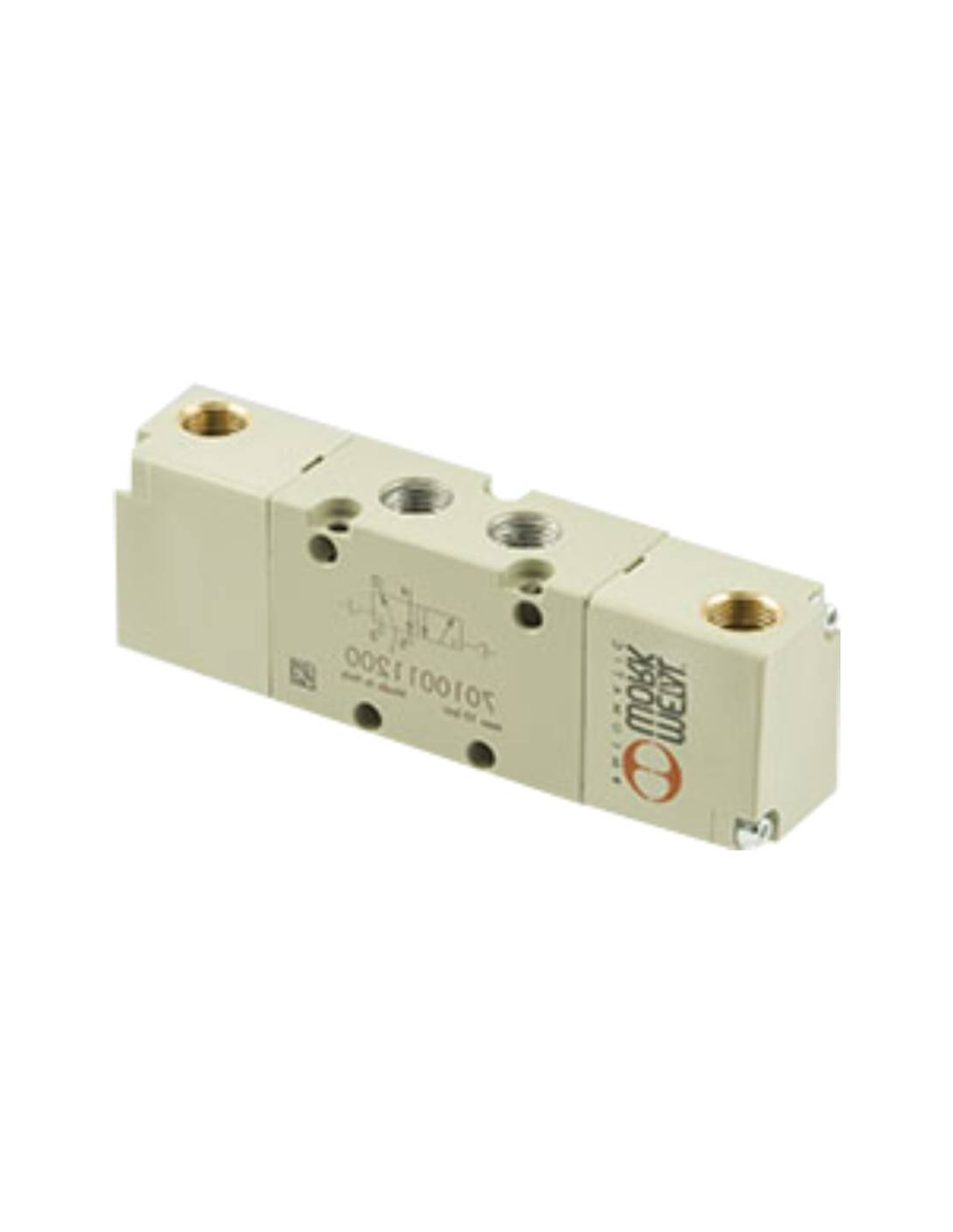

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!


Pneumatic valve 3/8 5 ways bistable.

  • Manufacturer: Metal Work.
  • Reference: PNVC5PNBOO Code: 7040011200
  • Bar operating pressure: Empty ÷ 10
  • Minimum bar bistable drive pressure: 1
  • Operating temperature °C: -10 ÷ +60
  • Nominal diameter mm: 13.3
  • Conductance C Nl/min · bar: 505.52
  • Critical ratio b bar/bar: 0.32
  • Flow rate at 6 bar ΔP 0.5 bar Nl/min: 1560
  • Flow rate at 6 bar ΔP 1 bar Nl/min: 2150
  • SINGLE-SEAT TRA/TRR at 6 bar ms: 5/28
  • TRA/TRR bistable at 6 bar ms: 13/13

For other models, see.

dimensiones-valvula-3-8-biestable

Material for professional use, install respecting the regulations in force at the place of installation.

For more information you can download the technical data sheet by clicking on the "Attachments" tab
