3/8 5 way 3-position Pneumatic valve with closed centres - Aignep

3/8 5 way 3-position Pneumatic valve with closed centres - Aignep

€59.67 Tax included

€49.31 tax excl.

3/8 " 5- way 3-position valve, closed centres . Pneumatic pilot and spring return, with G 3/8" threads. Anodised aluminium body, NBR seals.


Reference: 01V P0 7 CC 04

MONOSTABLE 5 2
Aignep logo

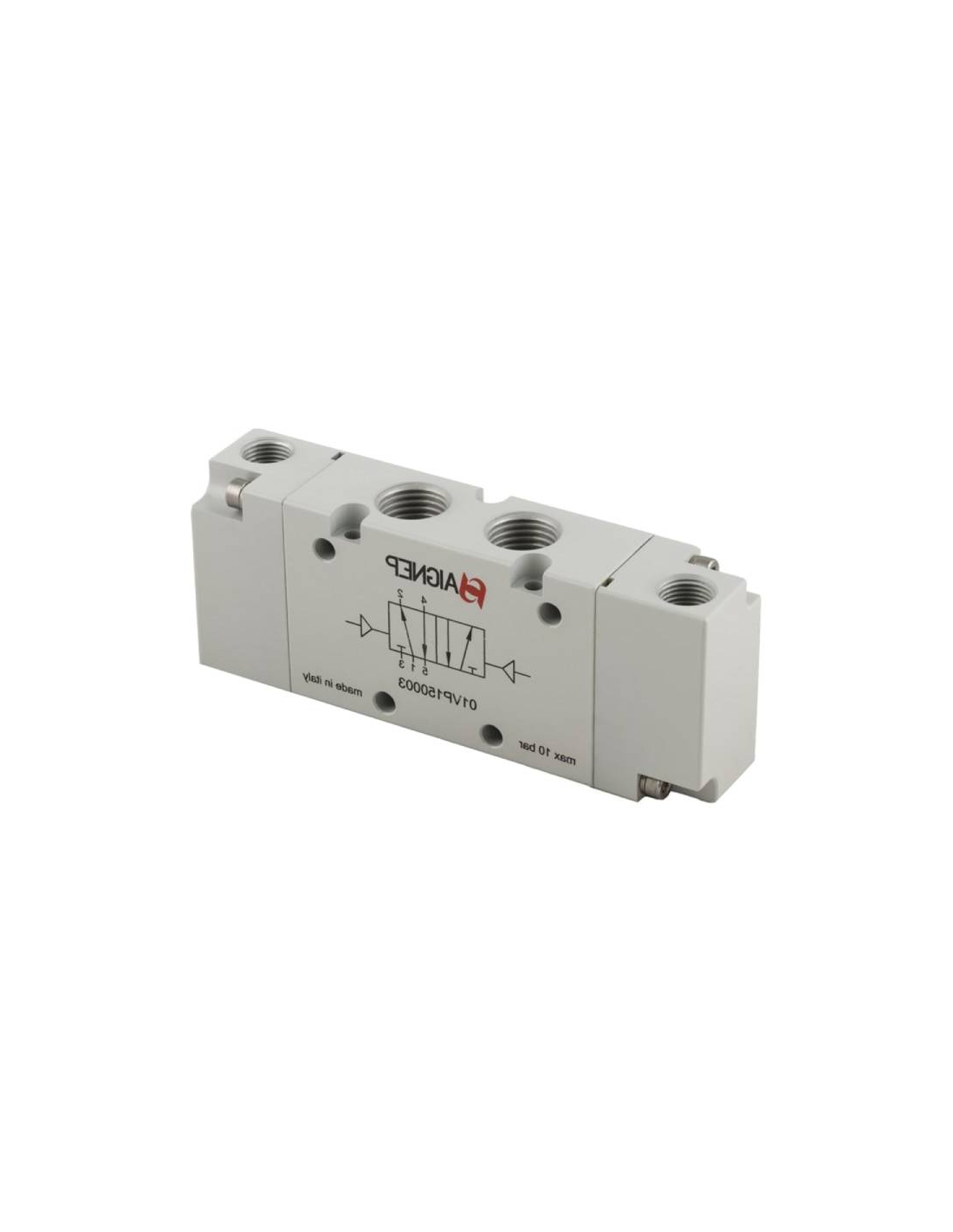

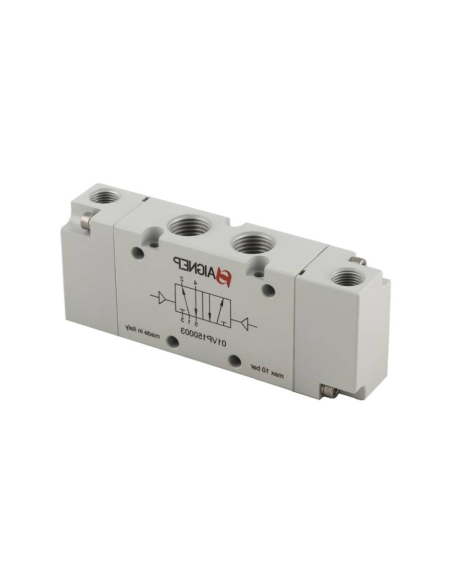

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!


3/8 5-way 3-position Pneumatic valve way closed centres . Body made of anodised and painted aluminium, slide made of chemically nickel-plated aluminium and NBR seals.

The valve has 3 positions, with pressure on one pilot, the cylinder advances, without pressure on the pilots, the cylinder stops but maintains pressure (force), and with pressure on the other pilot, the cylinder retracts.



Characteristics:

  • 3/8 5- way 3-position Pneumatic valve , closed centers.
  • Manufacturer: Aignep
  • Reference: 01VP07CC04
  • Operating pressure: 0 - 10 bar
  • Operating pressure: 2 - 10 bar
  • Operating temperature: -10ºC to +60ºC
  • Flow rate at 6 bar ΔP 1 bar : 2000Nl/min
01VP07_CC_OC_PC_04



Professional use material, install in compliance with the regulations in force at the installation site.

For further information you can download the technical sheet by clicking on the "Attached Files" tab.
