Emergency mushroom-head button with lock Valve: 3/2 NA side - Metal Work
Emergency mushroom-head button with lock Valve: 3/2 NA side - Metal Work
Adapter for pushbutton valve or selector - Metal Work - adajusa.es
Emergency mushroom-head button with lock Valve: 3/2 NA side - Metal Work

Emergency mushroom-head button with lock Valve: 3/2 NA side - Metal Work

€47.49 Tax included

€39.25 tax excl.

Full emergency pushbutton, valve adapter and valve limit switch normally open with metal front piston, for tube 4mm located on the side.

Logotipo Metal Work
Representative image for illustrative purposes, the article supplied shall correspond to the specifications indicated.

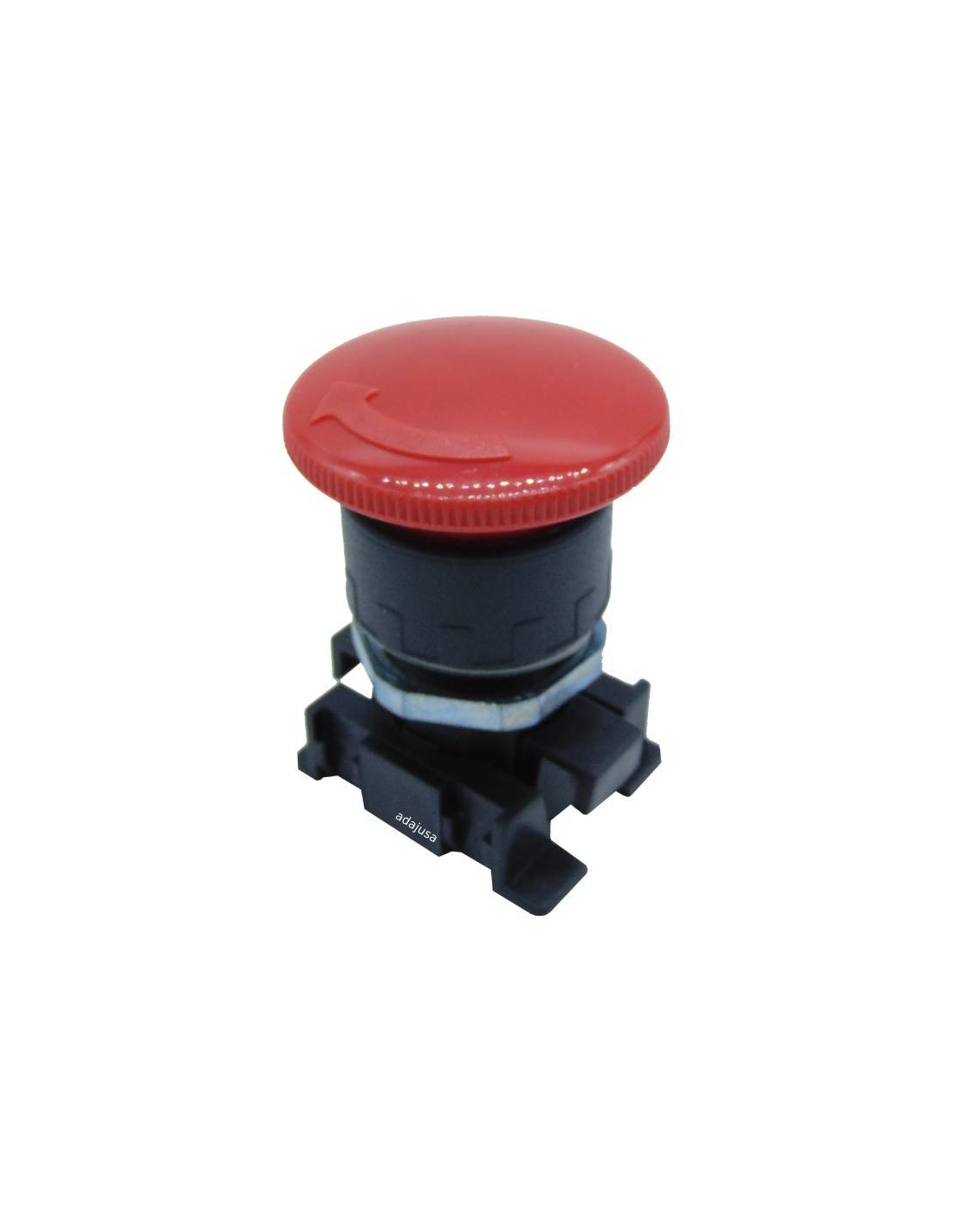

Emergency pushbutton with lock for use with limit switch with pushbutton drive

limit switch metal emboloding pneumatic frame, with integrated quick-connect fittings for 4mm outer tube. The resting state of the limit switch valve is normally open (NA), i.e. without pressing there is an air presence in the exit, the air can pass, when it is operated, the air stops passing and the air of the outlet circuit communicates with the exhaust.


Supply includes:

    • Emergency pushbutton
    • adapter
    • nut

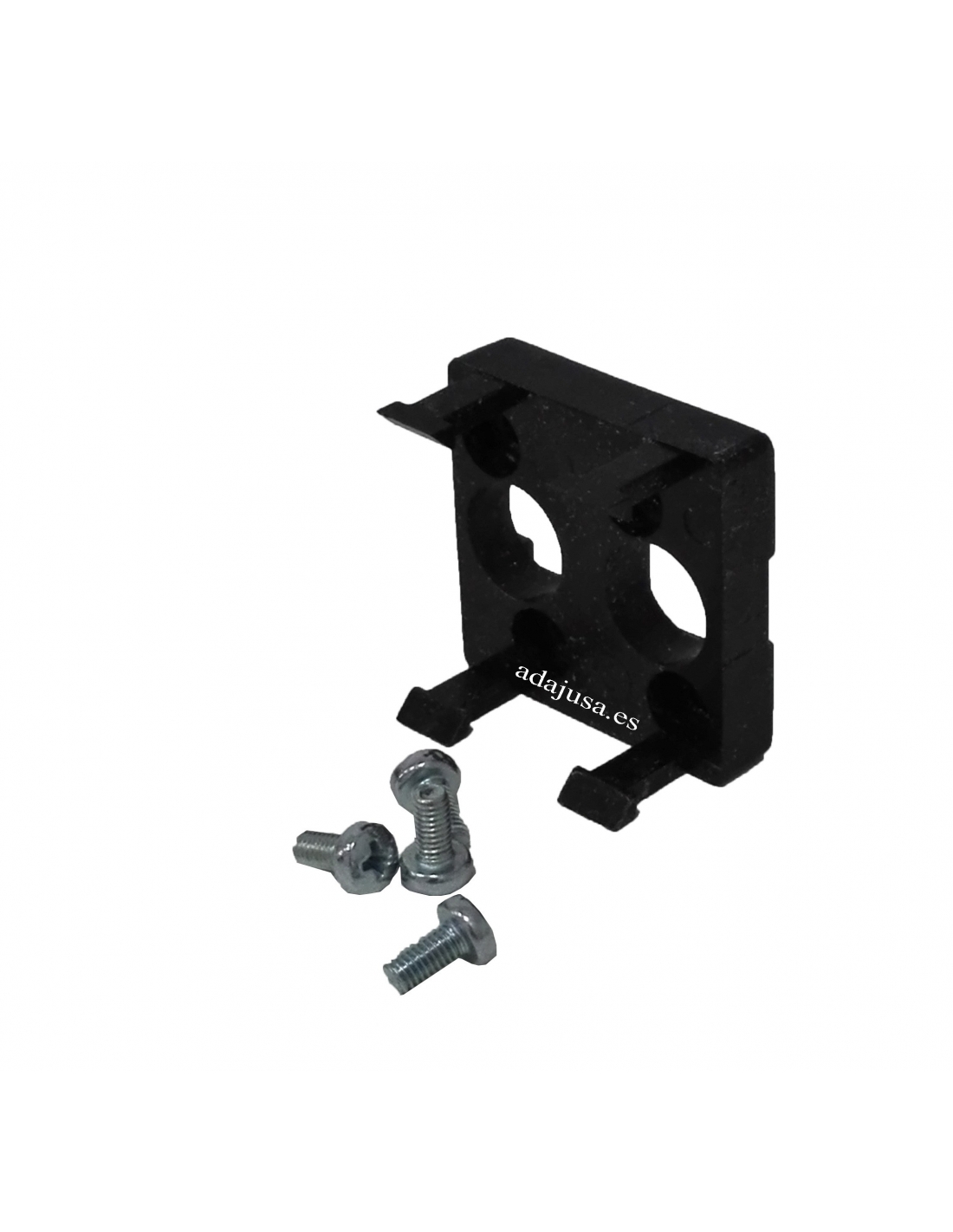

    • Valve adapter
    • 4 screws
    • Na limit switch valve for tube 4mm located on the side.

Valve features:


  • Manufacturer: Metal Work
  • Valve type: 3/2 Normally open (NA).
  • Type of drive of the limit switch: Metal front piston.
  • Manufacturer's Reference: W3501001100 (VME2-01 NO .4)
  • Material type: metallic.
  • Fittings: fast for tube 4mm located on the side.
  • Installation: in any position.

notes:
• To obtain the pneumatic function 5/2 assemble a 3/2 NC strut valve and a 3/2 NO on the adapter.
• To obtain the pneumatic function 5/3 open centers, assemble two 3/2 NC strut valves on the adapter.
• To obtain the pneumatic function 5/3 pressure centers, assemble two 3/2 NO strut valves on the adapter.

With the valve adapter you can place up to two valves at once. The supply only includes one type of valve. If you want you can buy another valve separately to add it to the pushbutton.

Dimensiones final de carrera neumatico metal work lateral


Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the data sheet by clicking on the tab "Attachments"
