Emergency mushroom-head button with lock Valve: 3/2 NC side - Metal Work
Emergency mushroom-head button with lock Valve: 3/2 NC side - Metal Work
Adapter for pushbutton valve or selector - Metal Work - adajusa.es
Emergency mushroom-head button with lock Valve: 3/2 NC side - Metal Work

Emergency mushroom-head button with lock Valve: 3/2 NC side - Metal Work

€45.48 Tax included

€37.59 tax excl.

Full pushbutton with 2 discs (black and red), valve adapter and valve limit switch normally closed with metal front piston, for tube 4mm located on the side.

simbolo final de carrera neumatico NC

Logotipo Metal Work
Representative image for illustrative purposes, the article supplied shall correspond to the specifications indicated.



Pushbutton with black and red disc, protected monostable for use with limit switch pneumatic valve with pushbutton drive

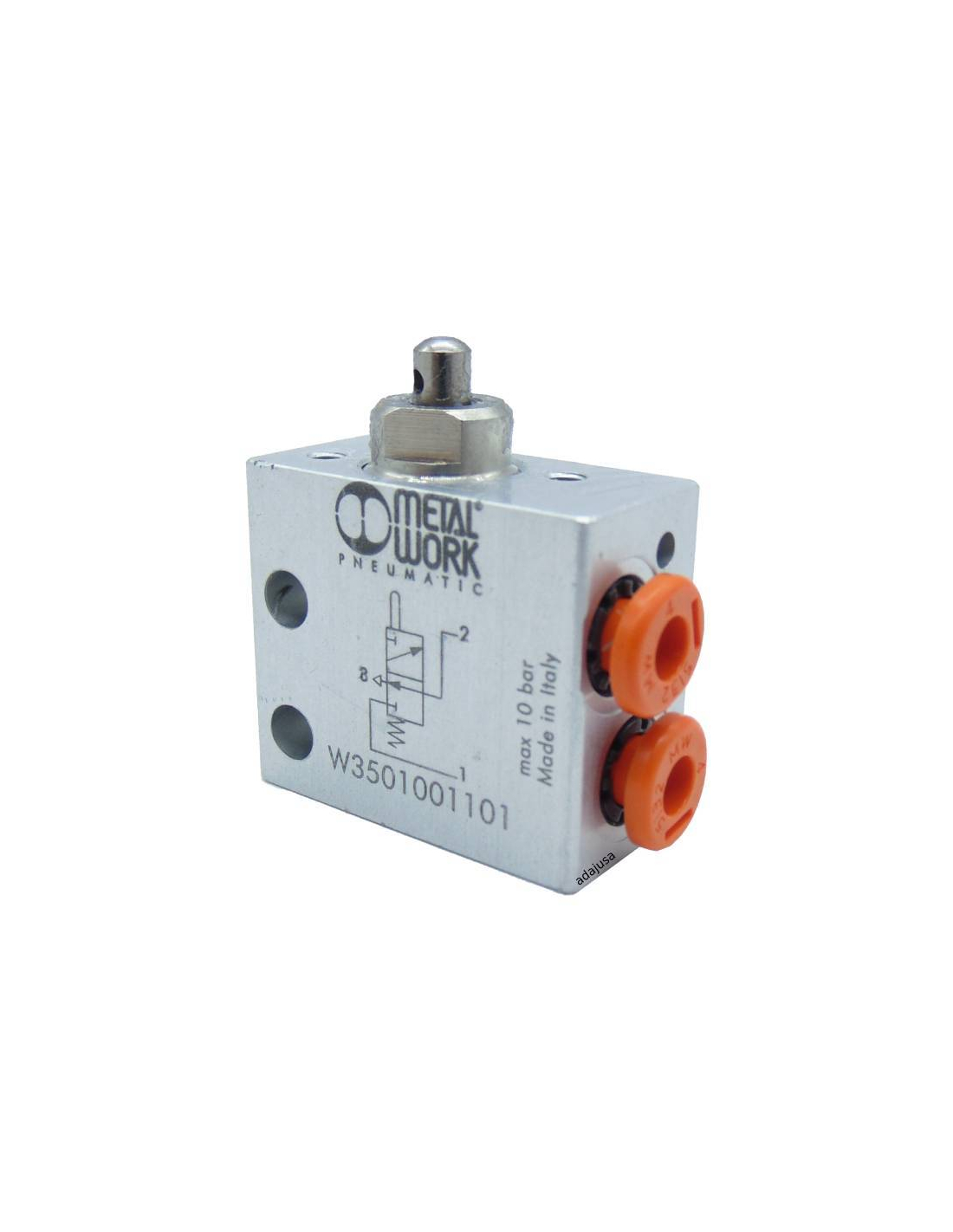

limit switch metal emboloding pneumatic frame, with integrated quick-connect fittings for 4mm outer tube. The resting state of the limit switch valve is normally closed (NC), i.e. without pressing there is no presence of air in the exit, the air cannot pass, when it is operated, it lets air pass and there is pneumatic pressure at the outlet


Supply includes:

    • Pushbutton body
    • adapter
    • nut
    • 2 discs (1 black and another red color)
    • Valve adapter
    • 4 screws
    • NC limit switch valve for tube 4mm located on the side.

Valve features:


  • Manufacturer: Metal Work
  • Valve type: 3/2 Normally closed (NC).
  • Type of drive of the limit switch: Metal front piston.
  • Manufacturer's Reference: W3501001101 (VME2-01 NC .4)
  • Material type: metallic.
  • Fittings: fast for tube 4mm located on the side.
  • Installation: in any position.
notes:
• To obtain the pneumatic function 5/2 assemble a 3/2 NC strut valve and a 3/2 NO on the adapter.
• To obtain the pneumatic function 5/3 open centers, assemble two 3/2 NC strut valves on the adapter.
• To obtain the pneumatic function 5/3 pressure centers, assemble two 3/2 NO strut valves on the adapter.

With the valve adapter you can place up to two valves at once. The supply only includes one type of valve. If you want you can buy another valve separately to add it to the pushbutton.


Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the data sheet by clicking on the tab "Attachments"
