Pneumatic switch lever 1/8-3/2 NC Return - Mindman

€21.03 Tax included

€17.38 tax excl.

Pneumaticswitch, mechanically operated pneumatic valve, 1/8 3-way normally closed thread (NC). The limit switch is operated by manual lever with return.

Reference: EPA-101A

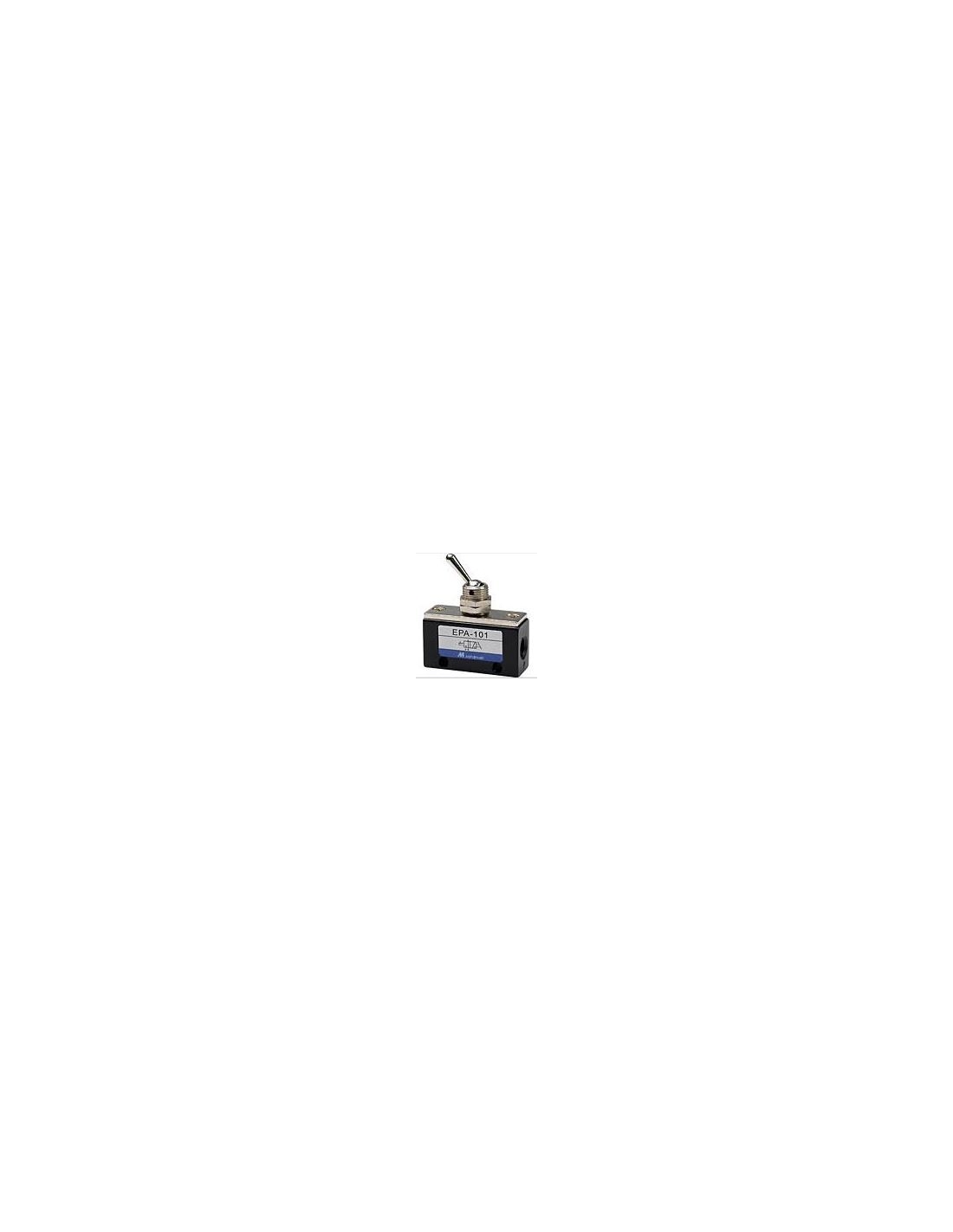

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!


limit switch pneumatic valve,pneumatic valve of mechanical drive by metal lever. The connection limit switch are by 1/8" thread. The valve is normally closed 3-way (NC), when it is not actuated there is no pressure at the outlet and the outlet is communicated with the exhaust, when operated, air pressure appears at the outlet. The lever returns the resting position once it is no longer operated.

specifications:

  • Manufacturer: Mindman.
  • Manufacturer's Reference: EPA-101A.
  • Valve type: 1/8-3/2 Monostable.
  • Thread type: G 1/8".
  • Drive type: Manual lever with return.
  • number of tracks: 3.
  • Fluid type: Air under pressure, with or without lubrication.
  • Working pressure: 0÷9 Kgr/cm2.
  • Maximum pressure: 9 Kgr/cm2.
  • Working temperature: -5 to 60oC.
  • Material: Alumio and steel.
  • Weight: 104g.

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the data sheet by clicking on the tab "Attachments"
