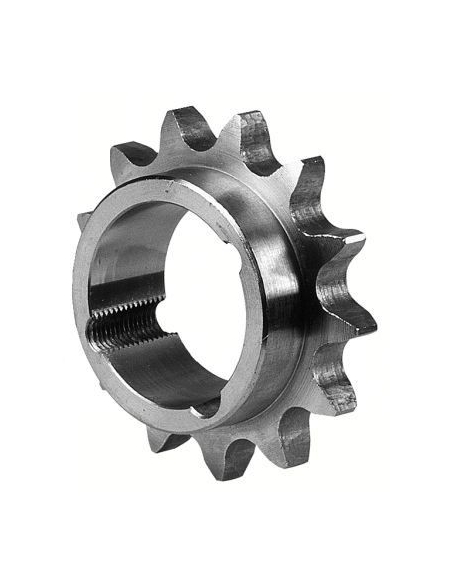

Simple sprockets Z17 taper lock T1210 1/2 x 5/16 08B-1 ISO 606

€15.62 Tax included

€13.02 tax excl.

Simple sprockets for taper lock of bushing 1210 of roller chain 08B-1 according to European standard DIN ISO 606

Reference: PINHON Z17 1/2-T1210

Teeth: 17

ISO: 08B-1

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Simple sprockets for taper lock of bushing 1210 of roller chain 08B-1 according to European standard DIN ISO 606

Manufacturer: Technox

Reference: PINHON Z17 1/2-T12108


Characteristics:

  • 1/2" x 5/16" mm ISO 08B-1
  • 12.7 x 7.75 mm
  • Teeth: 17
  • Taper Lock: 1210
  • Outer Diameter (S): 73.6
  • Primitive diameter (Dp): 69.11
  • Hub diameter (d): 60
  • Width (H): 25


Material for professional use, install in compliance with the regulations in force at the place of installation.
