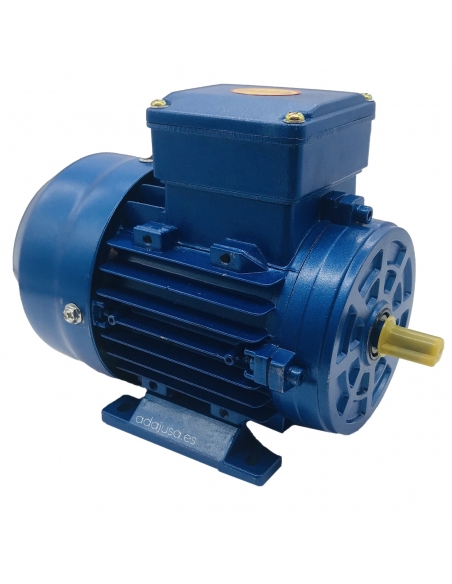

Single-phase electric motor 0.37Kw 0.5HP 230V B3 foot 1500 half torque start | ADAJUSA

Single-phase motor 0.37Kw 0.5HP 230V 1500 rpm medium starting torque, Flange B3 foot

€113.18 Tax included

€94.32 tax excl.

SY7124B3

Single-phase electric motor 0.37kW (0.5HP) 230V 1500 rpm Flange B3 foot,half starting torque, aluminum housing. Manufactured under European IEC regulations.

Reference: SY-71M2-4 B3
Voltage: 230Vac 50Hz.
Power: 0.37Kw - 0.5HP
Type: Half boot torque.
Number of poles: 4.
Revs: 1500 rpm.
Flange: B3 foot
Shaft diameter: 14mm.
Size: 71(71M2)
Energy efficiency: IE1.

Representative image for illustrative purposes, the article supplied shall correspond to the specifications indicated.

2 questions about the product

Privacy

Shipments

Returns

Single-phase electric motor 0.37kw (0.5HP) 230Vac 50Hz , 4 poles (1500 rpm), B3-pin flange and half starting torque.

Standard single-phase electric motors for general uses, manufactured under European IEC standards in aluminium with detachable foot. Coiled in enamelled copper with class F insulation. The execution of the housing is closed, it has retainer on the output shaft that gives it a degree of protection IP55. The condenser is fully housed in the motor terminal box.

By properly positioning the connecting plates in the terminal box, the motor can rotate both right and left.

Features:

Manufacturer/Importer: Motorseg
Reference: SY-71M2-4 B3
Engine type: asynchronous squirrel cage.
Voltage: 230 Vac. 50Hz.
Power: 0.37 Kw (0.5HP).
Medium start torque.
Number of poles: 4 (1500 rpm).
Nominal intensity (In): 2.76A
Starting intensity (Ia): 10
Revs: 1400 rpm.
Yield: 62%
Power factor (Cos): 0.94
Maximum Torque / Nominal Torque (Tmax/Tn): 1.7
Starting torque / Nominal torque (Ts/Tn): 0.4
Permanent capacitor: 16uF/450V
Service: continuous S1
Degree of protection: IP55.
Clamping type: Flange B3 foot.
Shaft Diameter: .14mm
Enclosure size: 71 (712)
Color: Blue.
Housing material: Aluminum.
Sound level (dB): 68.
Weight: 6.7 Kg.
CE marking.

For more information, other powers or executions consult.
As with any asynchronous electric motor, the installation of a motor guard is mandatory to avoid overload damage.

Dimensiones motores monofasicos B3

To expand the information you can download the data sheet by clicking on the "Attachments" tab. Material for professional use, install in compliance with the regulations in force at the place of installation.

ES-Engine Annex

Download (253.95KB)

Annex engines-FR

Download (262.97KB)

EN-Engine Annex

Download (631.69KB)

Annex motors-PT

Download (249.5KB)

IT-motor annex

Download (628.21KB)

Annex motors-DE

Download (638.45KB)

Questions

Question

Bonjour Ce moteur est-il adapté pour un tour mécanique. Cordialement

Answer

Bonsoir Les tours font varier les révolutions en fonction des pièces à usiner, nous n'avons pas de dispositif pour faire varier les révolutions dans un moteur monophasé, la puissance du moteur dépend de l'utilisation que l'on veut faire du tour. Salutations

Jean-Michel on 03/07/2022 12:26:28

Question

Buenas tardes. Este motor gira en los dos sentidos??. Gracias. Lo quiero para un fuso de astillar leña

Answer

Buenos días,

Todos los motores eléctricos pueden trabajar en ambas direcciones, solo hay que instalar la circuiteria electrica para hacer el inversor. Puede usted consutar nuestro bloc:

https://adajusa.es/es/blog/4-inversores-de-giro-para-motores-electricos-monofasicos

Tambien le indico que nosotros no realizamos cableado ni esquemas electricos, si usted tubiese necesidad de estos servicios, tendria que contactar con un tecnico.

Saludos

Juan jose on 09/17/2018 14:46:14
