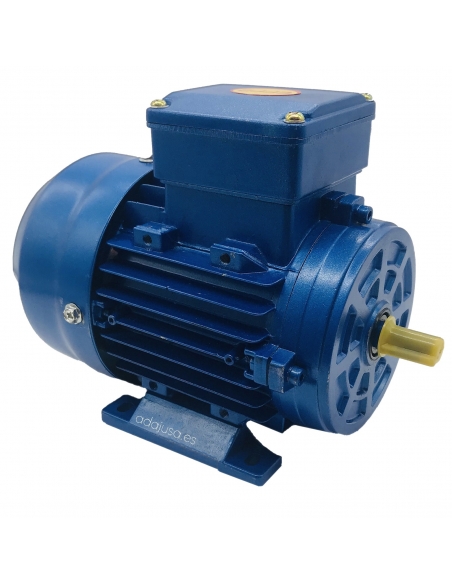

Single-phase motor 1.1Kw 1.5HP 230V 1500 rpm medium starting torque, Flange B3 foot

€214.45 Tax included

€178.71 tax excl.

SY90S4B3

Single-phase electric motor 1.1kW (1.5HP) 230V 1500 rpm Flange B3 foot,half starting torque, aluminum housing. Manufactured under European IEC regulations.

  • Reference: SY-90S-4 B3
  • Voltage: 230Vac 50Hz.
  • Power: 1.1Kw - 1.5HP
  • Type: Half boot torque.
  • Number of poles: 4.
  • Revs: 1500 rpm.
  • Flange: B3 foot
  • Shaft diameter: 24mm.
  • Size: 90(90S)
  • Energy efficiency: IE1.

Representative image for illustrative purposes, the article supplied shall correspond to the specifications indicated.

1 question about the product
Privacy
Shipments
Returns


Single-phase electric motor 1.1kw (1.5HP) 230Vac 50Hz , 4 poles (1500 rpm), B3-pin flange and half starting torque.

Standard single-phase electric motors for general uses, manufactured under European IEC standards in aluminium with detachable foot. Coiled in enamelled copper with class F insulation. The execution of the housing is closed, it has retainer on the output shaft that gives it a degree of protection IP55. The condenser is fully housed in the motor terminal box.

By properly positioning the connecting plates in the terminal box, the motor can rotate both right and left.

Features:

  • Manufacturer/Importer: Motorseg
  • Reference: SY-90S-4 B3
  • Engine type: asynchronous squirrel cage.
  • Voltage: 230 Vac. 50Hz.
  • Power: 1.1Kw (1.5HP).
  • Medium start torque.
  • Number of poles: 4 (1500 rpm).
  • Nominal intensity (In): 6.87A
  • Starting intensity (Ia): 30
  • Revs: 1410 rpm.
  • Yield: 71%
  • Power factor (Cos): 0.98
  • Maximum Torque / Nominal Torque (Tmax/Tn): 1.7
  • Starting torque / Nominal torque (Ts/Tn): 0.35
  • Permanent capacitor: 40uF/450V
  • Service: continuous S1
  • Degree of protection: IP55.
  • Clamping type: Flange B3 foot.
  • Shaft Diameter: .24mm
  • Enclosure size: 90 (90S)
  • Color: Blue.
  • Housing material: Aluminum.
  • Sound level (dB): 73.
  • Weight: 14.5 Kg.
  • CE marking.

For more information, other powers or executions consult.
As with any asynchronous electric motor, the installation of a motor guard is mandatory to avoid overload damage.

Dimensiones motores monofasicos B3

To expand the information you can download the data sheet by clicking on the "Attachments" tab. Material for professional use, install in compliance with the regulations in force at the place of installation.

Questions

Question
Deseo adquirir un motor monofasico de 1,1 Kw, para utilizar en un polipasto, por lo tanto con giro en ambos sentidos. Me gustaria conocer el motivo del alto par de arranque, y para que se utiliza.
Answer

Los motores monofásicos tienen peor rendimiento que su equivalente en trifásico, sobre todo en el momento del arranque, Los motores con alto par tienen un circuito adicional para que el rendimiento no sea muy inferior, pero siempre entorno al 70% de un trifásico.

Saludos

Juan Manuel on 09/18/2018 18:12:30
