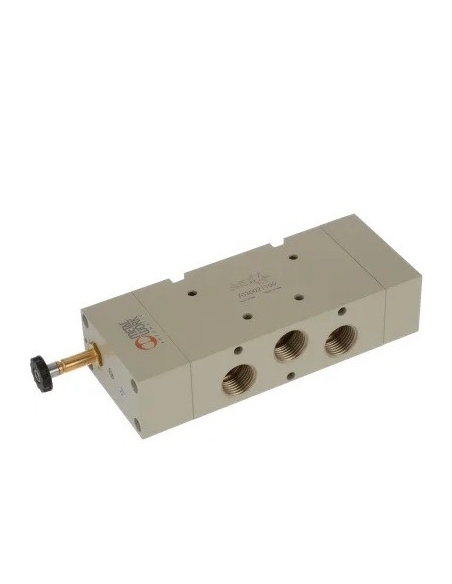

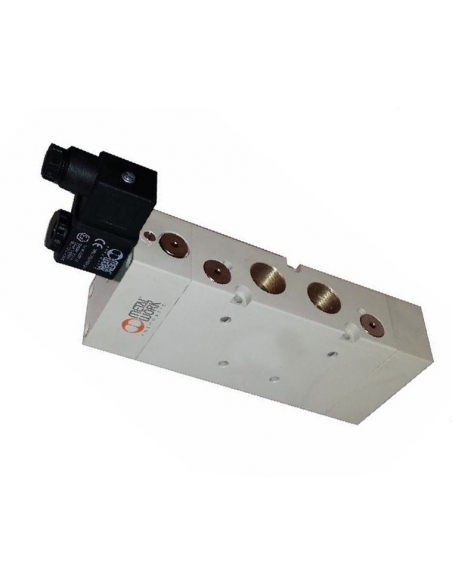

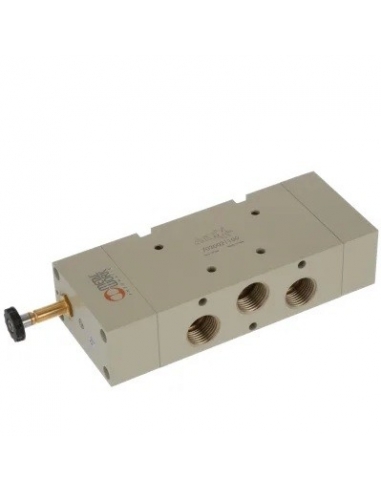

Solenoid valve 1/2 5 ways monostable 110Vac 5VA - Metal Work - adajusa.es
Solenoid valve 1/2 5-way monostable - Metal Work - adajusa.es
Solenoid valve 1/2 5 ways monostable 110Vac 5VA - Metal Work - adajusa.es
Solenoid valve 1/2 5-way monostable - Metal Work - adajusa.es

Solenoid valve 1/2 5 vias monostable 110Vac 5VA - Metal Work

€173.65 Tax included

€144.71 tax excl.

Electrovalve 1/2 5-way monostable mechanical spring,for industrial and general use applications.

Coil for electrovalve size 22mm, voltage 110Vac., with a consumption of 5VA, for cores of Ø8mm. 22mm connector



Logo-Metal-Work
Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

This pack contains

No queries yet, leave the first!
Privacy
Shipments
Returns


1/2 5-way monostable pneumatic solenoid valve. For general and industrial applications. The solenoid valve is normally closed (NC), i.e. without voltage in the coil, the inlet is not communicated with the outlet, i.e. there is no air pressure at the outlet, the outlet is communicated with the valve exhaust. When the coil is put into tension, the solenoid valve is activated, air circulation occurs between the inlet and outlet of the solenoid valve.

Coil for solenoid valve size 22mm, voltage 110Vac., with a consumption of 5VA, for cores of 8mm.

22mm plastic connector

Supply includes:

  • Solenoid valve 1/2 5/2 monostable
  • Coil 110Vac 5VA
  • 22mm connector

specifications:

  • Manufacturer of the solenoid valve: Metal Work.
  • Manufacturer's Reference:7030021100 SOV 45 SOS OO
  • Working pressure of the solenoid valve: 2.5 to 10 bar.
  • Minimum working pressure: 2.5 bar.
  • Voltage: 110Vac
  • Consumption: 5VA
  • Working temperature: -10oC to 60oC.
  • Nominal diameter: 15mm.
  • Flow rate at 6 bars p 1 bar: 4600 Nl/min.
  • Manual drive: Yes.

dimensiones-electrovalvula-1-2-5-vias-2-posiciones

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the data sheet by clicking on the tab "Attachments"
