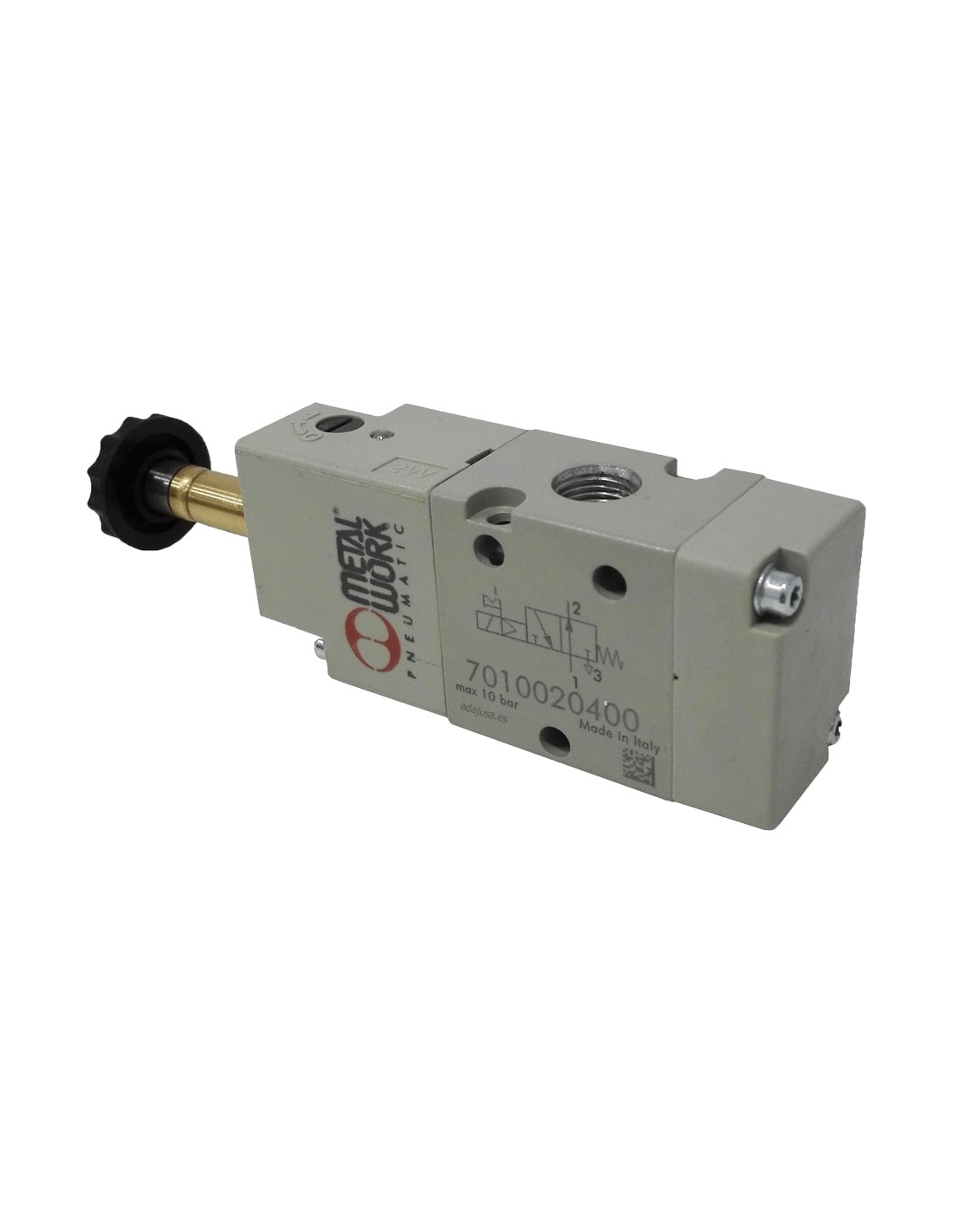

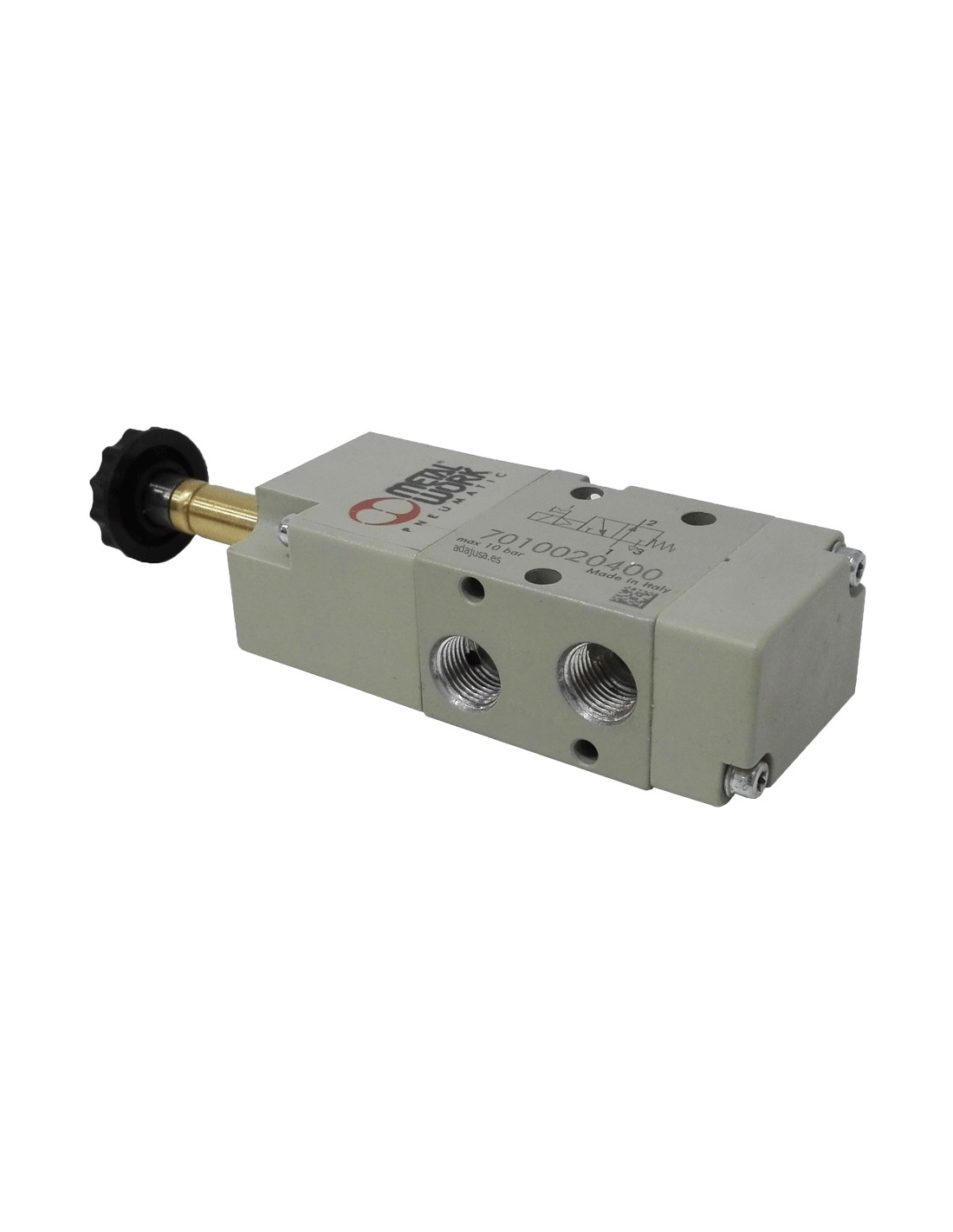

Solenoid valve 1/8 3 ways monostable NO without coil - Metal Work

€52.94 Tax included

€43.75 tax excl.

Electrovalve 1/8 3-way monostable without coil, normally open (NA).
Reference: 7010020400 - SOV 23 SOS NO

Simbolo electrovalvula 3 vias monoestable NO Metal Work 7010020400

Logotipo Metal Work


Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

No queries yet, leave the first!


Pneumatic solenoid valve 1/8 3 way monostable, coil not included. For general and industrial applications. The solenoid valve is normally open (NO), that is, without tension in the coil, the inlet is communicated with the outlet, that is, there is air pressure at the outlet. When the coil is put into tension, the solenoid valve is activated, the air circulation between the inlet and outlet of the solenoid valve is interrupted, the outlet is connected to the exhaust.

Manufacturer: Metal Work

Metal Work Reference: SOV23SOSNO Code: 7010020400
characteristics:

  • Operating pressure: 2.5 ÷10 bar
  • Minimum assist pressure: 2.5 bar
  • Operating temperature: -10 ÷ +60
  • Nominal diameter: 7.5 mm
  • Conductance C Nl/min · bar: 264.26
  • Critical ratio b bar/bar: 0.27
  • Flow rate at 6 bar ΔP 0.5 bar Nl/min: 750
  • Flow rate at 6 bar ΔP 1 bar Nl/min:1100
  • Monostable TRA/TRR at 6 bar ms: 19/45
  • Bistable TRA/TRR at 6 bar ms: 21/21
  • Voltage according to coils: 12; 24 VDC - 24; 110; 220V AC 50/60Hz
  • Voltage tolerances %: -10 ÷ +15

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab
