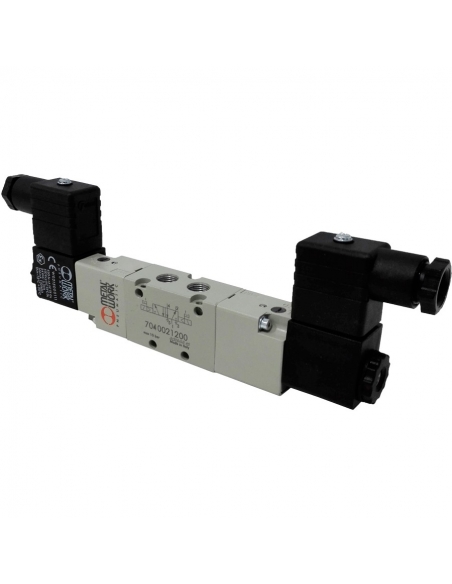

Solenoid valve 3/8 5 biset assisted pathways 24Vac - Metal Work

€132.17 Tax included

110.14 tax excl.

PK-385AB24A

3/8" 5-way bile valve for industrial and general applications. With 24Vac connectors and coils

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

This pack contains

2x

Solenoid valve connector size 22

Solenoid valve connector size 22 - Metal Work

€1.43

2x

Coil for solenoid valve 24VAC Metal Work W0215000111 Price adajusa

Solenoid valve coil 24Vac 3.5 VA T22 diameter 8 - Metal Work

€8.78

1x

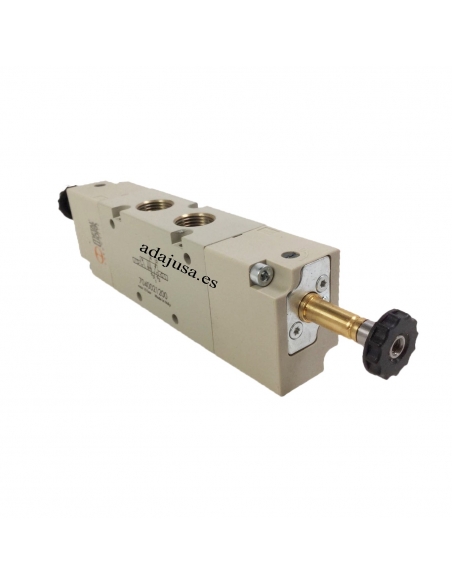

Solenoid valve 3/8 5 ways assisted bistable - Metal Work - ADAJUSA

Solenoid valve 3/8 5 ways assisted bistable without coil - Metal Work

€111.74

No queries yet, leave the first!

Description
Frequently questions

Pneumatic solenoid valve of 3/8 5 ways 2 positions assisted bistable. By having an independent pressure inlet for the pilot (assisted) it can be used from 0 bars of pressure at the inlet. For general and industrial applications.

The supply includes:

Solenoid valve 3/8 5/2 bistable asisitda
2 Coils 24Vac 3,5VA
2 T22 connectors

Characteristics:

Provider: Metal Work
Solenoid valve reference: 7040021600 - SOV C5 SEB OO
Operating pressure: 2.5 ÷10 bar
Minimum assist pressure: 2.5 bar
Operating temperature: -10 ÷ +60
Nominal diameter: 13.3 mm
Conductance C Nl/min · bar: 505.52
B bar/bar critical ratio: 0.32
Flow rate at 6 bar ΔP 0.5 bar Nl/min: 1560
Flow rate at 6 bar ΔP 1 bar Nl/min:2150
Monostable TRA/TRR at 6 bar ms: 21/72
Bistable TRA/TRR at 6 bar ms: 18/18
Coil voltage: 24 Vac
Power: 3.5 VA
Voltage tolerances %: -10 ÷ +15

Material for professional use, install in compliance with the regulations in force at the place of installation.

Questions

Be the first to ask a question about this product!

Question about the product

Name ^*

Email ^*

Question ^*

^* Required fields

I have read and agree to the conditions of use (read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

You might also like

Luminous valve connector size 22 with VDR 24V Metal Work - Adajusa

Accessories for solenoid valves

Luminous valve connector size 22 with VDR 24V

€7.27 (€6.06 tax excl.)

Connector for solenoid valve with VDR 24 V protector and LED indication. For 22mm coils. Reference: W0970510015Representative image for illustrative purposes, the article supplied shall correspond to the specifications indicated.

Solenoid valve 3/8 5 tracks assisted monostable - Metal Work - ADAJUSA

Solenoid valves 3/8

Solenoid valve 3/8 5 ways assisted monostable without coil - Metal Work

€100.42 (€83.68 tax excl.)

3/8" 5-way monestable pneumatic solenoid valve, for industrial applications and general use. Supports coils of size 22mm with core of Ø8mm. Reference: 7040021500 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Solenoid valve 3/8 5 ways bistable differential - Metal Work - ADAJUSA

Solenoid valves 3/8

Solenoid valve 3/8 5 ways differential bistable without coil - Metal Work

€111.74 (€93.12 tax excl.)

3/8" 5-way bianneumatic solenoid valve, for industrial applications and general use. Supports coils of size 22mm with core of Ø8mm. Reference: 7040021300 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

16 other products in the same category:

Solenoid valve 3/8 5/2 bistable series 01V | Aignep | ADAJUSA | price

Solenoid valves 3/8

Solenoid valve 3/8 5/2 bistable - Aignep

€74.70 (€62.25 tax excl.)

3/8 5- way bistable Solenoid valve (coils not included), with G3/8" threads, anodized aluminum body, NBR seals. Reference: 01VS150004 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Multiple base for 3/8 5-way valves Mindman 300 series - ADAJUSA

Multiple base for 3/8 5-way valves Mindman 300 series - ADAJUSA 2

Solenoid valves 3/8

Multiple base plate for 3/8 5-way valves S.300 - Mindman

€17.74 (€14.78 tax excl.)

Multiple base plate for 5-way 3/8" size valves and solenoid valves, MVSC300 seriesReference: 281MVSC3005BxxRepresentative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Solenoid valve 3/8 3 ways assisted bistable with coil - Metal Work - ADAJUSA

Solenoid valve 3/8 3 ways assisted bistable with coil - Metal Work - ADAJUSA 2

Pack

Solenoid valves 3/8

Solenoid valve 3/8 3-way bistable assisted 24 Vdc- Metal Work

€118.61 (€98.84 tax excl.)

Pneumatic solenoid valve of 3/8" 3 bistable assisted tracks, for industrial applications and general use. With 24Vdc connectors and coils Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Solenoid valve 3/8 3-way monostable NC with coil - Metal Work

Solenoid valve 3/8 3-way monostable NC with coil - Metal Work 2

Pack

Solenoid valves 3/8

Solenoid valve 3/8 3-way monostable NC 24 Vdc - Metal Work

€96.28 (€80.23 tax excl.)

3/8" 5-way monestable, closed (NC) pneumatic solenoid valve for industrial and general use applications. With connector and coil of 24 Vdc Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Solenoid valve 3/8 5/2 monostable series 01V | Aignep | ADAJUSA | price

Solenoid valves 3/8

Solenoid valve 3/8 5/2 monostable - Aignep

€63.23 (€52.69 tax excl.)

3/8 5 way Solenoid valve (coil not included), with G3/8" threads, anodized aluminum body, NBR seals. Reference: 01VS050004 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Solenoid valve 3/8 5/3 exhaust centers 110 Vac - Metal Work - ADAJUSA

Solenoid valve 3/8 5/3 exhaust centers 110 Vac - Metal Work - ADAJUSA 2

Pack

Solenoid valves 3/8

Solenoid valve 3/8 5/3 exhaust centers 110 Vac - Metal Work

€158.33 (€131.94 tax excl.)

Solenoid valves of 3/8" of 5 ways and 3 positions, open centers in exhaust, metal body, with connectors and coils of 110 Vac. For pneumatic applications for industrial or general use. Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Solenoid valve 3/8 5/3 exhaust centers 24 Vac - Metal Work - ADAJUSA

Solenoid valve 3/8 5/3 exhaust centers 24 Vac - Metal Work - ADAJUSA 2

Pack

Solenoid valves 3/8

Solenoid valve 3/8 5/3 assisted exhaust centers 24 Vac - Metal Work

€140.98 (€117.48 tax excl.)

3/8" 5-way, 3-position assisted solenoid valves, exhaust centers, metal body, with 24Vac connector and coil. For pneumatic applications for industrial or general use. Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Solenoid valve 3/8 3/2 bistable series 01V | Aignep | ADAJUSA | price

Solenoid valves 3/8

Solenoid valve 3/8 3/2 bistable - Aignep

€65.72 (€54.77 tax excl.)

3/8 3- way bistable Solenoid valve (coils not included), with G3/8" threads, anodized aluminum body, NBR seals. Reference: 01VS130004 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Solenoid valve 3/8 3/2 NO monostable series 01V | Aignep | ADAJUSA | price

Solenoid valves 3/8

Solenoid valve 3/8 3/2 monostable NO - Aignep

€56.09 (€46.74 tax excl.)

3/8 3- way monostable Solenoid valve NO (coils not included), with G3/8" threads, anodized aluminum body, NBR seals. Reference: 01VS03NO04 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Solenoid valve 3/8 5/3 exhaust centers 230 Vac - Metal Work - ADAJUSA

Solenoid valve 3/8 5/3 exhaust centers 230 Vac - Metal Work - ADAJUSA 2

Pack

Solenoid valves 3/8

Solenoid valve 3/8 5/3 assisted exhaust centers 230 Vac - Metal Work

€140.98 (€117.48 tax excl.)

3/8" 5-way, 3-position assisted solenoid valves, exhaust centers, metal body, with 230Vac connector and coil. For pneumatic applications for industrial or general use. Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Solenoid valve 3/8 5/3 pressure centers - Metal Work - ADAJUSA

Solenoid valves 3/8

Solenoid valve 3/8 5/3 pressure centers - Metal Work

€137.90 (€114.92 tax excl.)

1/8" 5-way, 3-position solenoid valves,pressure centers, metal body, for pneumatic applications for industrial or general use. Reference: 7040022300 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Solenoid valve 3/8 5/3 assisted closed centers 24Vca - Metal Work - ADAJUSA

Solenoid valve 3/8 5/3 assisted closed centers 24Vca - Metal Work - ADAJUSA 2

Pack

Solenoid valves 3/8

Solenoid valve 3/8 5/3 assisted closed centers 24 Vac - Metal Work

€158.33 (€131.94 tax excl.)

Solenoid valves of 3/8" of 5 ways and 3 positions assisted, closed centers, metal body, with connectors and coil of 24 Vac. For pneumatic applications for industrial or general use. Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Solenoid valve 3/8 5 ways bistable- Mindman S.300 - ADAJUSA

Delivery in 3 days

Solenoid valves 3/8

Solenoid valve 3/8 5 ways bistable 230Vca - Mindman S.300

€98.59 (€82.16 tax excl.)

Pneumatic solenoid valve of 3/8" 5 ways bistable,operating voltage of 230Vca. Reference: 281MVSE3004E21Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Solenoid valve coil 220VAC Metal Work W0215000031 Price adajusa

Accessories for solenoid valves

Solenoid valve coil 230Vac 5VA T22 diameter 8 - Metal Work

€8.78 (€7.32 tax excl.)

Coil for solenoid valve size 22mm, voltage 220 - 240Vca., with a consumption of 5VA, for cores of Ø8mm. Manufactured by Metal Work and valid for solenoid valves with 8mm actuator core.Reference: W0215000031 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Electrical connector solenoid valve size 22 CON0100001 Aignep: ADAJUSA : price

Accessories for solenoid valves

Connector solenoid valve size 22 - Aignep

€1.44 (€1.20 tax excl.)

Electrical connector for solenoid valve size 22mm, black color. Reference: CON0100001 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

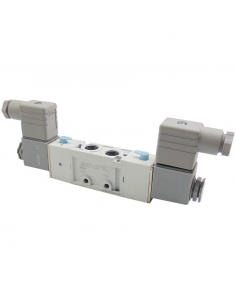

Solenoid valve 3/8 5 ways 3 positions pressure 230Vac Mindman - ADAJUSA
