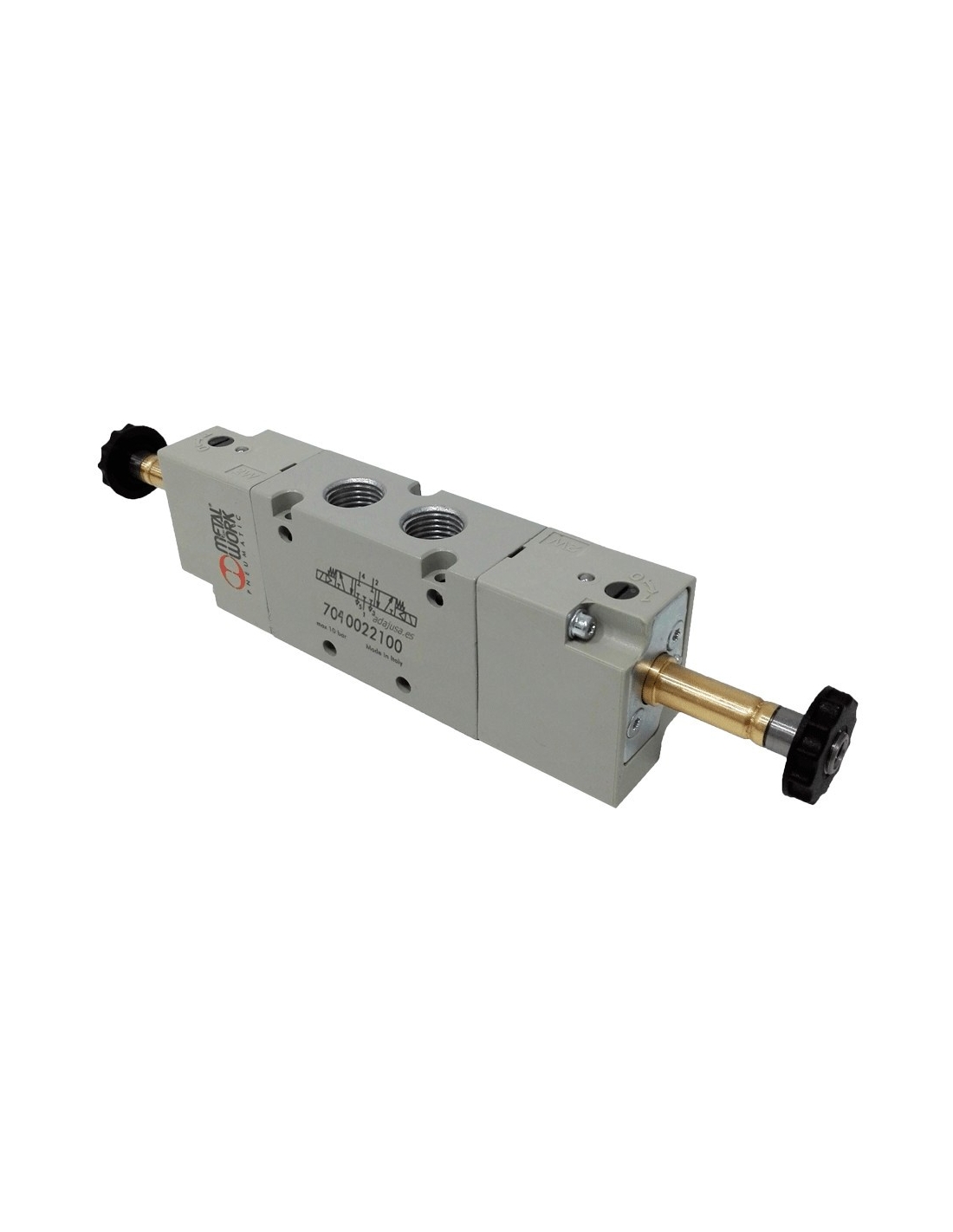

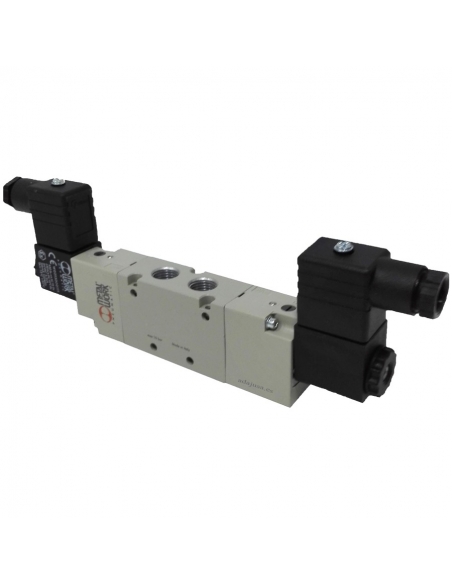

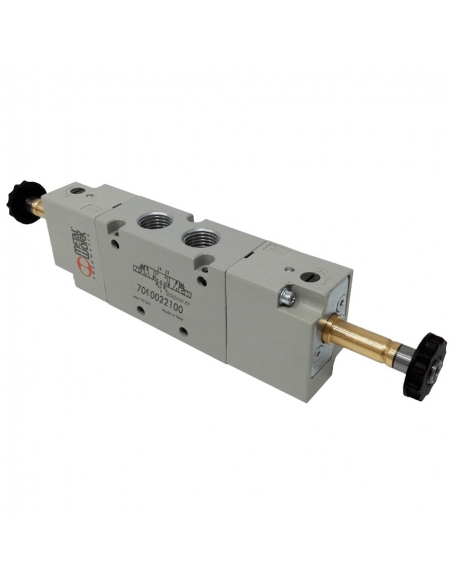

Solenoid valve 3/8 5/3 exhaust centers 230 Vac - Metal Work

Solenoid valves of 3/8" of 5 ways and 3 positions, exhaust centers, metal body, for pneumatic applications of industrial or general use, the most common application is of control of cylinders of double effect.

The solenoid valve has 3 positions with 2 coils, if a coil is fed the cylinder advances, if both coils are left without tension, the cylinder stops but the air is kept in the circuit, with which the cylinder maintains the pressure (force) and if the other coil is fed, the cylinder is collected.

The supply includes:

• Solenoid valve 3/8" 5/3 exhaust centers
• 2 Coils 230 Vac 3.5 VA
• 2 T22 connectors

Characteristics:

• Provider: Metal Work
• Solenoid valve reference: 7040022200 - SOV C6 SOS OC
• Operating pressure: 2.5 ÷10 bar
• Minimum assist pressure: 2.5 bar
• Operating temperature: -10 ÷ +60
• Nominal diameter: 13.3 mm
• Conductance C Nl/min · bar: 505.52
• B bar/bar critical ratio: 0.32
• Flow rate at 6 bar ΔP 0.5 bar Nl/min: 1560
• Flow rate at 6 bar ΔP 1 bar Nl/min:2150
• Monostable TRA/TRR at 6 bar ms: 21/72
• Bistable TRA/TRR at 6 bar ms: 18/18
• Coil voltage: 220 - 240 Vac
• Power: 3.5 VA
• Voltage tolerances %: -10 ÷ +15

Material for professional use, install in compliance with the regulations in force at the place of installation.
