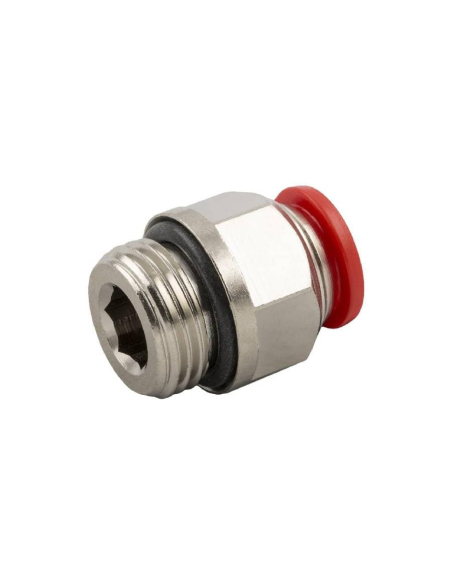

Straight automatic straight fitting M5 tube 4mm Series 50000 - Aignep

€1.28 Tax included

€1.06 tax excl.

Straight male cylindrical fitting with M5 thread for 4mm pipe with gasket, made of chrome-plated brass . Very efficient connection simple that allows reconnection thousands of times without compromising the perfect pneumatic and mechanical retention.

Series: 50000
Reference: 50020 4 M5




aignep
normativa


Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!


Straight cylindrical male fitting with M5 thread for 4mm pipe with gasket, made of chrome-plated brass. Very efficient connection simple that allows reconnection thousands of times without compromising the perfect pneumatic and mechanical retention; the clamping spring, clamps the tube without engraving or deforming it, thus allowing greater simplicity in the operation of connecting or disconnecting the fitting from the tube. On the fittings, the ring of the fitting is equipped with a screwdriver's slots to facilitate the disconnection in applications inaccessible to the fingers.

Technical characteristics:

  • Manufacturer: Aignep.
  • Part number: 50020 4 M5
  • Thread: M5
  • Outer tube diameter: 4mm.
  • Fluid: Vacuum - Compressed air.
  • Working pressure: -0,99 bar at 20 bar.
  • Material: Chrome-plated brass.
  • Tube extractor ring: acetal resin
  • Seal of retention: NBR.
  • Clamping spring: stainless steel.
  • Working temperature: -20ºC to +80ºC.
  • Thread standard
    • Gas conical according to ISO 7.1, BS 21,DIN 2999
    • Gas cylindrical in accordance with ISO 228 Class A
    • Metric according to ISO R/262

50020 Esq

50020 Tab

Material for professional use, install in compliance with the regulations in force at the place of installation.
