Three-phase motor 5.5Kw 7.5CV 400/690V 1000 rpm IE1 Flange B14 aluminum housing
Three-phase motor 5.5Kw 7.5CV 400/690V 1000 rpm IE1 Flange B14 aluminum housing

Three-phase motor 5.5Kw 7.5HP 400/690V 1000 rpm IE1 Flange B14 aluminum housing

€597.57 Tax included

€493.86 tax excl.

Three-phase electric motor 5.5kW (7.5HP) 400/690Vac, 1000 rpm (6 Poles), Flange B14, aluminum housing. Manufactured under European IEC regulations.

  • Voltage: 400/690Vac 50/60Hz.
  • Number of poles: 6.
  • Revs: 1000 rpm.
  • Flange: B14.
  • Shaft diameter: 38mm.
  • Flange diameter: 200mm.
  • Power: 5.5Kw - 7.5hp.
  • Size: 132.
  • Energy efficiency: IE1

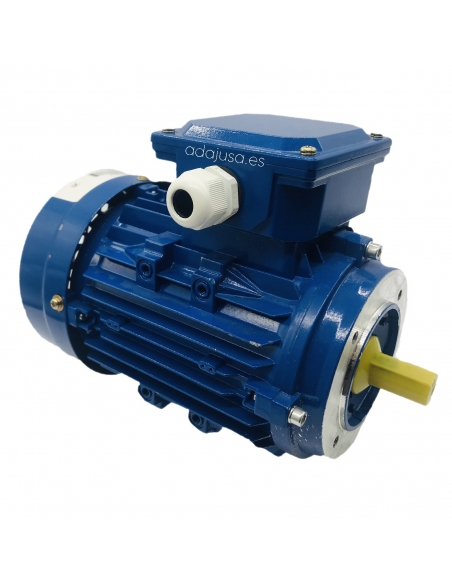

Representative image for illustrative purposes, the article supplied shall correspond to the specifications indicated.

No queries yet, leave the first!


Three-phase electric motor 5.5kW (7.5HP) asynchronous 400/690V 1000 rpm Flange B14. Aluminum housing.
Standardized three-phase electric motors for general purposes, manufactured under European IEC standard in aluminum with removable foot . Windings in enameled copper with class F insulation. The execution of the housing is closed, it has a retainer on the output shaft that gives it a degree of protection IP55.

characteristics:

  • Manufacturer/Importer: Motorseg
  • Reference: SS-132M2-6 B14 4/6
  • Motor type: asynchronous squirrel cage.
  • Efficiency: IE1
  • Voltage: 400/690 V. III.
  • number of poles: 6.
  • Speed: 1000 (970).
  • Power: 5.5Kw (7.5HP).
  • Current: 11.5/6.6A
  • Yield: 85.6%
  • Continuous service: S1
  • Degree of protection: IP55.
  • Clamping type: Flange B14.
  • Shaft diameter: Ø38mm
  • Flange diameter: Ø200mm
  • Flange PAM: 200/38
  • Housing size 132 (132M2).
  • Color: Blue.
  • Housing material: Aluminum.
  • Weight: 58 Kg
  • CE marking.

For more information, other powers or executions consult.
As in any asynchronous electric motor, the installation of a motor circuit breaker is mandatory to avoid overload damage.

Tabla motores B5-B14 aluminio


To expand the information you can download the technical sheet by clicking on the "Attachments" tab. Material for professional use, install in compliance with current regulations at the place of installation.

Engine intended to be used exclusively as a spare part for machinery and / or automatic systems.
