Three-phase motor 4Kw 5.5CV 230/400V 1000 rpm IE1 Flange B14
Three-phase motor 4Kw 5.5CV 230/400V 1000 rpm IE1 Flange B14

Three-phase motor 4Kw 5.5HP 230/400V 1000 rpm IE2 Flange B14

€525.49 Tax included

€434.29 tax excl.

Three-phase electric motor 4kW (5.5HP) 230/400V 1000 rpm (6 Poles) Flange B14, aluminum housing. Manufactured under European IEC regulations.

  • Voltage: 230/400Vac 50/60Hz.
  • number of poles: 6.
  • Revolutions: 1000 rpm.
  • Flange: B14.
  • Shaft diameter: 38mm.
  • Flange diameter: 200mm
  • Power: 4Kw - 5,5HP.
  • Size: 132.
  • Energy efficiency: IE2

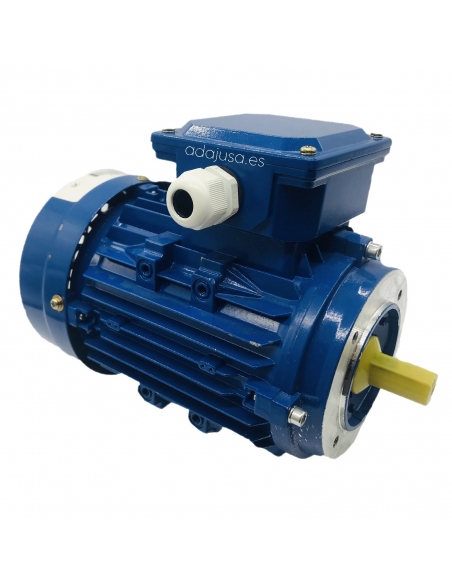

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!


Three-phase electric motor 4kW (5.5HP) 230/400V 1000 rpm Flange B14. Made of cast aluminum.
Standardized three-phase electric motors for general purposes, manufactured under European IEC standard in aluminum with removable foot . Windings in enameled copper with class F insulation. The execution of the housing is closed, it has a retainer on the output shaft that gives it a degree of protection IP55.

characteristics:

  • Manufacturer/Importer: Motorseg/ALREN
  • Reference: ALH132M6AB144E2
  • Motor type: asynchronous squirrel cage.
  • Efficiency: IE2
  • Voltage: 230/400 V. III. 50/60 Hz.
  • number of poles: 6.
  • Revolutions: 1000 (965).
  • Power: 4 Kw (5.5 hp).
  • Intensity: 16/8.9 A.
  • Yield: 82.3%
  • Continuous service: S1.
  • Degree of protection: IP55.
  • Clamping type: Flange B14
  • Shaft diameter: Ø38mm
  • Flange diameter: 200mm
  • Housing size 132 (132M).
  • Flange PAM: 200/38
  • Color: Blue.
  • Housing material: Aluminum.
  • Weight: 52 Kg.
  • CE marking.

For more information, other powers or executions consult.
As in any asynchronous electric motor, the installation of a motor circuit breaker is mandatory to avoid overload damage.

Tabla motores B5-B14 aluminio

To expand the information you can download the technical sheet by clicking on the "Attachments" tab. Material for professional use, install in compliance with current regulations at the place of installation.

Engine intended to be used exclusively as a spare part for machinery and / or automatic systems.
