Three-phase motor 2.2Kw 3CV 230/400V 1000 rpm IE1 Flange B14
Three-phase motor 2.2Kw 3CV 230/400V 1000 rpm IE1 Flange B14

Three-phase motor 2.2Kw 3HP 230/400V 1000 rpm IE1 Flange B14

€333.79 Tax included

€275.86 tax excl.

Three-phase electric motor 2.2kW (3HP) 230/400V 1000 rpm (6 Poles) B14 flange, aluminum casing. Manufactured under European IEC regulations.

  • Voltage: 230/400Vac 50/60Hz.
  • number of poles: 6.
  • Revolutions: 1000 rpm.
  • Flange: B14.
  • Shaft diameter: 28mm.
  • flange diameter: 160mm
  • Power: 2.2Kw - 3HP.
  • Size: 112.
  • Energy efficiency: IE1

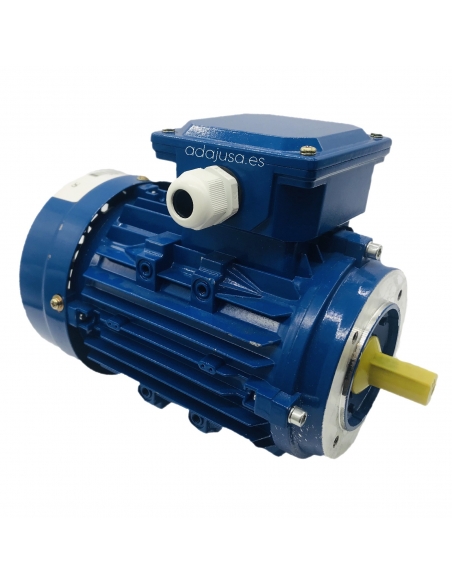

Representative image for illustrative purposes, the supplied article will correspond to the indicated specifications.

No queries yet, leave the first!


Three-phase electric motor 2.2kW (3HP) 230/400V 1000 rpm B14 flange. Made of cast aluminum.
Standardized three-phase electric motors for general use, manufactured under IEC European standards in aluminum with removable feet. Enameled copper windings with class F isolation . The execution of the casing is closed, it has a seal on the output shaft that gives it an IP55 degree of protection.

features:

  • Manufacturer/Importer: Motorseg
  • Reference: SS112M6144E1
  • Motor type: asynchronous squirrel cage.
  • Efficiency: IE1
  • Voltage: 230/400 V. III. 50/60Hz
  • number of poles: 6.
  • Revolutions: 1000 (940).
  • Power: 2.2 kW (3 hp).
  • Intensity: 9.7/5.6 A.
  • Yield: 80.5%
  • Continuous service: S1.
  • Degree of protection: IP55.
  • Fastening type: Flange B14
  • shaft diameter: Ø28mm
  • flange diameter: 160mm
  • Shell size 112 (112M).
  • PAM flange: 160/28
  • Color blue.
  • Housing material: Aluminum.
  • Weight: 27 Kg.
  • CE marking.

For more information, other powers or executions consult.
As in all asynchronous electric motors, the installation of a motor protection switch is motor circuit-breaker to avoid damage due to overload.

B5-B14 aluminum engine table


For more information, you can download the technical sheet by clicking on the "Annexes" tab. Material for professional use, install in compliance with the regulations in force at the place of installation.

Engine intended to be used exclusively as a spare part for machinery and/or automatic systems.
