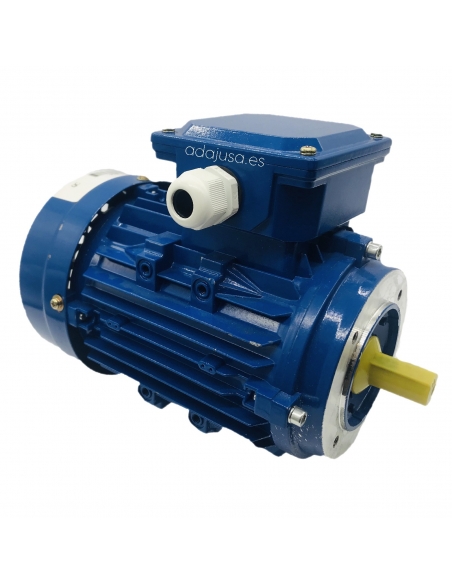

Three-phase motor 0.18Kw 0.25CV 230/400V 1000...
Three-phase motor 0.18Kw 0.25CV 230/400V 1000 rpm B14 flange aluminum casing

Three-phase motor 0.18Kw 0.25CV 230/400V 1000 rpm B14 flange aluminum casing

€99.39 Tax included

€82.14 tax excl.

Three-phase electric motor 0.18kW (0.25CV) 230/400Vac, 1000 rpm (6 Poles), B14 flange, aluminum housing. Manufactured under European IEC regulations.

  • Reference: SS-71M1-6 B14
  • Voltage: 230/400Vac 50/60Hz.
  • Number of poles: 6.
  • Revolutions: 1000 rpm .
  • Flange: B14.
  • Shaft diameter: 14mm.
  • flange diameter: 105mm.
  • Power: 0.18Kw - 0.25hp.
  • Size: 71.
  • Energy efficiency: IE1


Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

No queries yet, leave the first!


Three-phase electric motor 0.18kW (0.25CV) asynchronous 230/400V 1000 rpm Flange B14. Aluminum casing.
Standardized three-phase electric motors for general uses, manufactured under European IEC regulations in aluminum with removable legs. Enameled copper windings with class F insulation. The casing is closed and has a seal on the output shaft that gives it a degree of protection IP55.

characteristics:

  • Manufacturer/Importer: Motorseg
  • Reference: SS-71M1-6 B14
  • Motor type: squirrel cage asynchronous.
  • Efficiency: IE1
  • Voltage: 230/400 V. III.
  • number of poles: 6.
  • Speed: 1000 (880).
  • Power: 0.18 Kw (0.25 HP).
  • Current: 1.28/0.74A
  • Performance: 56%
  • Continuous service: S1
  • Protection degree: IP55.
  • Fastening type: B14 flange.
  • shaft diameter: Ø14mm
  • flange diameter: Ø105mm
  • Case size 71 (711).
  • PAM flange: 105/14
  • Color blue.
  • Housing material : Aluminum.
  • Weight: 5.6 Kg
  • CE marking.

For more information, other powers or executions, consult.

As with any asynchronous electric motor, the installation of a motor protector is mandatory to avoid damage due to overload.

Engine intended to be used exclusively as a spare part for machinery and/or automatic systems.

Material for professional use, install in compliance with the regulations in force at the installation site.
