Three-phase frequency converter 0.75 Kw vector series E - DELTA

€335.71 Tax included

€277.45 tax excl.

Three-phase frequency converter 400V 0.75Kw (1CV), RFI filter and remotizable programming panel. Integrated PLC.

Three-phase frequency converters allow the control and speed variation of standard three-phase motors in a simple and economical way.

Manufacturer : DELTA

Reference : VFD007E43T

Logotipo Delta

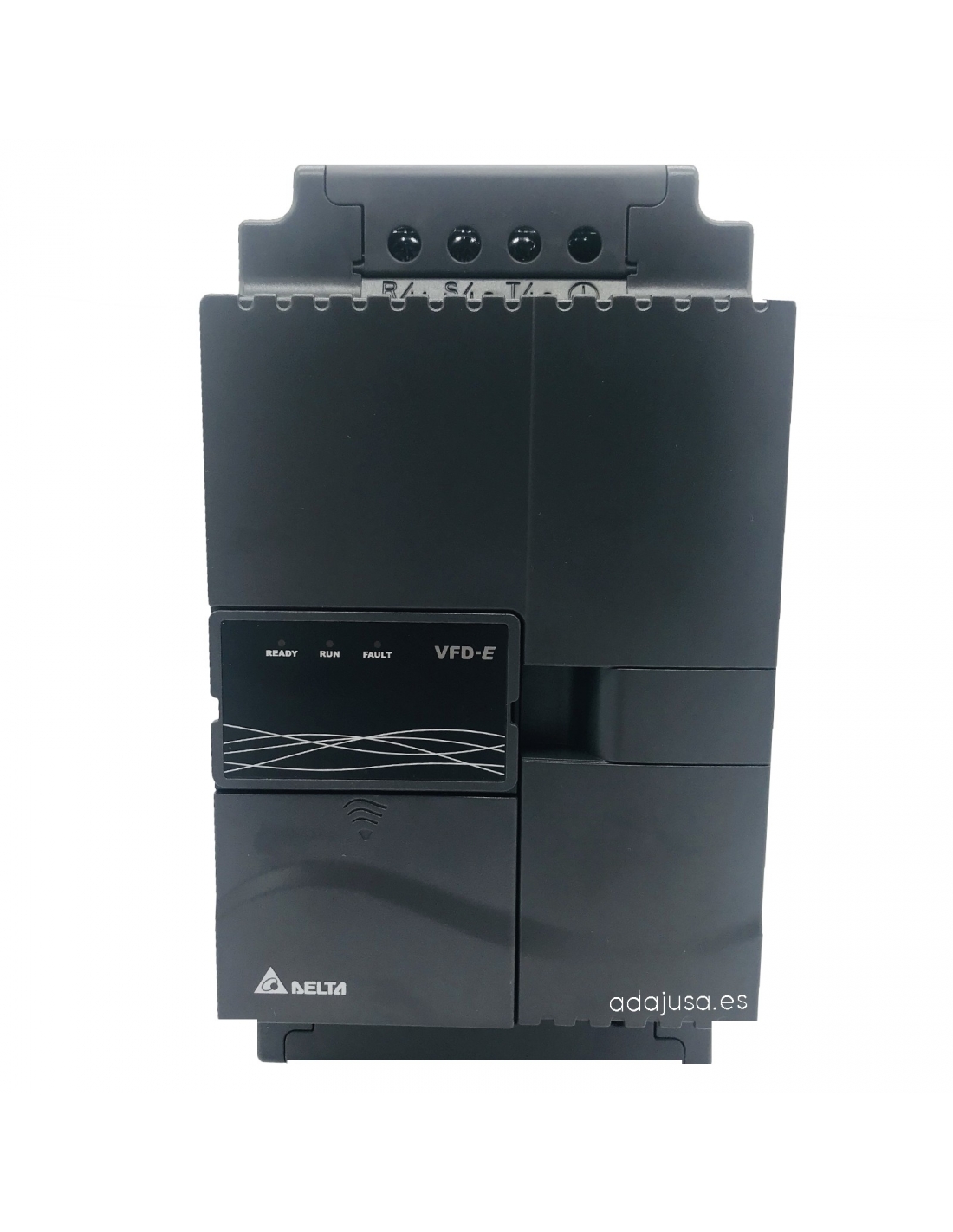

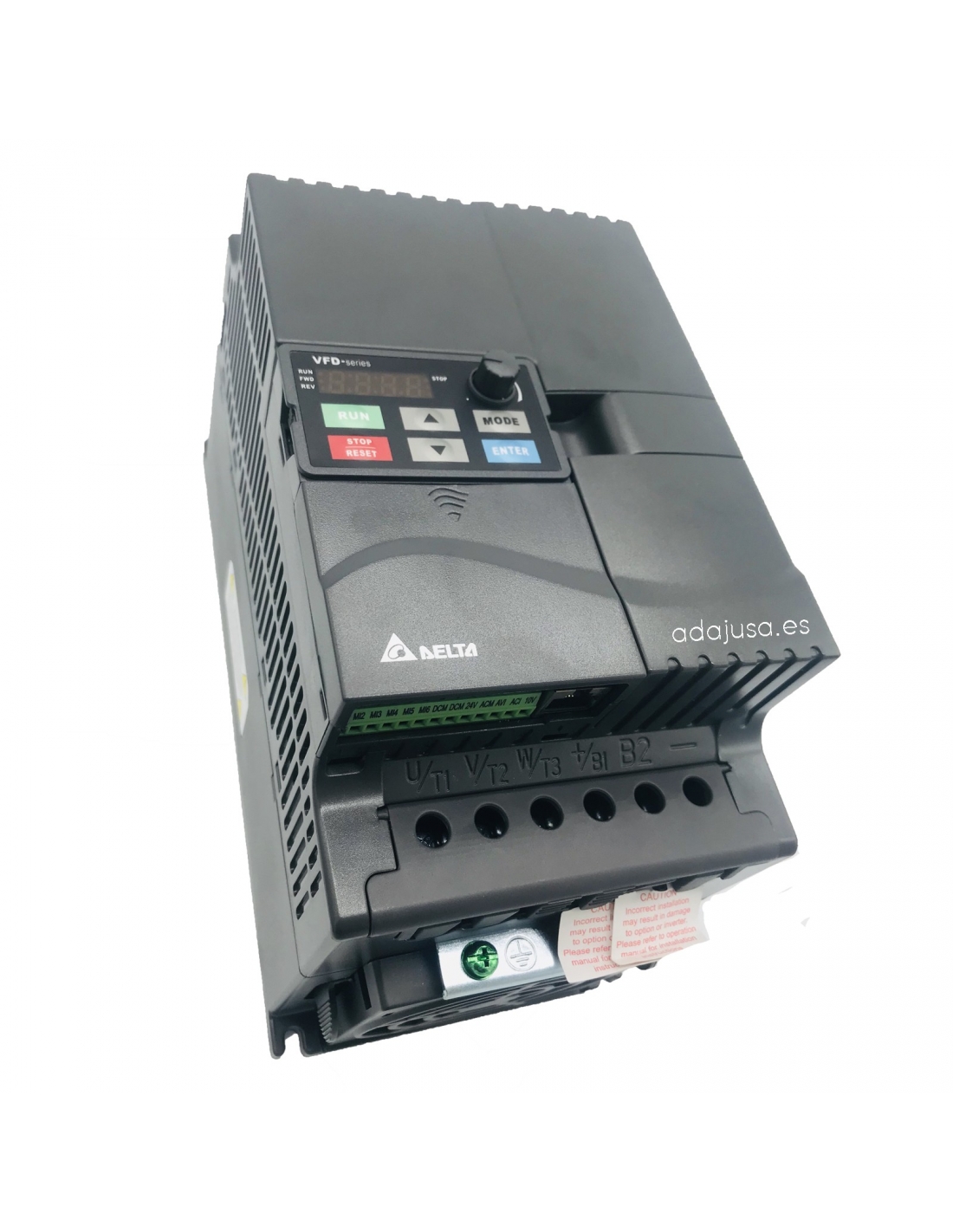

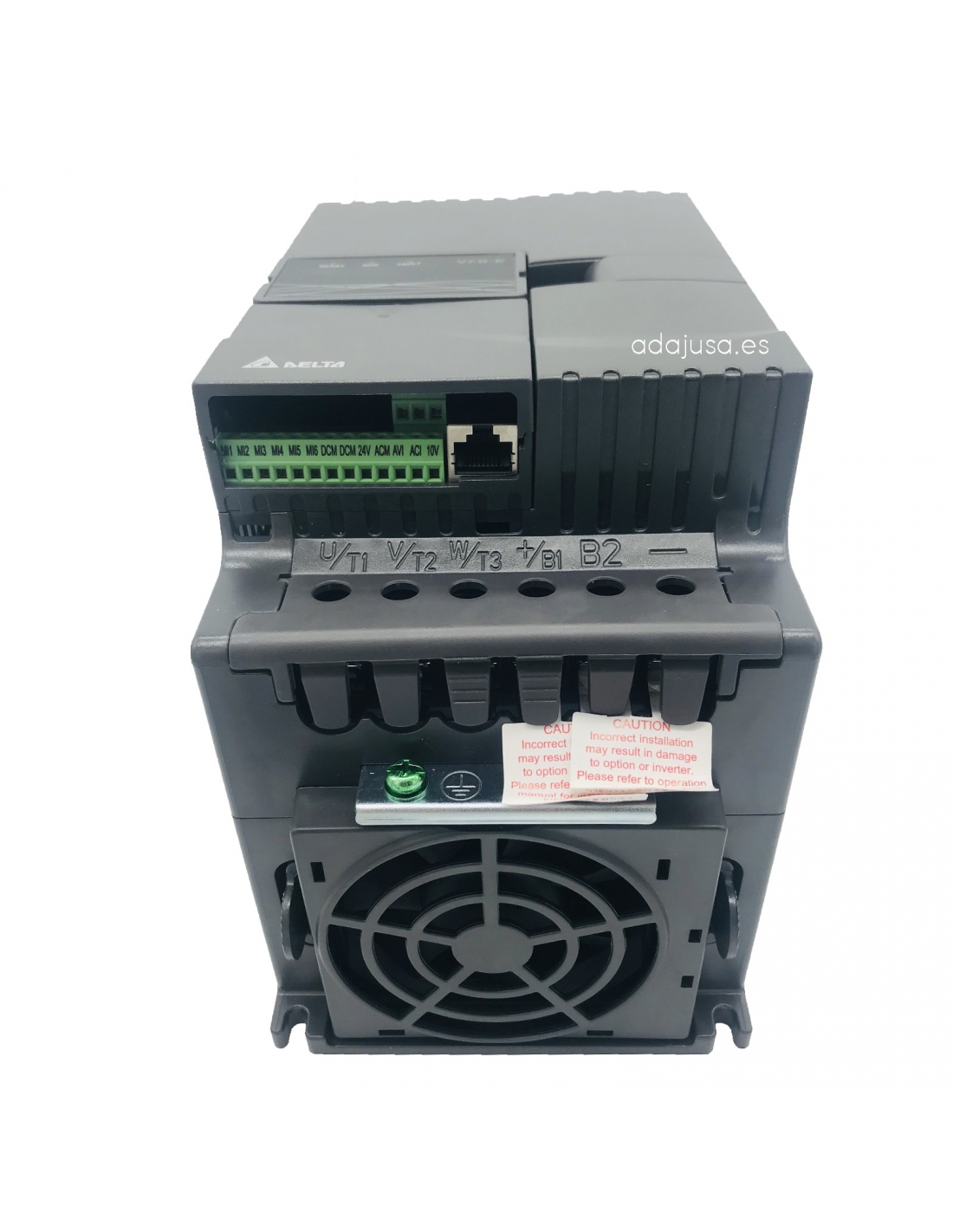

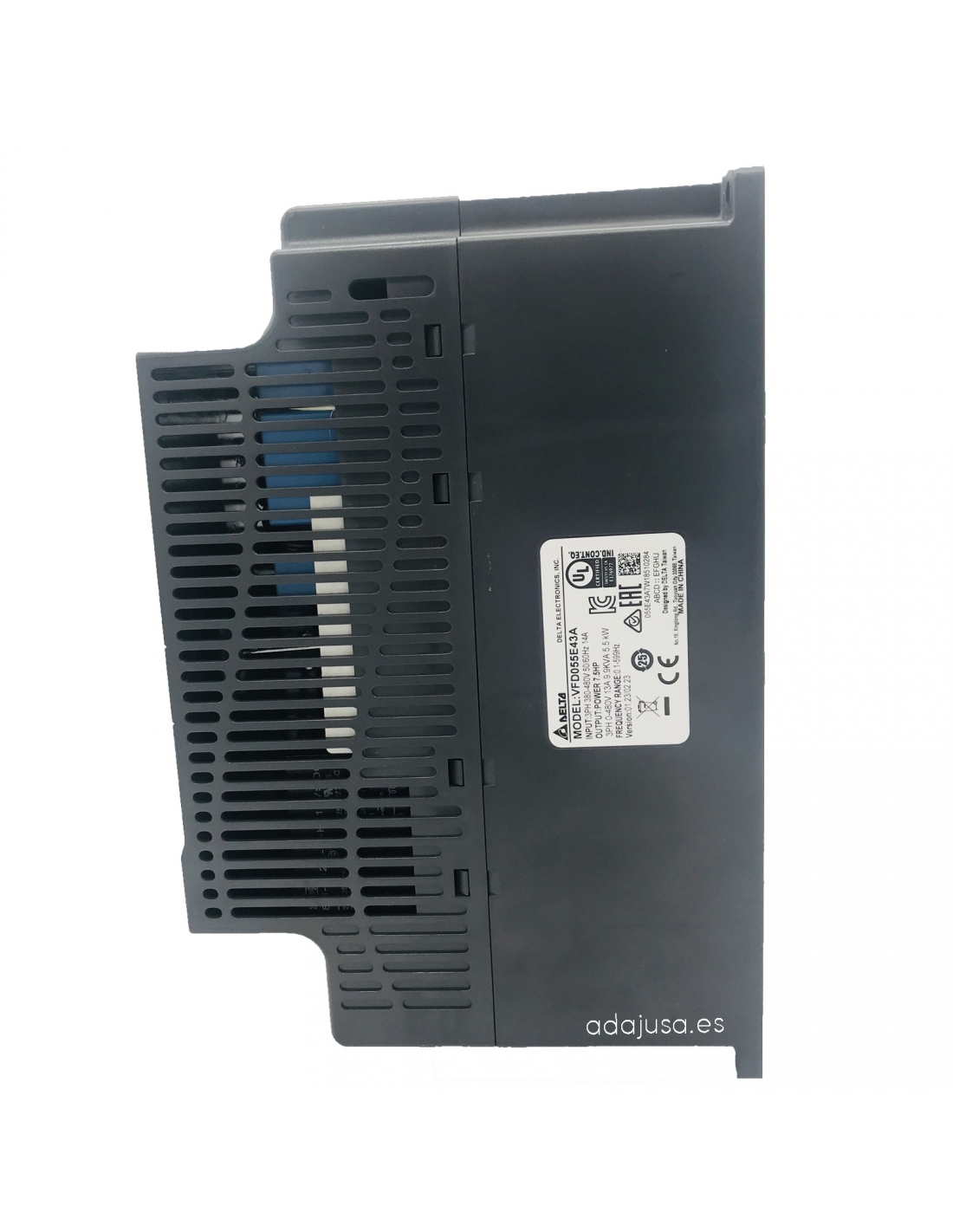

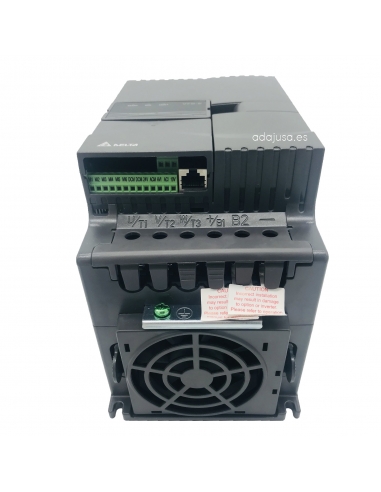

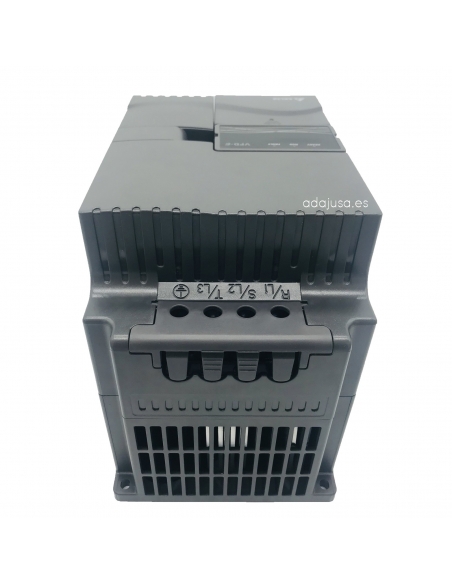

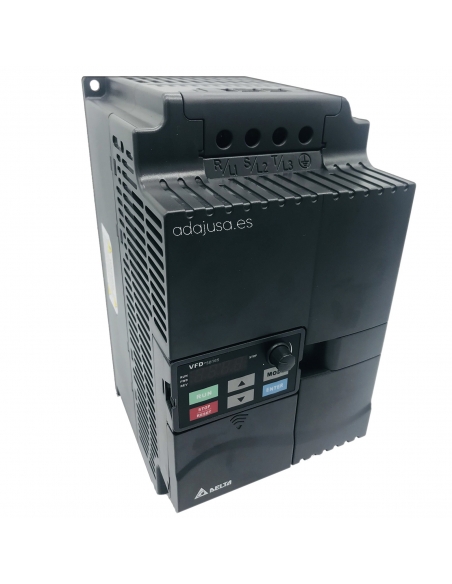

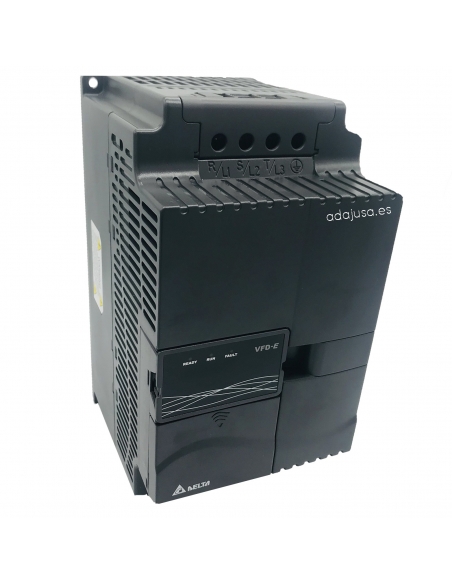

Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

No queries yet, leave the first!


Three-phase frequency converter 400V 0.75Kw (1CV), RFI filter and integrated programming panel.

Frequency converters allow control and speed variation of standard three-phase motors

This model of frequency converter already has a built-in RFI filter suitable for the CE market, to avoid electromagnetic interference that could occur with other electronic components.

On the front button, it incorporates all the necessary buttons for motor control and a potentiometer for speed regulation. it can also be controlled from pushbuttons and external potentiometer. The front button (control panel) is removable, that is, it can be separated from the frequency converter, and by cable (not included in the supply) fix it on a keypad. The supply includes the scheduling panel.

The frequency converter includes PLC (automaton) function, you can use the inputs and outputs of frequency converter. There are letters of extension of inputs and outputs.

The series of EL frequency converters of the DELTA brand incorporates:

  • Vector control (sensorless).
  • Potentiometer.
  • 15 Programmable speeds with activation by inputs.
  • possibility of PID control.
  • RS485 communication.
  • Integrated RFI filter.
  • Remotizable programming panel.
  • Built-in automaton.
  • Supports control of communication letters and inputs/outputs.
  • Includes braking module.

Summary of technical specifications:

  • Manufacturer: DELTA.
  • Manufacturer reference: VFD007E43T.
  • Nominal voltage/frequency: three-phase 380-480Vac +/-10% - 50/60Hz.
  • Max. motor power (Kw): 0,75.
  • Max. Engine Power (HP): 1.
  • Nominal output current (A): 2.5.
  • Rated frequency (Hz): 1.0 to 600.
  • Nominal input current (A): 3.2.
  • RFI Filter: Built-in.
  • Frequency tolerance +/- 5%.
  • Control system: SPWM (Sinusoidal modulation by pulse width. frec: 1Khz-15Khz. Vector control open loop (closed optional).
  • Torque characteristics: Including torque compensation and slip compensation, the starting torque can be 150% at 5Hz.
  • Overload capacity: 150% of the rated current for 1 minute.
  • Braking by injection of c.c.: Starting frequency 0.1 to 600Hz. Output from 0 to 100% of the nominal current. Duration: 0 to 60 sec.
  • Regenerative braking torque: 20% apróx (up to 125% with optional braking resistance or with external braking unit).
  • built-in braking module in class 230V equipment from 1.5Kw. braking module incorporated in class 460V equipment from 2.2 Kw.
  • Model V/F: Model V/F adjustable.
  • Lock protection level: Adjustment from 20 to 250% of the rated current.
  • Frequency adjustment: by means of keys, potentiomentro or external signals.
  • Start/stop signal: using external keys or signals.
  • Multifunction input signal.
  • Multifunction output indicator.
  • Optional input and output expansion cards.
  • Integrated PLC.
  • Protection: Self-diagnosis, overvoltage, overcurrent, low voltage, overload, overheating, external failure, electronic thermal current, ground leakage, short circuit in IGBT, PTC.
  • Cooling: natural ventilation.
  • Programming and control panel: detachable from the unit.
  • Dust protection: Grade 2.
  • Dimensions: Height 142mm x Width 72mm x Depth 152 mm.

Other powers or specifications consult.

Material for professional use, install in compliance with the regulations in force at the installation site.
