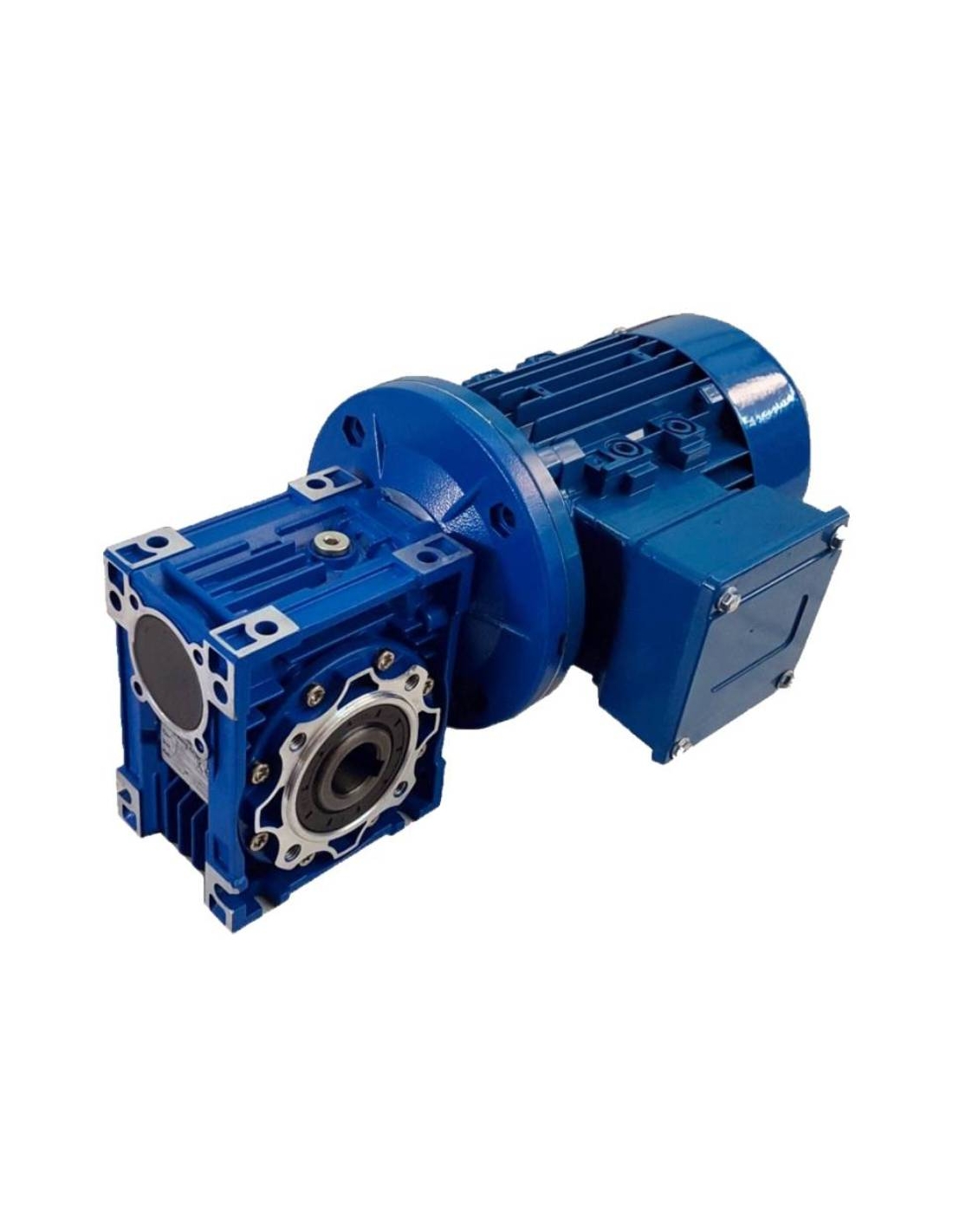

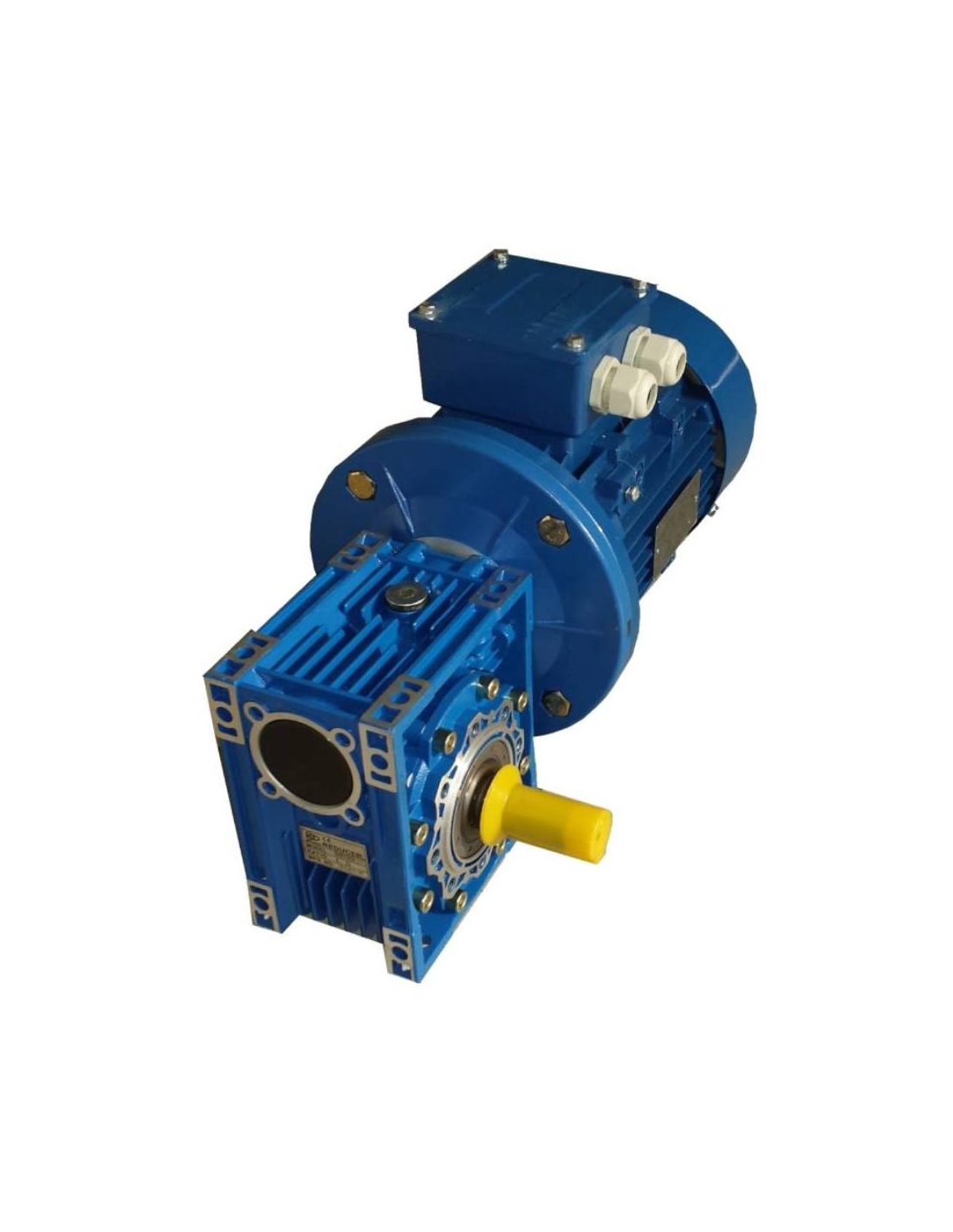

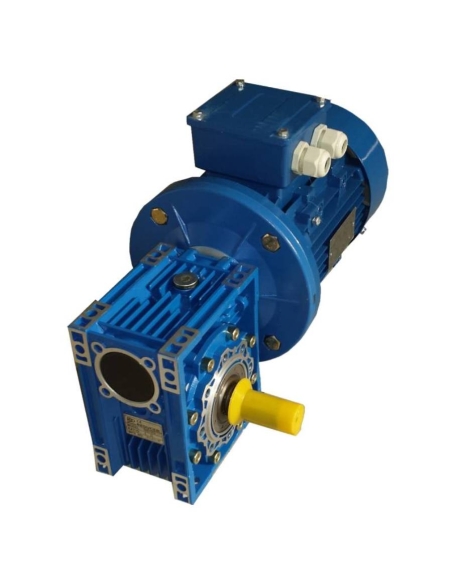

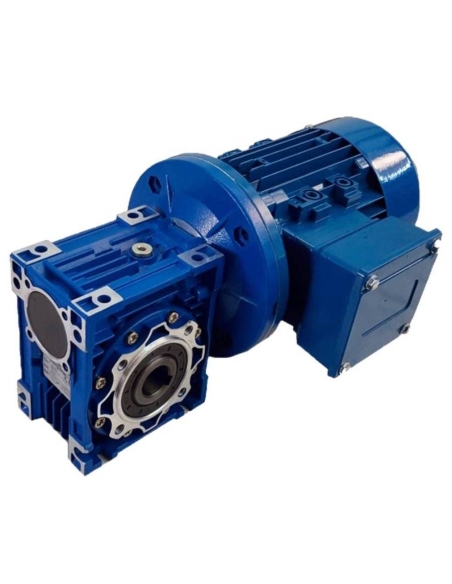

Three-phase gear motor 0.25kW 0.33hp 230/400Vac 1500 rpm ratio 100 T-63 (14 rpm)
Three-phase gear motor 0.25kW 0.33hp 230/400Vac 1500 rpm ratio 100 T-63 (14 rpm)
Three-phase gear motor 0.25kW 0.33hp 230/400Vac 1500 rpm ratio 100 T-63 (14 rpm)
Three-phase gear motor 0.25kW 0.33hp 230/400Vac 1500 rpm ratio 100 T-63 (14 rpm)

Three-phase Gear motor 0.25kW 0.33HP 230/400Vac 1500 rpm ratio 100 T63 (14 rpm )

€222.19 Tax included

€185.16 tax excl.

Three-phase Gear motor 0.25kW 0.33HP 230/400Vac B5, reducer size 63 with reduction ratio I:100 that allows output revolutions of approximately 14 rpm .

  • Motor: three-phase 0.25Kw 230/400Vac 1500 rpm
  • Reducer : size 63 I:100
  • For output shaft: Ø25 mm





Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

This pack contains

No queries yet, leave the first!
Privacy
Shipments
Returns


Three-phase Gear motor 0.25kW 0.33HP 230/400Vac, reducer size 63 with reduction ratio I:100 that allows an output of approximately 14 rpm at its output.

Engine technical characteristics:

  • Motor: Three-phase.
  • Nominal voltage: 230/400Vac 50/60Hz.
  • Nominal power: 0.25kW 0.33HP.
  • Revolutions: 1400 rpm .
  • Flanges: B5

Technical characteristics of the reducer:

  • Reducer type: worm gear.
  • Reducer size: 63.
  • Reduction ratio: 100
  • Final revolutions: 14 rpm .
  • Output torque: 8.4 Nm.
  • Service factor: 3.3
  • For output shaft: Ø25mm

The output shaft is not included in the supply and must be ordered separately. As with all asynchronous electric motors, it is mandatory to install a motor protection device to prevent damage due to overload.

Motor intended to be used exclusively as a spare part for machinery and/or automatic systems .

For further information you can download the technical sheet by clicking on the "Attached Files" tab.
Professional use material, install in compliance with the regulations in force at the installation site
