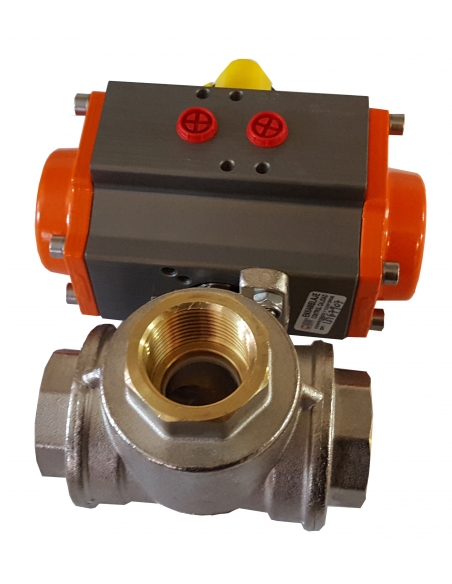

1/4 3/2-way "L" valve with pneumatic rotary actuator

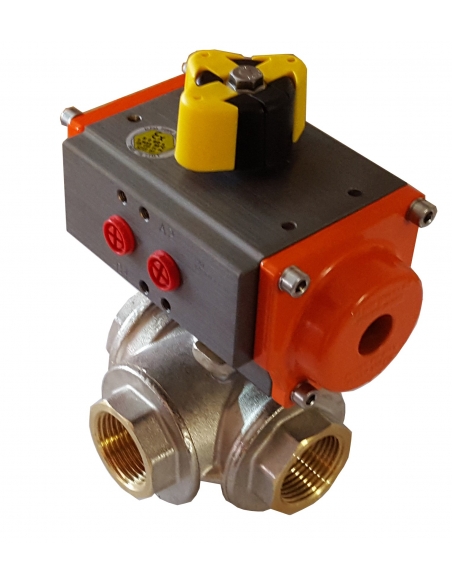

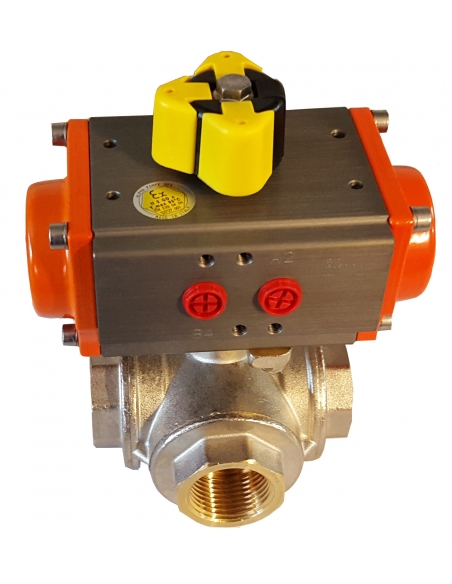

T-Valve 1 1/4 3/2-way stainless steel with pneumatic rotary actuator - Metal Work

Name: T-Valve 1 1/4 3/2-way stainless steel with pneumatic rotary actuator - Metal Work
Brand: Metal Work
SKU: VB3T2IA032063
Price: 438.18 EUR
Availability: PreOrder

€438.18 Tax included

€365.15 tax excl.

Valve of 1 1/4" in stainless steel dial, 3 ways 2 positions, 3/2, with configuration in "T", with double effect pneumatic rotary actuator. For control of air, gases or non-corrosive and non-flammable fluids. Valve made of stainless steel.

The valve has a manual activation control.

Valves with ATEX certification.

Reference: VB3T2IA032063D

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Privacy

Shipments

Returns

Description
Frequently questions

Valve of 1 1/4" dial, 3 ways 2 positions, 3/2, made of stainless steel, with configuration of the valve in "T", with double effect pneumatic rotary actuator. For control of air, water, gases or non-corrosive and non-flammable fluids.

On the pneumatic actuator there is a control to be able to act the valve manually.

The configuration of the valve is in "T", in one position, the valve allows the passage from 1 to 2 or 1 to 1 remaining the 3 closed; in the other position, the passage is allowed between all the tracks.

Valves with ATEX certification.

Diagrama válvula en T de 3 Vías

Specifications:

Assembly Manufacturer: Metal Work
Manufacturer reference: VB3T2IA032063D
Actuator type: Ø63 double pneumatic effect.
Valve type: 3 ways 2 positions (3/2).
Valve configuration: in "T".
Thread Type: G 1 1/4" Female
Valve body: AISI 316 stainless steel
Dial: Stainless steel AISI 316
Joints: PTFE.
Nominal pressure PN: 40 bar
Standard: ISO 5211 (direct mounting to the actuator)
Temperature: -20ºC to +80ºC

Dimensiones valvulas con actuador neumático de 3 vías

Esquema montaje válvula 3 vías en L con actuador

Material for professional use, install in compliance with the regulations in force at the place of installation.

Questions

Be the first to ask a question about this product!

Question about the product

Name ^*

Email ^*

Question ^*

^* Required fields

I have read and agree to the conditions of use (read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

Valve 1 1/4 2/2 ways with pneumatic rotary actuator - Metal Work

Metal Work

VB22LC032050D

€204.30 (€170.25 tax excl.)

Valve of 1" 1/4 of sphere, 2 ways 2 positions, 2/2, with double effect pneumatic rotary actuator. For control of air, water, gases or non-corrosive and non-flammable fluids. Valve body in nickel-plated brass. The valve has a manual activation control. Valves with ATEX certification. Reference: VB22LC032050D / W0900300106 Representative image for...

1/4 3/2-way "L" valve with pneumatic rotary actuator 2

Valves with pneumatic actuators

Valve 1 1/4 3/2 L-way with pneumatic rotary actuator - Metal Work

Metal Work

VB3L2LB032063

€428.89 (€357.41 tax excl.)

Valve of 1"1/4 of sphere, 3 ways 2 positions, 3/2, with configuration in "L", with pneumatic rotary actuator of double effect. For control of air, gases or non-corrosive and non-flammable fluids. Valve body in nickel-plated brass. The valve has a manual activation control. Valves with ATEX certification. Reference: VB3L2LB032063D / W0900300126...

Valves with pneumatic actuators

Valve 1 1/4 3/2 T-way with pneumatic rotary actuator - Metal Work

Metal Work

VB3T2LB032063

€415.97 (€346.64 tax excl.)

Valve of 1" 1/4 of sphere, 3 ways 2 positions, 3/2, with configuration in "T", with pneumatic rotary actuator of double effect. For control of air, gases or non-corrosive and non-flammable fluids. Valve body in nickel-plated brass. The valve has a manual activation control. Valves with ATEX certification. Reference: VB3T2LB032063D / W0900300136...

Valves with pneumatic actuators

Valve 1 1/4 3/2 way stainless steel L-shaped valve with pneumatic rotary actuator -...

Metal Work

VB3L2IA032063

€522.49 (€435.41 tax excl.)

Stainless steel 1" 1/4 ball valve, 3 way 2 positions, 3/2, "L" configuration, with double acting pneumatic rotary actuator. For control of air, water, gases or non-corrosive and non-flammable fluids. Stainless steel valve body. The valve has a manual activation control. Valves with ATEX certification. Part number: Z33VB3L2IA032063D/ W0900300085...

16 other products in the same category:

Valves with pneumatic actuators

Rotary actuator 75 - Metal Work

Metal Work

0D075GQ014DA

€185.95 (€154.96 tax excl.)

Pneumatic rotary actuator Ø75 of double effect, to act ball valves, butterfly, or any other type, with angle of rotation of 90º. The actuator allows easy coupling to valves in compliance with ISO 5211 - DIN3337. On the actuator can be fixed valves and solenoid valves STANDARD NAMUR for its action. Reference: W790D075GQ014DA ...

Valves with pneumatic actuators

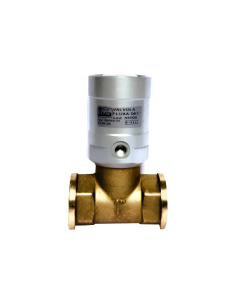

Compact fluid valve 2 NC with pneumatic actuator Fluxa series - Aignep

Aignep

51200

€164.17 (€136.81 tax excl.)

Compact seat valve, with simple acting pneumatic actuator , 60mm diameter, and normally closed (NC), with 2" thread. FKM joints. The actuator body is made of anodized aluminum alloy and is pneumatically actuated. The valve is manufactured in brass. Reference: 51200 Representative image for illustrative purposes, the item supplied will correspond to the...

Valves with pneumatic actuators

Angled seat valve 2 NC actuator in INOX diameter 90 - Aignep

Aignep

X1YXH10900

€382.54 (€318.78 tax excl.)

Normally closed (NC) simple acting inclined seat valve with 2" thread. PTFE gaskets which allow it to work in a wide range of temperatures in the fluid (-10ºC to +180ºC). The actuator body is manufactured in AISI 304 stainless steel and is pneumatically actuated. The valve can be installed in any mounting position, the body manufactured in the shape of a...

Valves with pneumatic actuators

Stainless steel T-valve 1/2 3/2-way with pneumatic rotary actuator - Metal Work

Metal Work

VB3T2IA015032

€220.75 (€183.96 tax excl.)

1/2" valve in stainless steel dial, 3 ways 2 positions, 3/2, with configuration in "T", with double effect pneumatic rotary actuator. For control of air, gases or non-corrosive and non-flammable fluids. Valve made of stainless steel. The valve has a manual activation control. Valves with ATEX certification. Reference: VB3T2IA015032D...

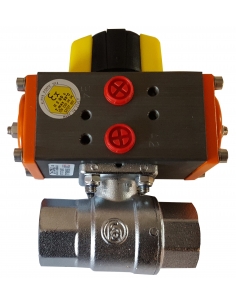

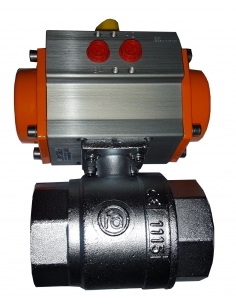

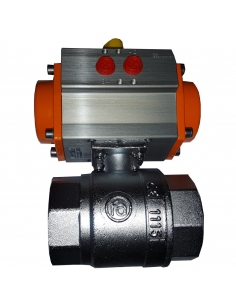

1/4 2/2-way valve with pneumatic rotary actuator

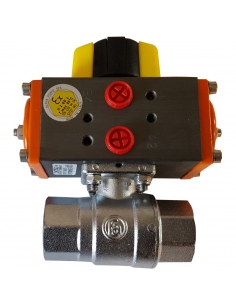

1/4 2/2-way valve with pneumatic rotary actuator 2

Valves with pneumatic actuators

1 2/2-way valve with pneumatic rotary actuator - Metal Work

Metal Work

VB22LC025050D

€193.72 (€161.43 tax excl.)

1" dial valve, 2-way 2-position, 2/2, with double-acting pneumatic rotary actuator. For control of air, water, gases or non-corrosive and non-flammable fluids. Valve body in nickel-plated brass. The valve has a manual activation control. Valves with ATEX certification. Reference: VB22LC025050D / W0900300105 Representative image for illustrative...

Valves with pneumatic actuators

Valve 1/4 2/2-way with pneumatic rotary actuator - Metal Work

Metal Work

VB22LC008032D

€136.03 (€113.36 tax excl.)

1/4" dial valve, 2-way 2-position, 2/2, with double-acting pneumatic rotary actuator. For control of air, water, gases or non-corrosive and non-flammable fluids. Valve body in nickel-plated brass. The valve has a manual activation control. Valves with ATEX certification. Reference: VB22LC008032D / W0900300101 Representative image for illustrative...

Valves with pneumatic actuators

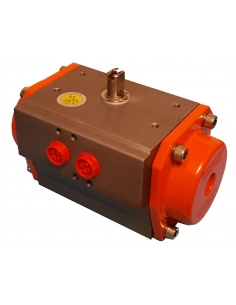

Rotary actuator diameter 50 F04 - Metal Work

Metal Work

0B050GQ011DA

€122.69 (€102.24 tax excl.)

Double effect pneumatic rotary actuator Ø50, to act ball valves, butterfly, or any other type, with anchorage F04 and angle of rotation of 90º. The actuator allows easy coupling to valves in compliance with ISO 5211 - DIN3337. On the actuator can be fixed valves and solenoid valves STANDARD NAMUR for its action. Reference: W790B050GQ011DA ...

Valves with pneumatic actuators

Compact valve for fluids 1/2 NC with pneumatic actuator Fluxa series - Aignep

Aignep

51012

€69.29 (€57.74 tax excl.)

Compact seat valve, with simple acting pneumatic actuator , diameter 35mm, and normally closed (NC), with 1/2 thread. Together at FKM. The actuator body is made of anodized aluminum alloy and is pneumatically actuated. The valve is made of brass. Reference: 51012 Representative image for illustrative purposes, the item supplied will correspond to the...

Valves with pneumatic actuators

2 2/2-way valve with pneumatic rotary actuator - Metal Work

Metal Work

VB22LC050063D

€274.49 (€228.74 tax excl.)

Valve of 2" sphere, 2 ways 2 positions, 2/2, with double effect pneumatic rotary actuator. For control of air, water, gases or non-corrosive and non-flammable fluids. Valve body in nickel-plated brass. The valve has a manual activation control. Valves with ATEX certification. Reference: VB22LC050063D / W0900300108 Representative image for...

Valves with pneumatic actuators

Stainless steel L-valve 2 3/2-way with pneumatic rotary actuator - Metal Work

Metal Work

VB3L2IA050063

€759.13 (€632.61 tax excl.)

Stainless steel valve with 2" dial, 3 ways 2 positions, 3/2, with "L" configuration, with double effect pneumatic rotary actuator. For control of air, water, gases or non-corrosive and non-flammable fluids. Valve body in stainless steel. The valve has a manual activation control. Valves with ATEX certification. Reference: VB3L2IA050063D...

Valves with pneumatic actuators

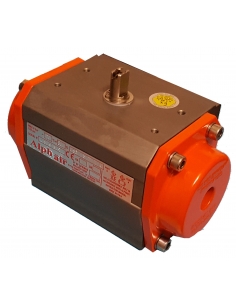

Rotary actuator 125 - Metal Work
