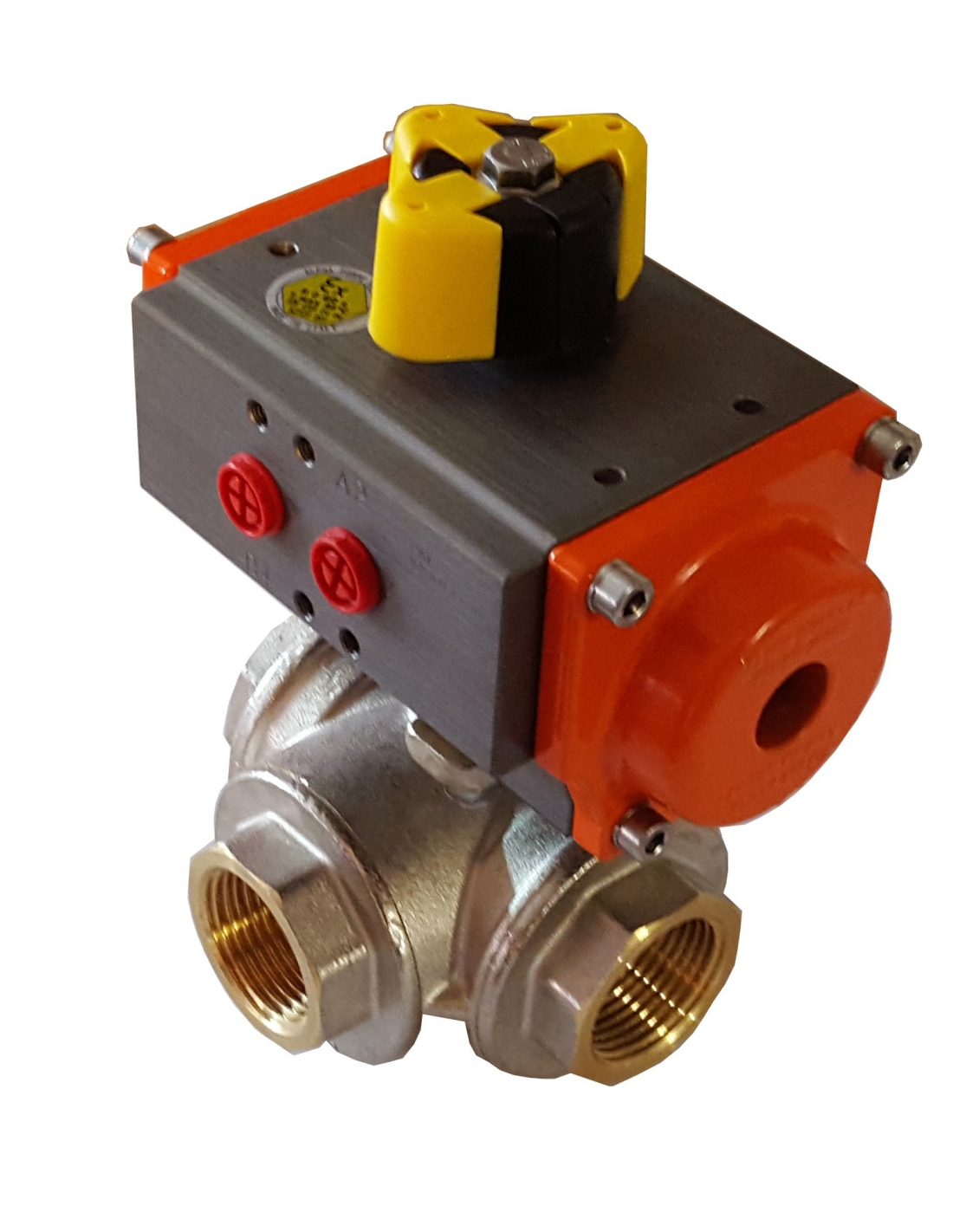

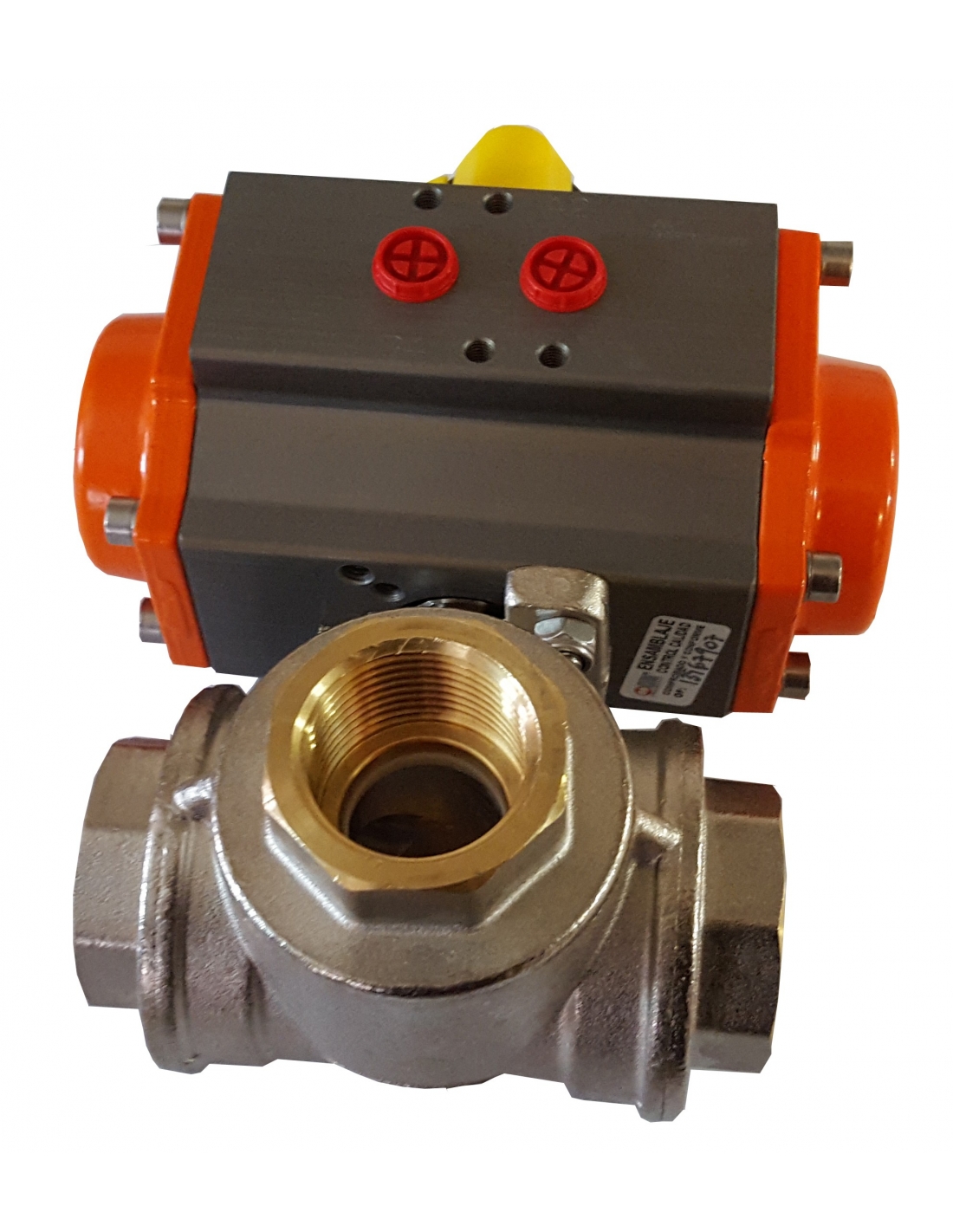

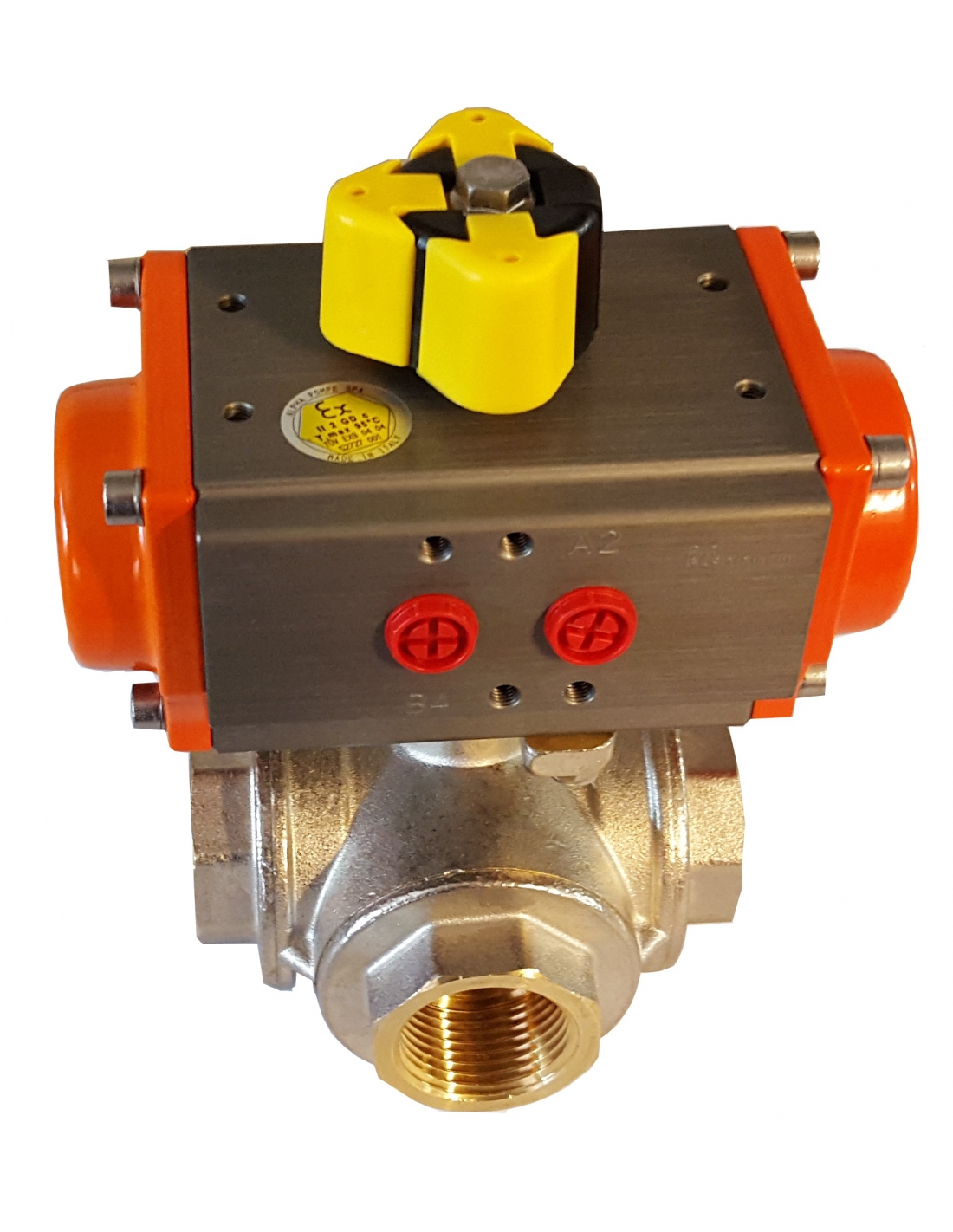

Valve 1 1/2 3/2 L-way with pneumatic rotary actuator - Metal Work

Name: Valve 1 1/2 3/2 L-way with pneumatic rotary actuator - Metal Work
Brand: Metal Work
SKU: VB3L2LB040063
Price: 554.28 EUR
Availability: PreOrder

€554.28 Tax included

€461.90 tax excl.

Valve of 1"1/2 of sphere, 3 ways 2 positions, 3/2, with configuration in "L", with pneumatic rotary actuator of double effect. For control of air, gases or non-corrosive and non-flammable fluids. Valve body in nickel-plated brass.

The valve has a manual activation control.

Valves with ATEX certification.

Reference: VB3L2LB040063D / W0900300127

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Privacy

Shipments

Returns

Valve of 1"1/2 sphere, 3 ways 2 positions, 3/2, with valve configuration in "L", with double effect pneumatic rotary actuator. For control of air, gases or non-corrosive and non-flammable fluids.

On the pneumatic actuator there is a control to be able to act the valve manually.

The configuration of the valve is in "L", in one position, the valve allows the passage from 1 to 2 or 1 to 1 remaining the 3 closed; in the other position, the step is allowed from 1 to 3 or from 3 to 1 remaining the 2 closed.

Valves with ATEX certification.

Diagrama válvula en L

Specifications:

Assembly manufacturer: Metal Work.
Manufacturer reference: VB3L2LB040063D / W0900300127
Actuator type: Ø63 double pneumatic effect (AP63).
Valve type: 3 ways 2 positions (3/2).
Valve configuration: in "L".
Thread type: G 1"1/2 female.
Valve body: nickel-plated OT58 brass.
Dial: Chrome OT58 brass.
Joints: PTFE.
Nominal pressure PN: 16 bar
Standard: ISO 5211 (direct mounting to the actuator)
Temperature: -20ºC to +80ºC

Dimensiones valvula 3 vias el L con actuador

Dimensiones valvulas con actuador neumático de 3 vías

Válvula en L con actuador neumático

Material for professional use, install in compliance with the regulations in force at the place of installation.
